60/14 Gemini High Flow Level Master™

Model # 989128

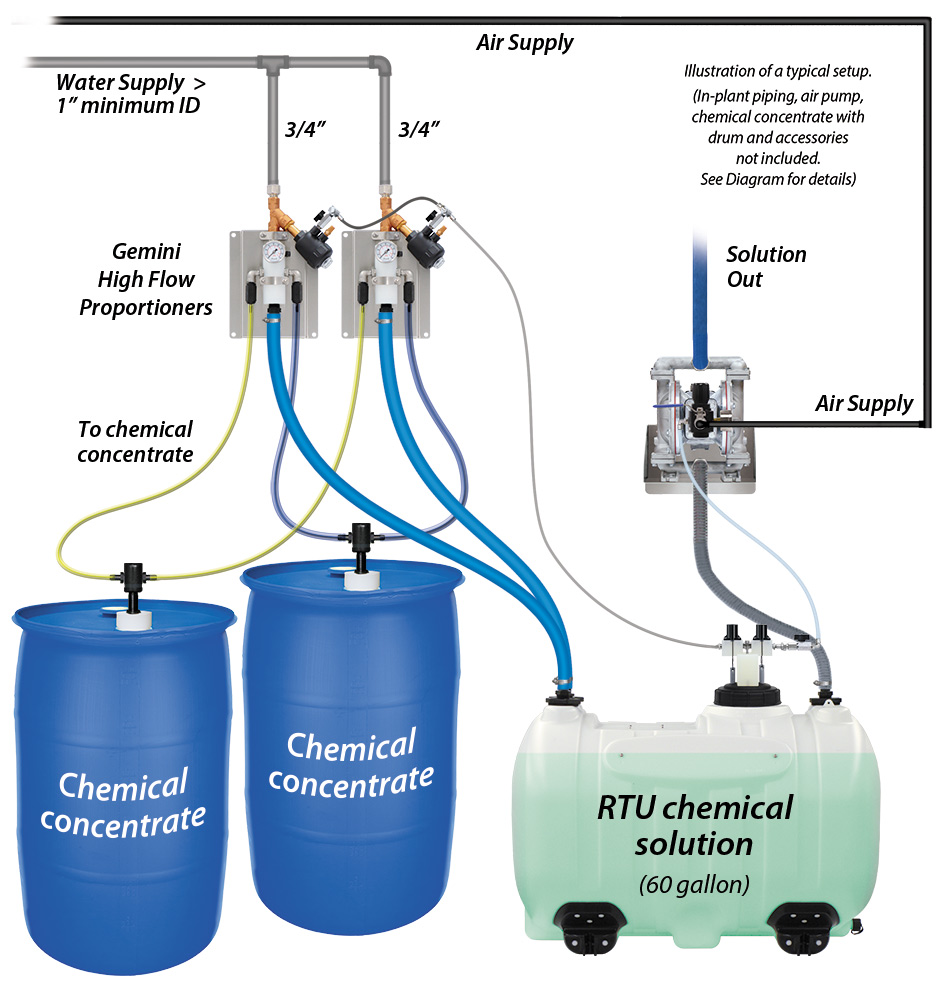

The 60/14 Gemini High Flow Level Master™ is a water driven chemical proportioner that will dilute and blend 2 chemicals and automatically refill the 60 gallon tank with ready-to-use chemical solution at 14 GPM @ 40 PSI. When the solution in the tank drops below a pre-set level, the float valve triggers an air-activated solenoid to start the water flow. The unique Gemini™ "double venturi" injection system combines two completely separated venturis in one injector body and uses city water pressure (35 - 125 PSI) to draw and blend 2 chemical concentrates into the water stream independently so that the chemicals never mix until they are diluted. The system cycles continuously and a secondary fail-safe float prevents overfilling.

Key Features
  • Automatically maintains a pre-set level of ready-to-use chemical solution in a 60 gallon tank
  • The unique Gemini™ proportioner draws 2 chemical concentrates and blends them downstream after dilution
  • Dilution ratios are controlled independently for each chemical using precision metering tips
  • Refills at 14 GPM @ 40 PSI to provide chemical for a central chemical feed system
  • Dual magnetic float valve design includes a primary valve to regulate normal operation and a secondary fail-safe valve to shut off the system if the primary float valve malfunctions
  • Unsinkable solid polypropylene floats suspended by rigid "push rods" ensure smooth operation and prevent the float valves from sticking in the open position
  • Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
  • Industrial-strength design holds up in tough environments
  • Available with a lower flow rate (#989126)
  • See all of our Level Master™ configurations and other Lafferty chemical management systems in Catalog 9

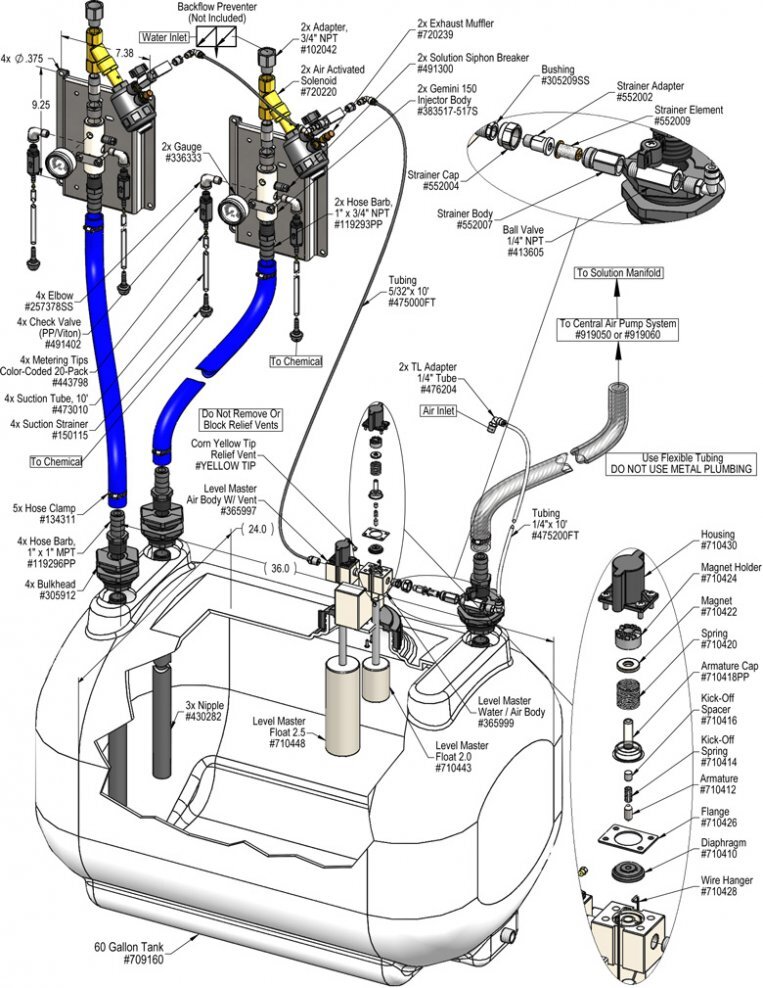

  • 60 gallon, heavy-duty, polyethylene chemical tank with drain
  • 2 magnetic float valves (primary and fail-safe) with solid polypropylene floats suspended by rigid CPVC push rods
  • Air inlet ball valve
  • 2 stainless steel Satellite Mixing Station mounting plates
  • 2 air-activated water solenoids
  • 2 machined polypropylene Gemini™ injector bodies
  • 2 sets of 20 color-coded precision metering tips
Chemical Concentrate
Temperature up to 160°F
Pressure 35-125 PSI
Flow 14 GPM @ 40 PSI
Supply Line 1'' Minimum
Dilution Ratio Range 1,600:1 to 9:1 @ 40 PSI
Stainless Steel Central Pump System
1" AODD Pump (Santoprene)# 919060SS
Teflon Upgrade# 710943
Drum & Tote Stick Lengths, Styles & Seal Materials
Drum Stick, 33" (Viton or EPDM)# 491643 / 491643-E
Drum Stick, 48" (Viton or EPDM)# 491648 / 491648-E
Drum Stick, 54" (Viton or EPDM)# 491645 / 491645-E
Tote Stick, 33" (Viton or EPDM)# 491653 / 491653-E
Tote Stick, 48" (Viton or EPDM)# 491654 / 491654-E
Tote Stick, 54" (Viton or EPDM)# 491656 / 491656-E
Alternate Check Valves - Viton Standard
Check Valve, Chemical, PP(W), 1/4" (EPDM)# 491401
Check Valve, Viscous Chemical, PP, 1/2" HB (EPDM)# 491403
