Central Pump System, Stainless Steel

Model # 919060SS

The Stainless Steel Central Pump System is a compressed air driven system that will pump neat or ready to use chemical solutions for a variety of applications. Used to transfer chemicals, fill vessels and feed remote Pump Fed Foamers or Sanitizing Hose Drop Stations. As a transfer system it will pump up to 35 GPM and as a central chemical feed system it will pump up to 25 GPM @ 65 PSI.  Santoprene diaphragms standard, Teflon optional.

Key Features
  • Designed to pump neat or ready-to-use chemical solutions for a variety of applications
  • Use this system in conjunction with a Level Master to ensure a constant supply of RTU chemical solution
  • When used as a transfer system, it pumps up to 35 GPM
  • As a central chemical feed system it pumps up to 25 GPM @ 60 PSI to drive Pump-Fed Foamers, Sanitizers, or Multifunction Hose Drop Stations throughout a facility
  • Heavy-duty metallic AODD pump with all stainless steel wetted components
  • Santoprene diaphragms (Teflon upgrade #710943)
  • See pump-fed chemical applicators in Catalog 5
  • For more information on building a centralized chemical management system, see our Pump Fed Central System Planning Tool


  • Stainless steel mounting bracket
  • Stainless steel compressed air ball valve
  • Air regulator with pressure gauge

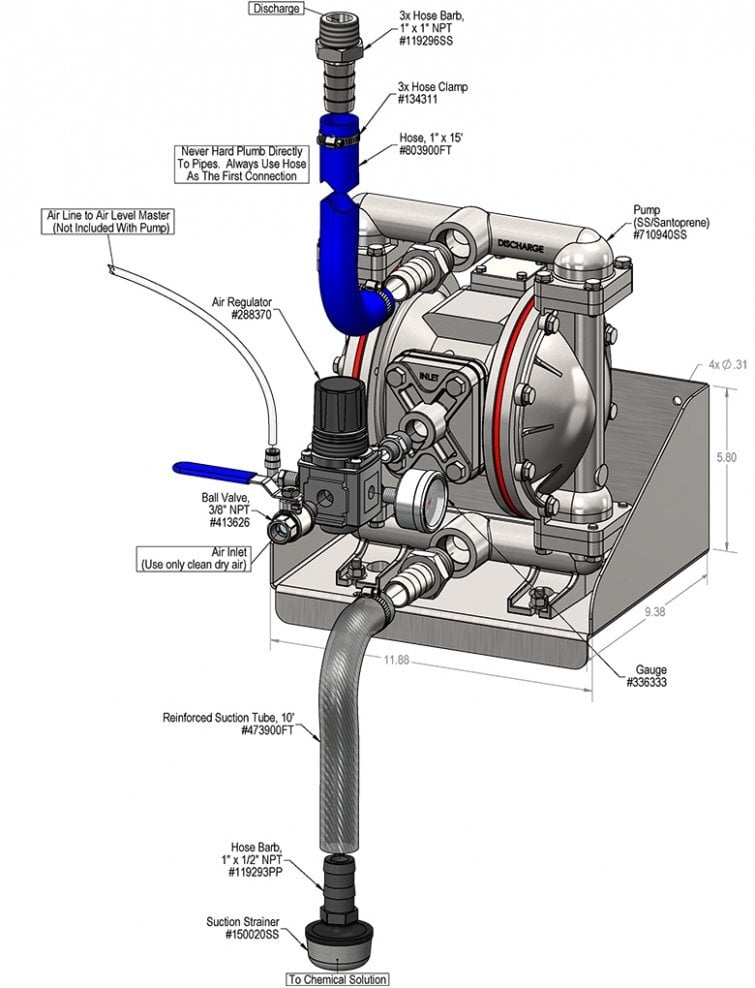

  • 1" AODD pump with Santoprene diaphragms and stainless steel wetted components
  • 10' chemical solution suction tube with strainer
  • 15' x 1" connection hose
Ready-to-Use Chemical Solution
Compressed Air up to 35 CFM
Hose 1" ID x 15'
Available with Teflon Diaphrams
Teflon Upgrade (Santoprene Standard)# 710943
Level Masters Provide an Automatic Supply
of Ready-to-Use Chemical
Level Master (Various Tank Sizes)# 989304
Gemini Level Master (Various Tank Sizes)# 989316
Drum & Tote Stick Lengths, Styles & Seal Materials
Drum Stick, 33" (Viton or EPDM)# 491643 / 491643-E
Drum Stick, 48" (Viton or EPDM)# 491648 / 491648-E
Drum Stick, 54" (Viton or EPDM)# 491645 / 491645-E
Tote Stick, 33" (Viton or EPDM)# 491653 / 491653-E
Tote Stick, 48" (Viton or EPDM)# 491654 / 491654-E
Tote Stick, 54" (Viton or EPDM)# 491656 / 491656-E
