Level Master™ (Single Float - No Tank)
General Purpose
Medium Volume
Polypropylene Body
Proportion and dispense
Venturi Dilution
Wall Mount / Stationary

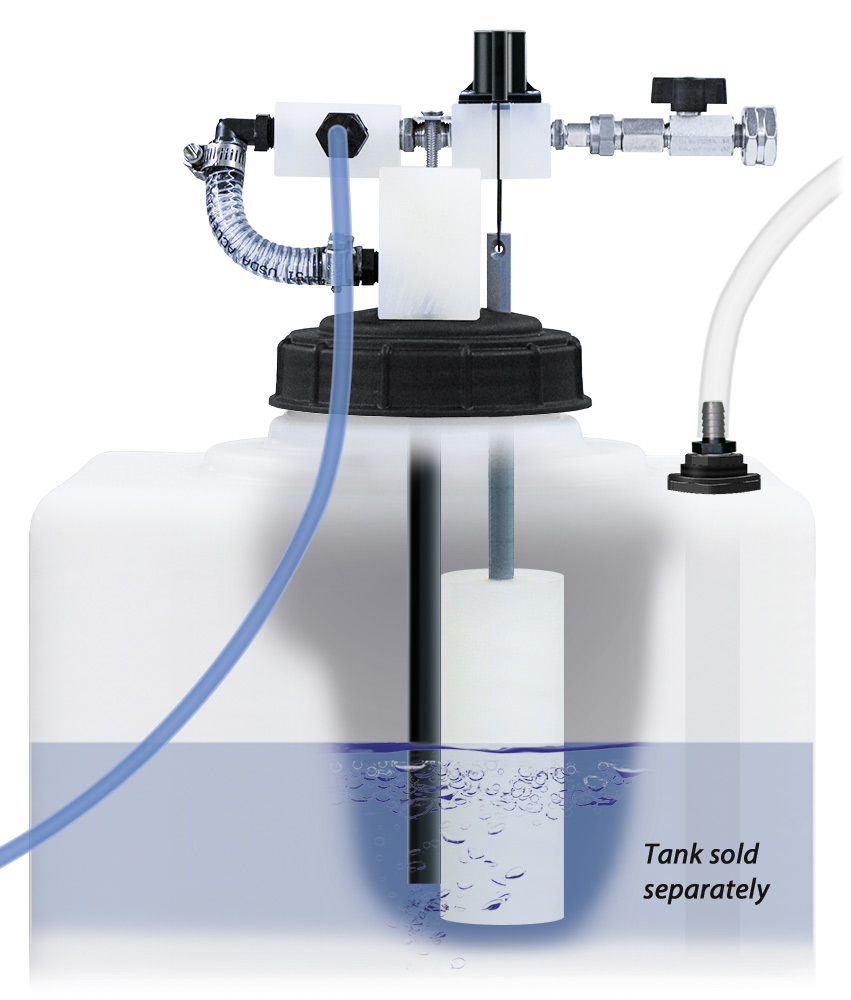

The Level Master™ (Single Float) is a water driven chemical proportioner that
automatically maintains a constant supply of ready-to-use solution in a
paired tank (sold separately). When the solution in the tank drops below a pre-set level,
this venturi injection system uses city water pressure (25 - 80 PSI) to
draw and blend chemical concentrate into the water stream to create an
accurately diluted solution using precision metering tips. The solution
replenishes at 2.4 GPM @ 40 PSI and cycles continuously.
Key Features
- Automatically maintains a pre-set level of ready-to-use chemical solution in a paired tank (sold separately, see options)
- Unsinkable solid polypropylene float suspended by a rigid "push rod" ensures smooth operation and prevents the float valve from sticking in the open position
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Downstream check valve prevents back-flow of liquid or vapor into the float valve to eliminate the potential for damage to internal components
- Industrial-strength design holds up in tough environments
- Paired tanks are available in several sizes and include a rigid suction tube and hose barb(s) to facilitate dispensing
- Available with a secondary fail-safe float (#989304)
- See all of our Level Master™ configurations and other Lafferty chemical management systems in Catalog 9

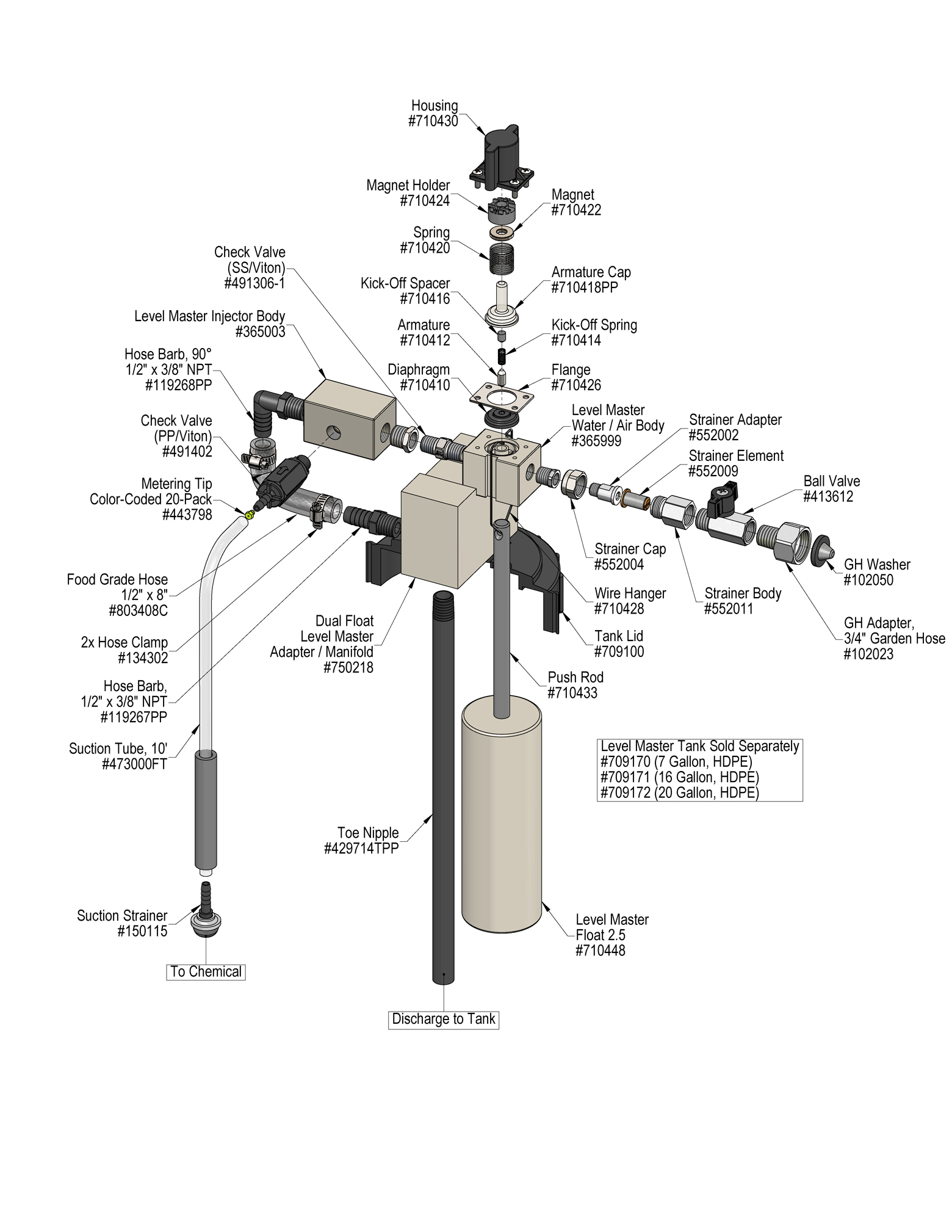

Includes
- Water supply inlet strainer
- Water supply shut-off ball valve
- Machined polypropylene injector body
- Magnetic float valve with solid polypropylene float suspended by rigid CPVC push rod
- Stainless steel / Viton back-flow prevention check valve
- 20 color-coded metering tips to set dilution ratios
- Lid for a paired tank (tank not included)
