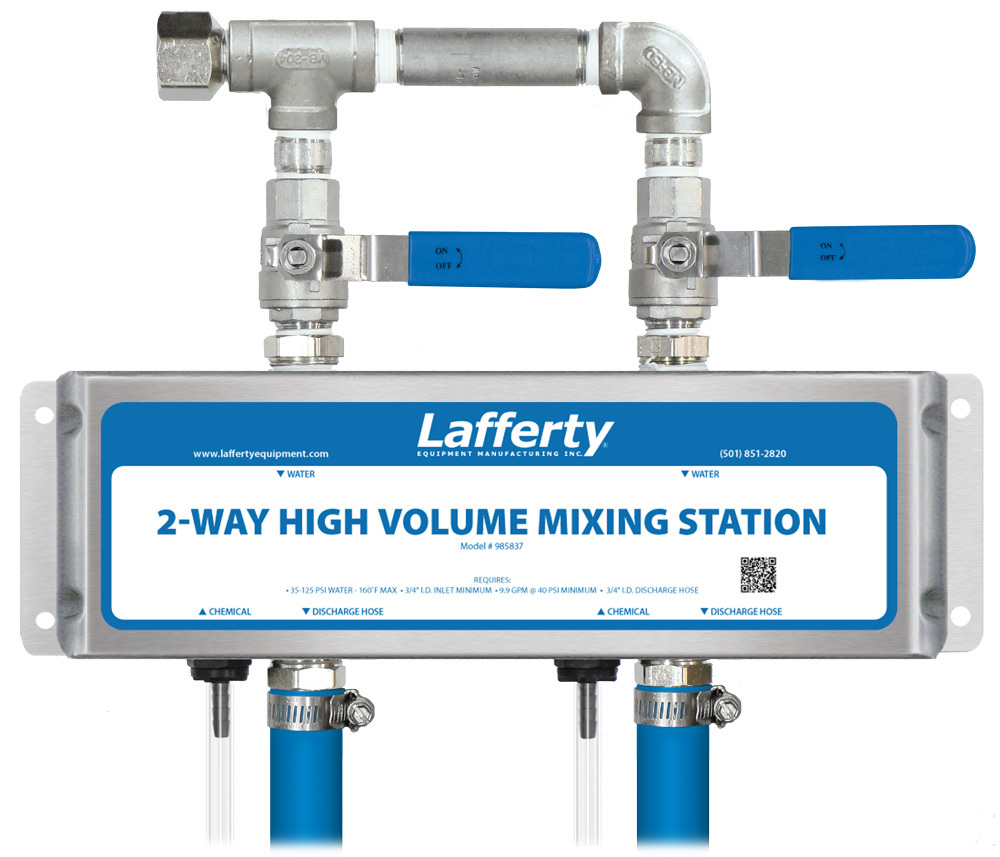

2-Way High Volume Mixing Station
General Purpose
High Volume
Polypropylene Body
Proportion and dispense
Venturi Dilution
Wall Mount / Stationary
The 2-Way High Volume Mixing Station is a 9.9 GPM @ 40 PSI chemical proportioner for accurately diluting 2 chemical concentrates to the required ratios and for quickly filling large containers with diluted, ready-to-use chemical solutions. This venturi injection system uses standard city water pressure (35 - 125 PSI) to draw and blend chemical concentrates into the water streams to create accurately diluted solutions. Ball valve activation allows for hands-free dispensing.
Key Features
- Eliminates manual mixing and optimizes chemical utilization, employee safety and labor efficiency
- Ball valve activation allows for hands-free dispensing
- Quickly fills floor scrubbers, tank foamers/sprayers or any large container at 9.9 GPM @ 40 PSI to minimize downtime - fills a 20 gallon tank in 2 minutes!
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Dilution ratios controlled with precision metering tips
- Draws chemical concentrates from any sized containers
- Optional trigger guns or ball valves & wands
- Optional 2nd chemical pickup tube for stronger dilution ratios or more viscous chemicals (#491404-A)
- Available for 3 separate chemicals (#985838)
- See other chemical management systems in Catalog 9

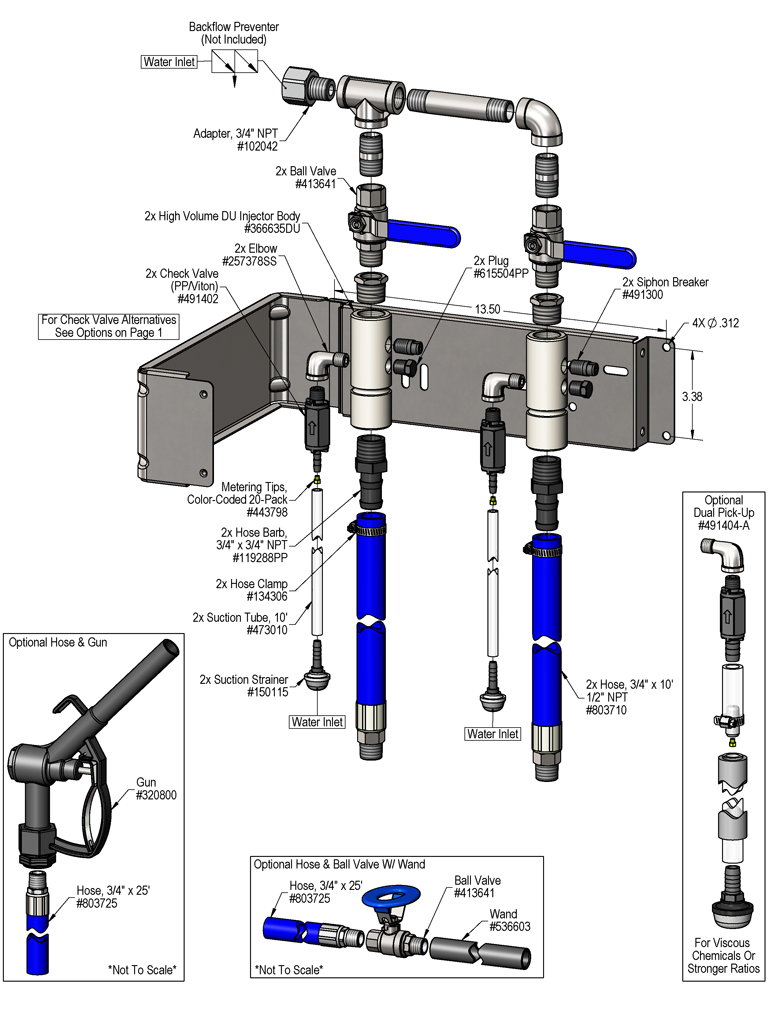

Includes
- Stainless steel mounting bracket
- Stainless steel activation ball valves
- Machined polypropylene injector bodies
- 20 color-coded precision metering tips to set dilution ratios
- (2) 10' open flow discharge hoses with 1/2" MPT hose-end fittings for optional attachments
Overview
Key Features
- Eliminates manual mixing and optimizes chemical utilization, employee safety and labor efficiency
- Ball valve activation allows for hands-free dispensing
- Quickly fills floor scrubbers, tank foamers/sprayers or any large container at 9.9 GPM @ 40 PSI to minimize downtime - fills a 20 gallon tank in 2 minutes!
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Dilution ratios controlled with precision metering tips
- Draws chemical concentrates from any sized containers
- Optional trigger guns or ball valves & wands
- Optional 2nd chemical pickup tube for stronger dilution ratios or more viscous chemicals (#491404-A)
- Available for 3 separate chemicals (#985838)
- See other chemical management systems in Catalog 9
Includes
- Stainless steel mounting bracket
- Stainless steel activation ball valves
- Machined polypropylene injector bodies
- 20 color-coded precision metering tips to set dilution ratios
- (2) 10' open flow discharge hoses with 1/2" MPT hose-end fittings for optional attachments
