High Volume SS Mixing Station
General Purpose
High Volume
Proportion and dispense
Stainless Steel Body
Venturi Dilution
Wall Mount / Stationary

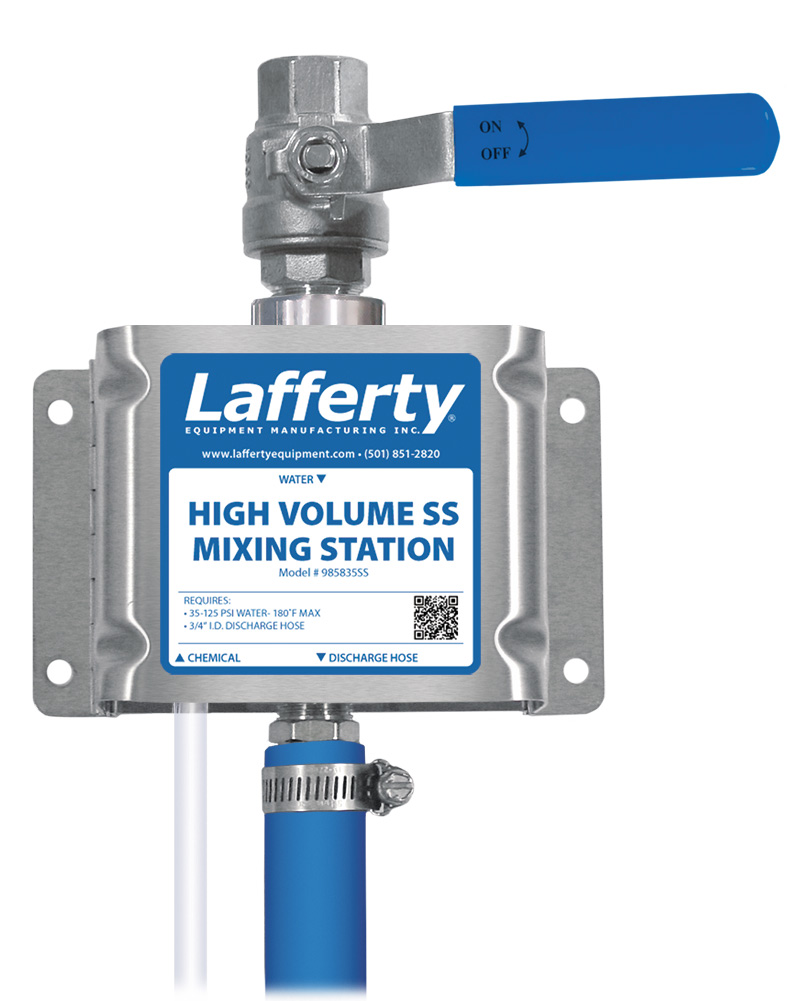

The High Volume SS Mixing Station is a 9.4 GPM @ 40 PSI chemical proportioner for accurately diluting a chemical concentrate and quickly filling large containers with ready-to-use chemical solution. This stainless steel venturi injection system uses standard city water pressure (35 - 125 PSI) to draw and blend chemical concentrate into the water stream. Ball valve activation allows for hands-free dispensing.
Key Features
- Eliminates manual mixing and optimizes chemical utilization, employee safety and labor efficiency
- Ball valve activation allows for hands-free dispensing
- Quickly fills floor scrubbers, tank foamers/sprayers or any large container at 9.4 GPM @ 40 PSI to minimize downtime
- Stainless steel injector body and chemical-resistant wetted components ensure durability and years of outstanding performance with minimal maintenance
- Dilution ratio controlled with precision metering tips
- Draws chemical concentrate from any sized container
- Optional trigger gun or ball valve & wand
- Available with a polypropylene injector body (#985835)
- See other chemical management systems in Catalog 9

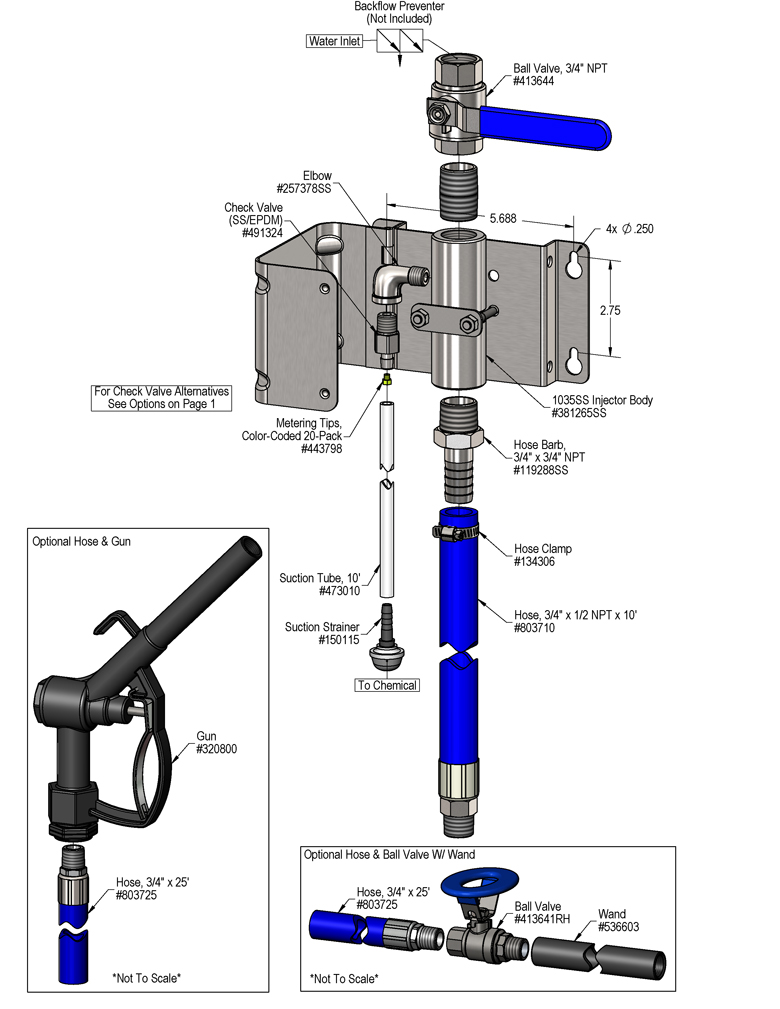

Includes
- Stainless steel mounting bracket
- Stainless steel activation ball valve
- Stainless steel injector body and check valve
- 20 color-coded precision metering tips to set dilution ratios
- 10' open flow discharge hose with 1/2" MPT hose-end fitting for optional attachments
