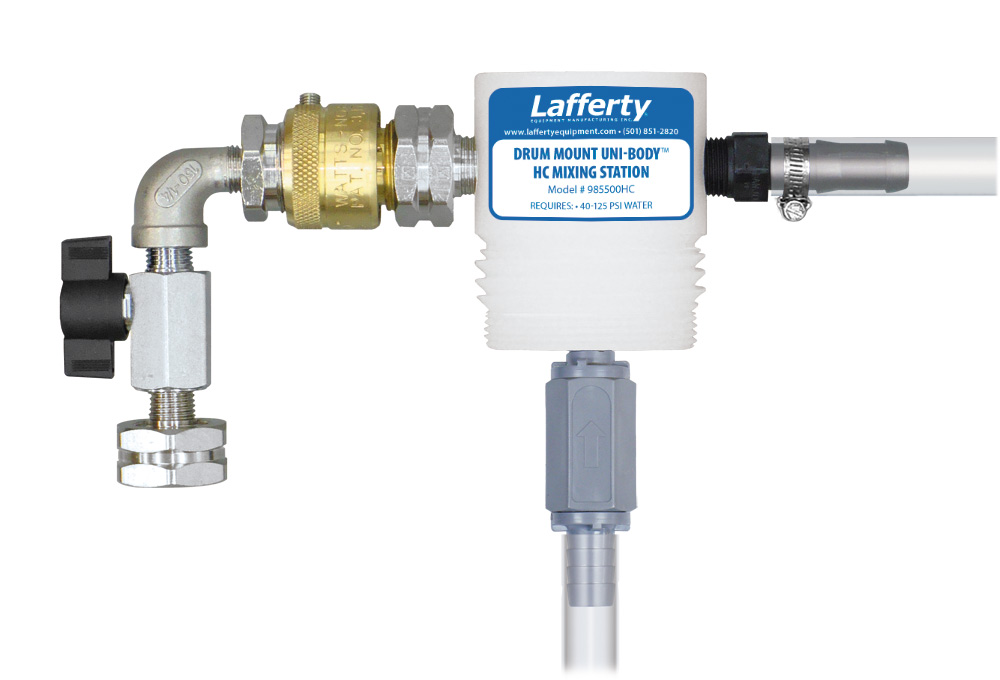

Drum Mount Uni-Body HC Mixing Station
Drum Mounted
General Purpose
HC (High Concentrate)
Medium Volume
Polypropylene Body
Portable
Proportion and dispense
Venturi Dilution

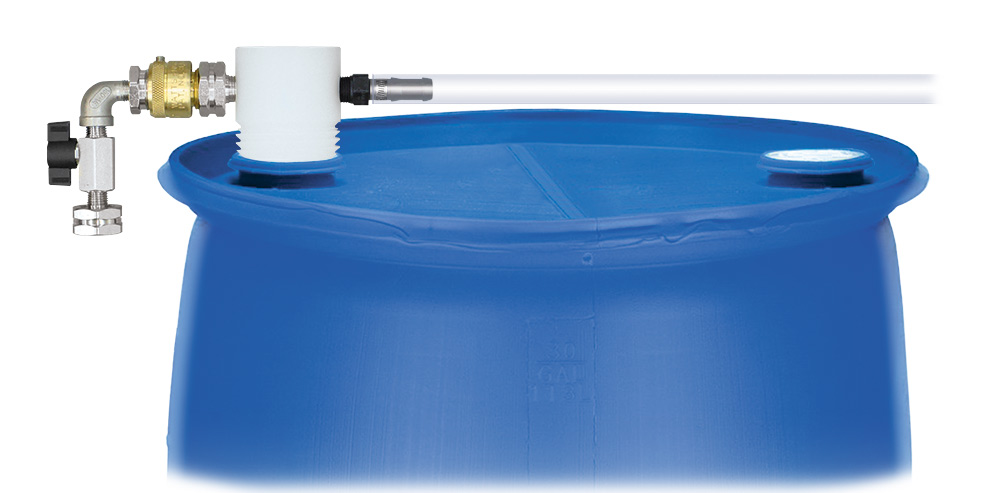

The HC Drum Mount Mixing Station is a drum-mounted, "high concentrate" chemical proportioner for accurately diluting chemical concentrates to strong ratios and filling any sized container with diluted, ready-to-use chemical solutions. This venturi injection system uses standard city water pressure (35 - 125 PSI) to draw and blend a high concentration of chemical directly from the drum into the water stream to create a very strong solution. Ball valve activation allows for hands-free dispensing. Available with several flow rates to dispense into any sized container or equipment.
Key Features
- Achieve strong chemical concentrations up to 2.4:1
- Screws into, and dispenses directly from, chemical concentrate drums for increased efficiency
- Equipped with both fine and coarse threads
- Eliminates manual mixing and optimizes chemical utilization, employee safety and labor efficiency
- Ball valve activation allows for hands-free dispensing
- Flow rate 3.3 GPM @ 40 PSI
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Dilution ratio controlled with precision metering tips
- Available as a wall mounted unit (#980414)
- See other Lafferty chemical management systems in Catalog 9

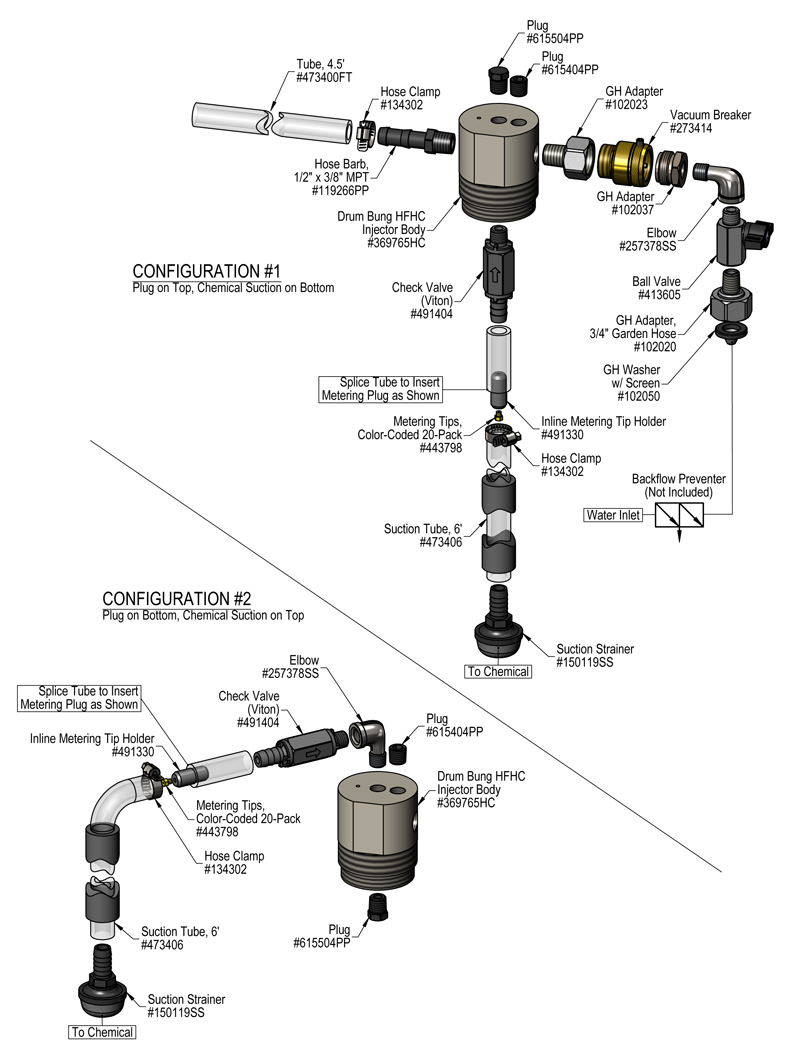

Includes
- Activation ball valve
- Integrated brass back-flow preventer
- Polypropylene injector body
- 20 color-coded metering tips for setting dilution ratios
- 6' chemical suction tube with strainer
- 4.5' open flow discharge tube
Loading related posts...
Overview
Key Features
- Achieve strong chemical concentrations up to 2.4:1
- Screws into, and dispenses directly from, chemical concentrate drums for increased efficiency
- Equipped with both fine and coarse threads
- Eliminates manual mixing and optimizes chemical utilization, employee safety and labor efficiency
- Ball valve activation allows for hands-free dispensing
- Flow rate 3.3 GPM @ 40 PSI
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Dilution ratio controlled with precision metering tips
- Available as a wall mounted unit (#980414)
- See other Lafferty chemical management systems in Catalog 9
Includes
- Activation ball valve
- Integrated brass back-flow preventer
- Polypropylene injector body
- 20 color-coded metering tips for setting dilution ratios
- 6' chemical suction tube with strainer
- 4.5' open flow discharge tube
