Drum Mount Uni-Body Mixing Station
Drum Mounted
General Purpose
Medium Volume
Polypropylene Body
Portable
Proportion and dispense
Venturi Dilution

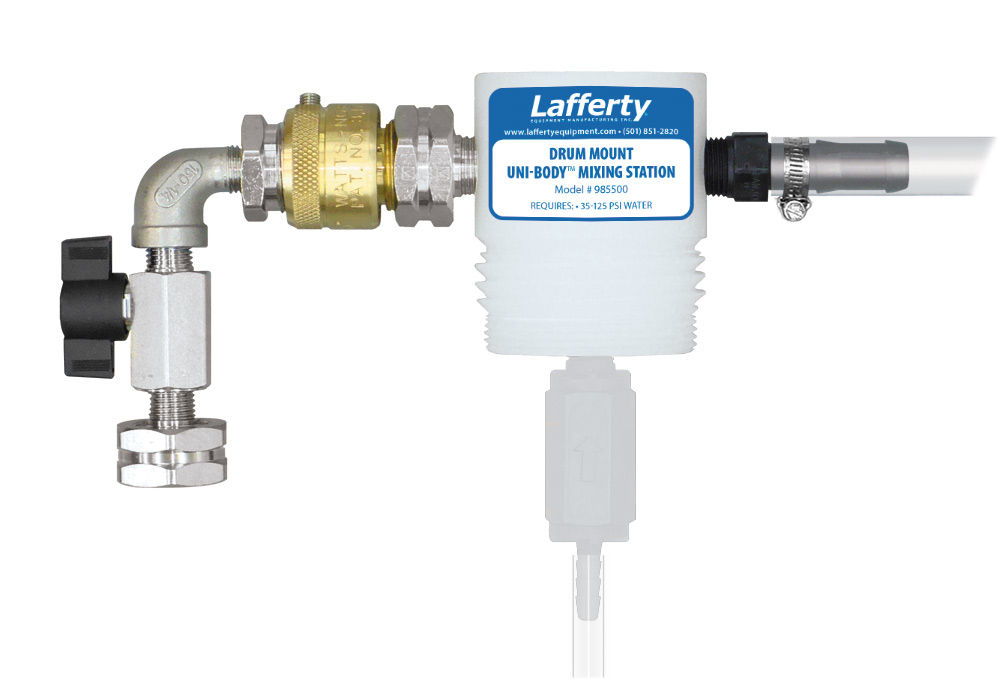

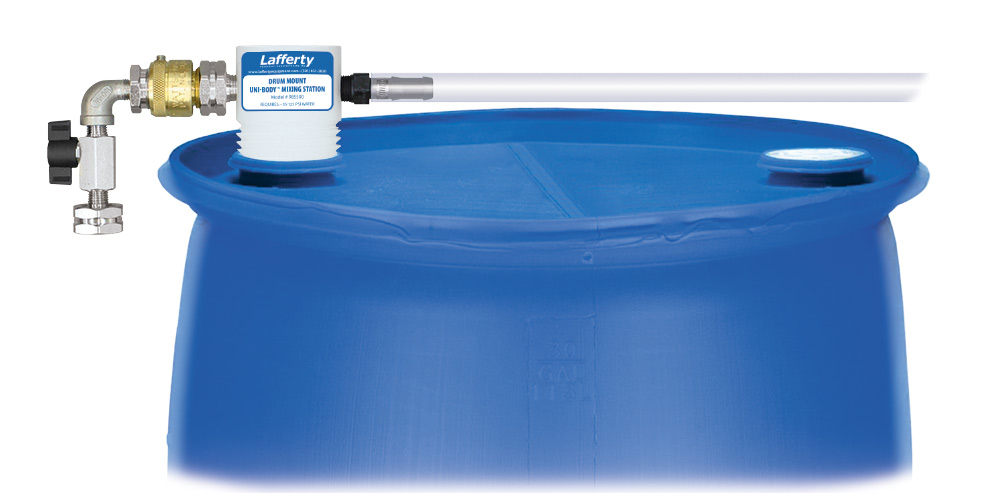

The Drum Mount Uni-Body Mixing Station is a drum-mounted chemical proportioner for accurately diluting chemical concentrates to required ratios and filling any size container with ready-to-use chemical solutions. This venturi injection system uses standard city water pressure (35 - 125 PSI) to draw and blend chemical concentrate directly from the drum into the water stream to create an accurately diluted solution. Ball valve activation allows for hands-free dispensing.
cropped.jpg)
cropped.jpg?width=1000&height=493&name=985500__photo__985500_onDrum(plastic)cropped.jpg)
Key Features
- Screws into, and dispenses directly from, chemical concentrate drums for increased efficiency
- Equipped with both fine and coarse threads
- Eliminates manual mixing and optimizes chemical utilization, employee safety and labor efficiency
- Ball valve activation allows for hands-free dispensing
- High flow rate (4 GPM @ 40 PSI) quickly fills larger sized containers
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Dilution ratio controlled with precision metering tips
- Available as a wall mounted unit (#981100, 985100)
- Available as a "high concentrate" unit (#985500HC)
- See other Lafferty chemical management systems in Catalog 9

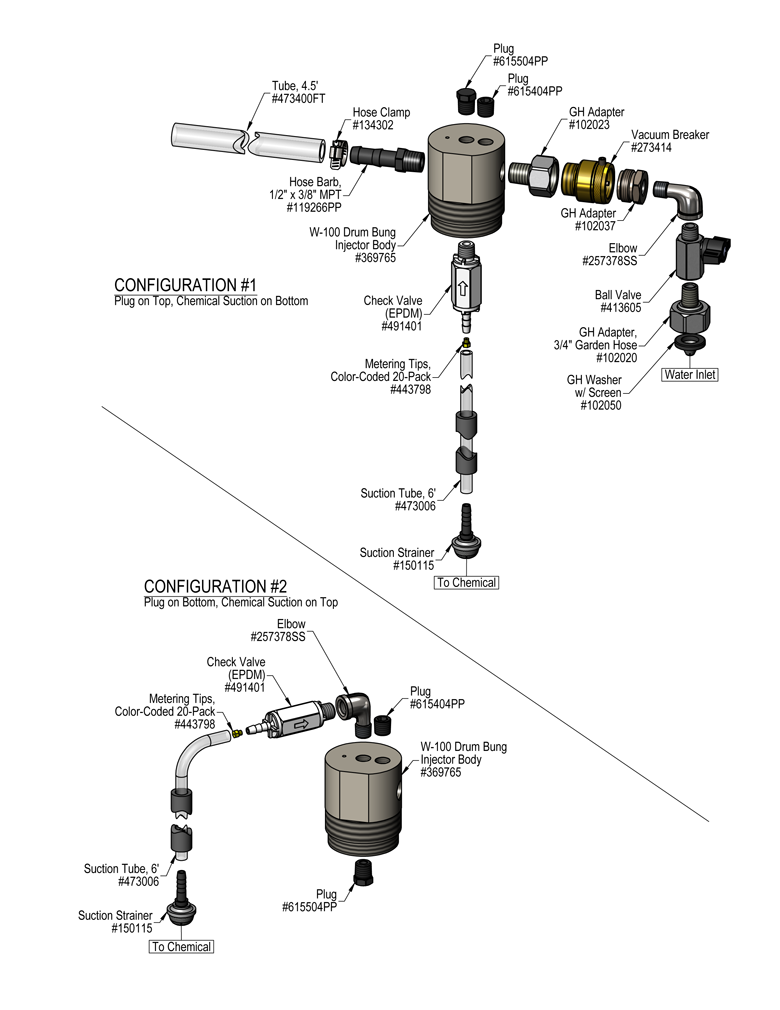

Includes
- Activation ball valve
- Polypropylene injector body
- Integrated brass back-flow preventer
- 20 color-coded metering tips for setting dilution ratios
- 6' chemical suction tube with strainer
- 4.5' open flow discharge tube
