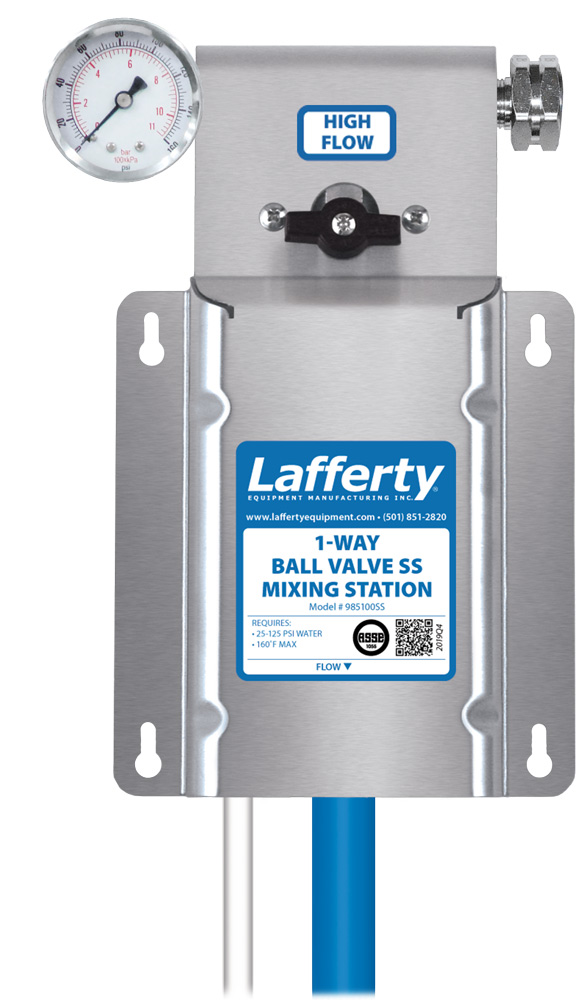

1-Way Ball Valve SS Mixing Station
General Purpose
Medium Volume
Proportion and dispense
Solvent Applicators
Stainless Steel Body
Venturi Dilution
Wall Mount / Stationary
The 1-Way Ball Valve SS Mixing Station is a solvent-resistant, ASSE 1055 certified chemical proportioner that accurately dilutes chemical to the required ratio and dispenses into any size container. This stainless steel venturi injection system uses city water pressure (25 - 125 PSI) to draw and blend chemical concentrate into the water stream and precision metering tips to set the dilution ratio for each valve. Ball valve activation allows for hands-free dispensing. Choose a factory-set flow rate at the time of order (Low Flow or High Flow).
Key Features
- Eliminates manual mixing and optimizes chemical utilization, employee safety and labor efficiency
- Ball valve activation allows for hands-free dispensing
- Stainless steel injector body and solvent-resistant wetted components ensure durability and years of outstanding performance with minimal maintenance
- Water pressure gauge eliminates guessing, reduces set-up time and helps with troubleshooting
- Dilution ratio controlled with precision metering tips
- Draws chemical concentrate from any sized container
- Choice of left or right side water inlet
- Choice of flow rates for filling small to large containers
- Please specify the flow rate when ordering
- Low Flow (LF) or High Flow (HF)
- Certified to ASSE Standard 1055 for backflow prevention
- Available with a polypropylene injector (#985100)
- See Lafferty chemical management systems in Catalog 9

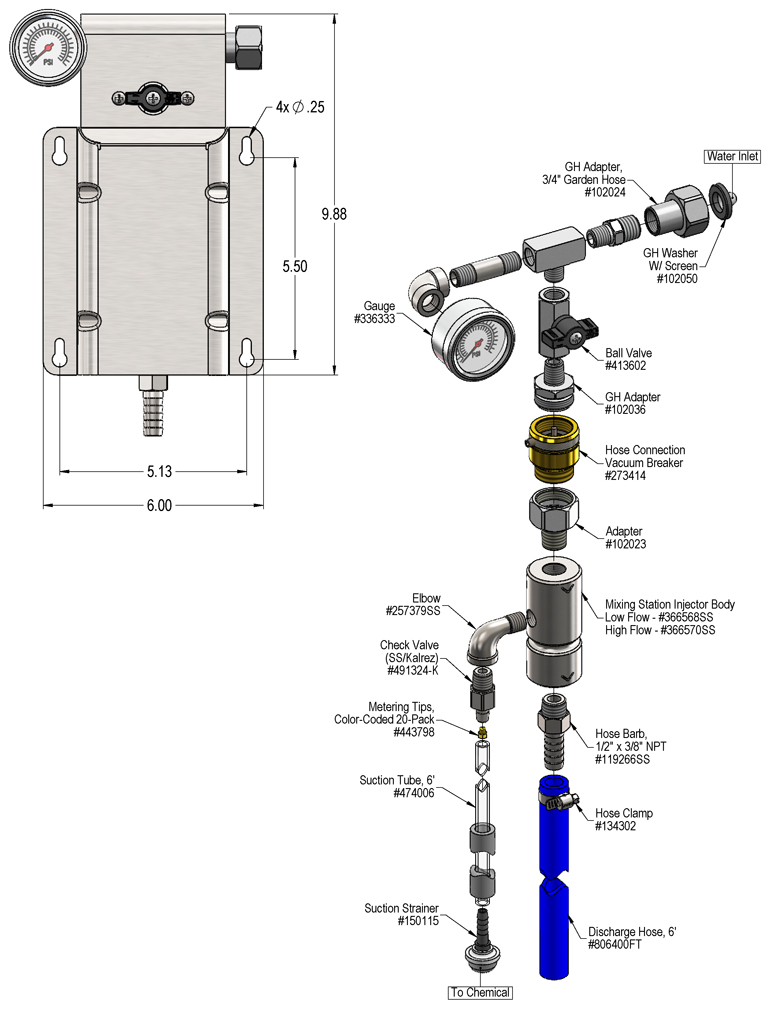

Includes
- Stainless steel mounting bracket
- Activation ball valve
- Stainless steel injector body
- Kalrez chemical check valve
- Integrated brass hose connection vacuum breaker
- Easy-to-read water pressure gauge for accurate tip selection
- 20 color-coded precision metering tips to set dilution ratios
- Polyurethane chemical pick-up and discharge tubes
- 6' chemical suction tube with strainer
- 6' open flow discharge tube
