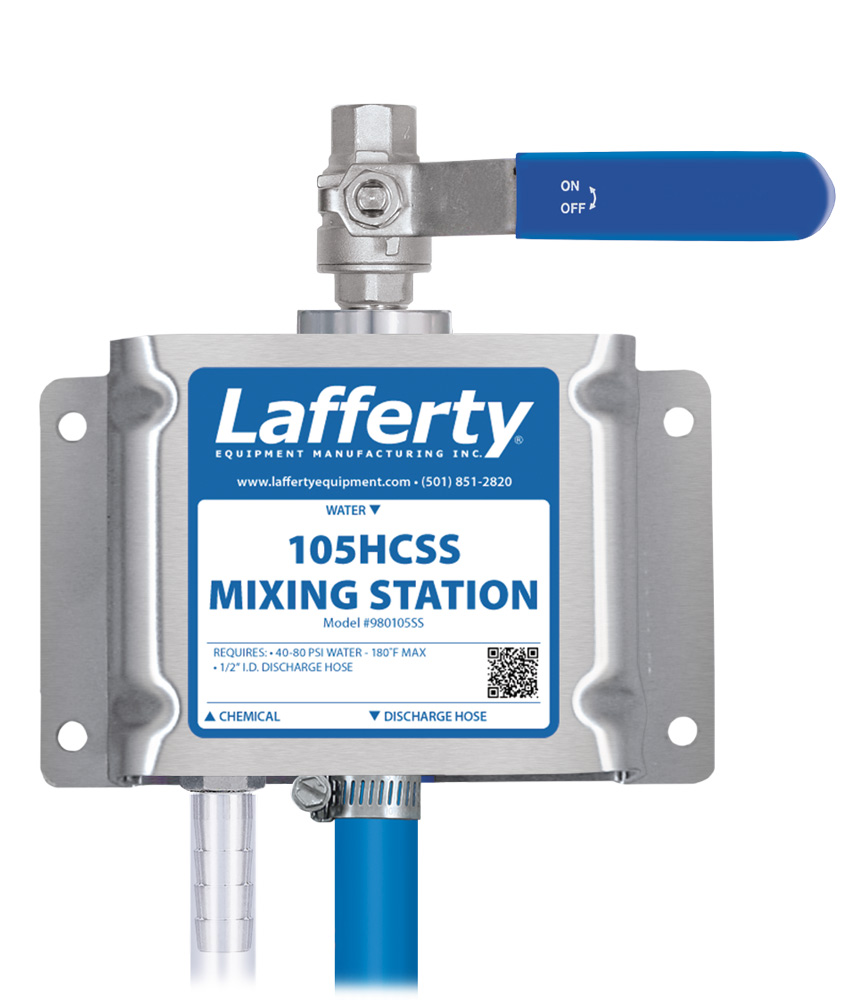

105HCSS Mixing Station
Chemical Management
Chemical Mixing
The 105HCSS Mixing Station has a water flow rate of 1 GPM @ 40 PSI and is a "high concentrate" chemical proportioner for filling smaller sized containers with strong solutions. This stainless steel venturi injection system uses city water pressure (40 - 80 PSI) to draw and blend a high concentration of chemical into the water stream to create up to 1:1 dilution ratios. Ball valve activation allows for hands-free dispensing.
Key Features
- Achieves strong dilution ratios, up to 1:1 (with water thin chemicals)
- Weaker ratios controlled by precision metering tips & plugs
- Water flow rate of 1 GPM @ 40 PSI for filling smaller containers and equipment
- Eliminates manual mixing and optimizes chemical utilization, employee safety and labor efficiency
- Ball valve activation allows for hands-free dispensing
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Industrial-strength stainless steel design holds up in tough environments
- Draws chemical concentrate from any sized container
- Available with a polypropylene injector body (#980105)
- See other chemical management systems in Catalog 9

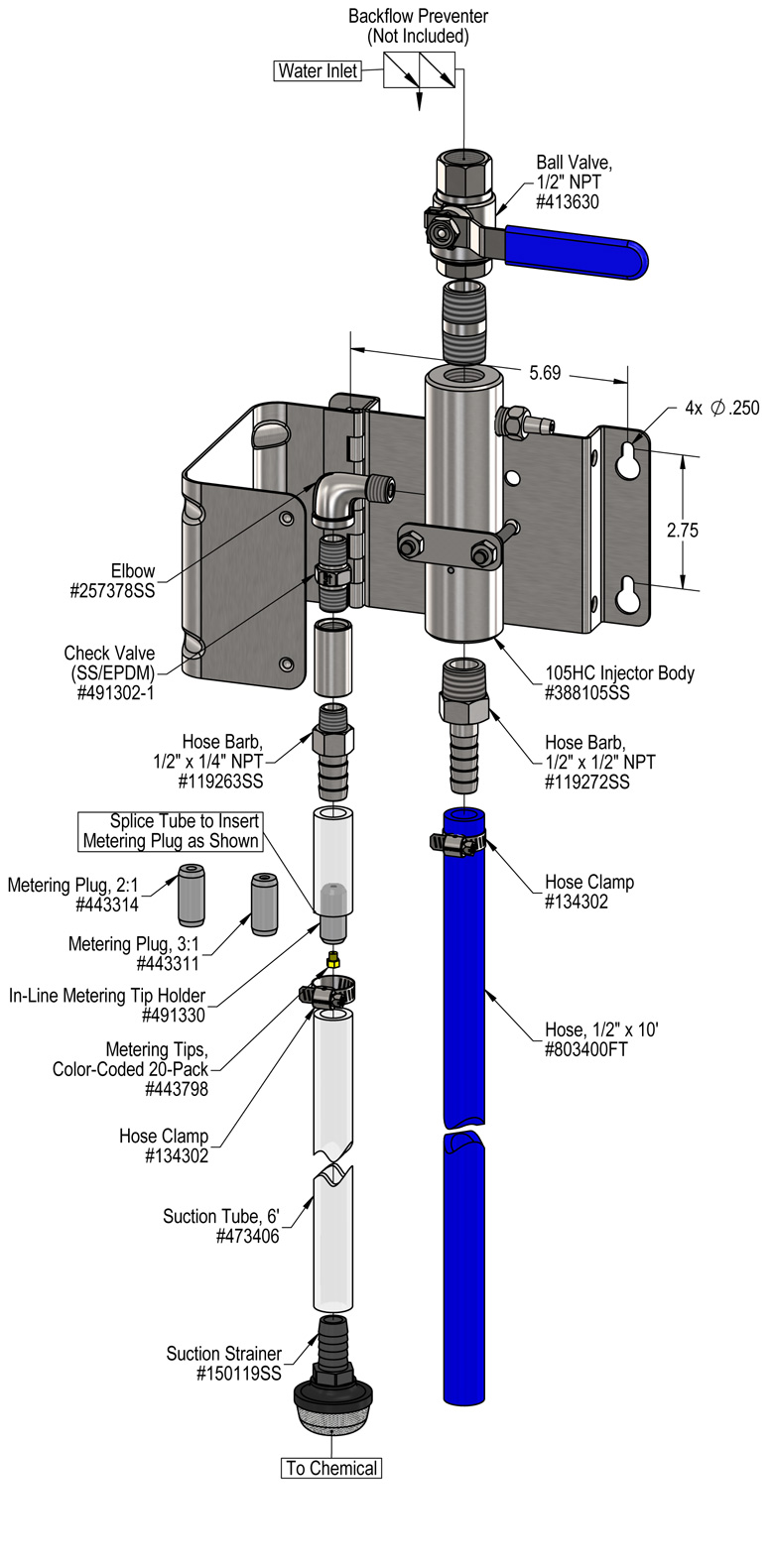

Includes
- Stainless steel mounting bracket
- Stainless steel inlet ball valve
- Machined stainless steel injector body
- 20 color-coded precision metering tips to set dilution ratios
- Metering plugs to set 2:1 and 3:1 dilution ratios
- 10' open flow discharge hose
