Timed Dual Entryway Foam Sanitizer
Air Assisted
City Pressure
Electricity (120V)
Entryway Sanitation
Foam
Medium Volume
Polypropylene Body
Programmable Systems
Venturi Dilution
Wall Mount / Stationary

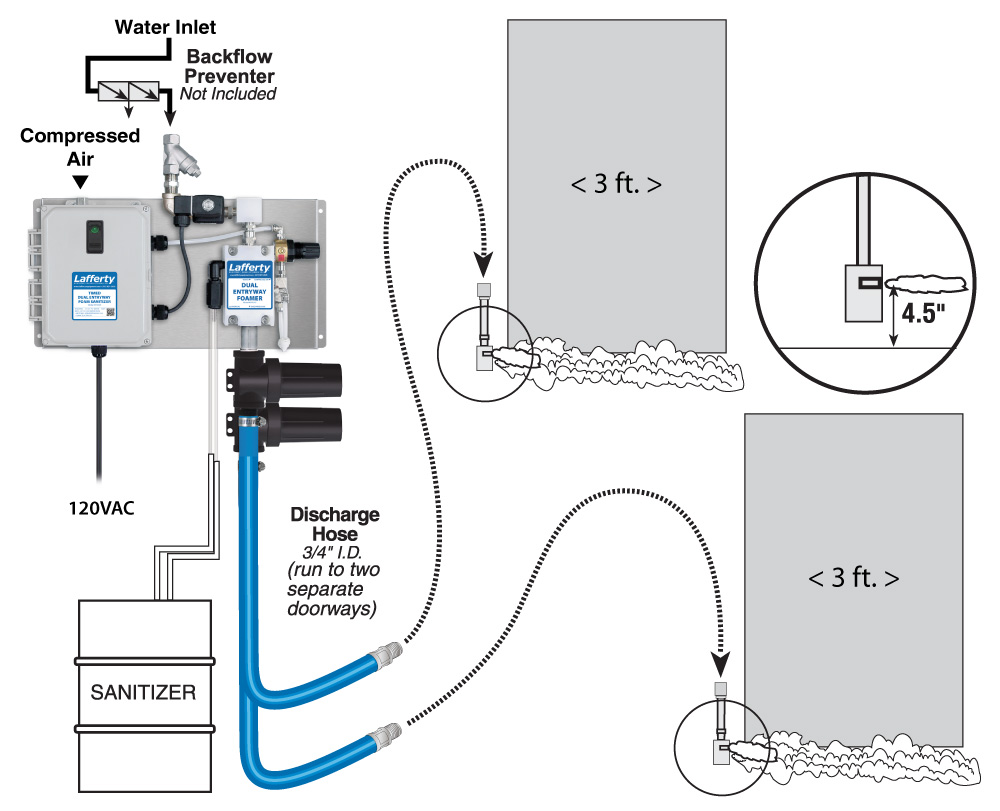

The Timed Dual Entryway Foam Sanitizer is an automated foam applicator for projecting sanitizing chemicals on to floors of two adjacent 3' wide employee walk doors to prevent cross contamination. When activated, this venturi injection system uses city water pressure (35 - 125 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution. Rich, clinging foam is created by injecting compressed air into the solution to greatly increase volume and coverage ability. Foam is then projected through the discharge hoses and Spreader™ nozzles. The system timer is user-programmable to meet the needs of any facility.
Key Features
- Applies a layer of rich, clinging foam to entryway floors to prevent cross-contamination
- Designed for two adjacent 3' wide employee walk doors
- Dilutes chemical concentrate "on-the-fly" from a container near the unit
- The unique Spreader™ nozzle lays a foam pattern 3' across and 4' wide to ensure all foot traffic and cart wheels are fully exposed to the sanitizer
- Automatic activation and shutoff for use in moderate to high traffic areas
- Adjustable timer controls the application of foam at regular intervals - up to 1 minute foaming and up to 1 hour off
- Adjustable foam consistency (wet/dry)
- Chemical resistant wetted components ensure durability and years of reliable service with minimal maintenance
- Available for 24VAC electric (#976505-24V)
- See Catalog 6 for other entryway configurations

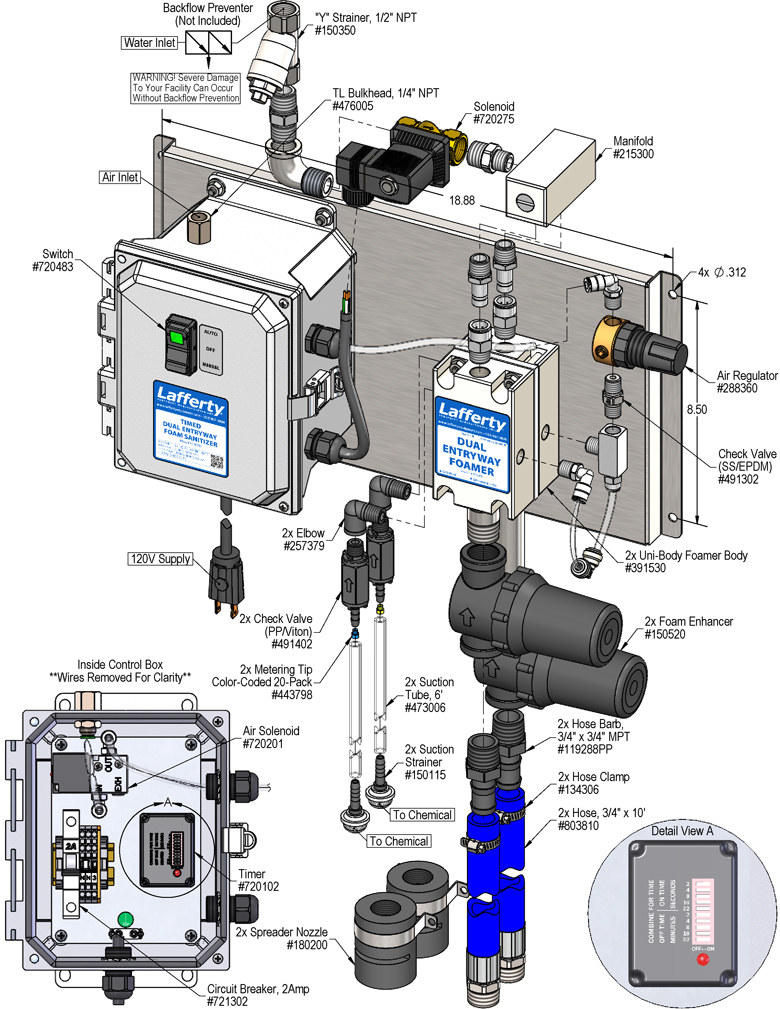

- Stainless steel mounting plate
- NEMA rated control box with run/delay timer
- Water activation solenoid
- (2) Machined polypropylene foamer bodies
- 20 color-coded precision metering tips to set dilution ratios
- (2) Foam enhancers
- (2) 10' discharge hoses
- (2) Entryway Spreader™ nozzles (one for each door)
Loading related posts...
Overview
Key Features
- Applies a layer of rich, clinging foam to entryway floors to prevent cross-contamination
- Designed for two adjacent 3' wide employee walk doors
- Dilutes chemical concentrate "on-the-fly" from a container near the unit
- The unique Spreader™ nozzle lays a foam pattern 3' across and 4' wide to ensure all foot traffic and cart wheels are fully exposed to the sanitizer
- Automatic activation and shutoff for use in moderate to high traffic areas
- Adjustable timer controls the application of foam at regular intervals - up to 1 minute foaming and up to 1 hour off
- Adjustable foam consistency (wet/dry)
- Chemical resistant wetted components ensure durability and years of reliable service with minimal maintenance
- Available for 24VAC electric (#976505-24V)
- See Catalog 6 for other entryway configurations
- Stainless steel mounting plate
- NEMA rated control box with run/delay timer
- Water activation solenoid
- (2) Machined polypropylene foamer bodies
- 20 color-coded precision metering tips to set dilution ratios
- (2) Foam enhancers
- (2) 10' discharge hoses
- (2) Entryway Spreader™ nozzles (one for each door)
