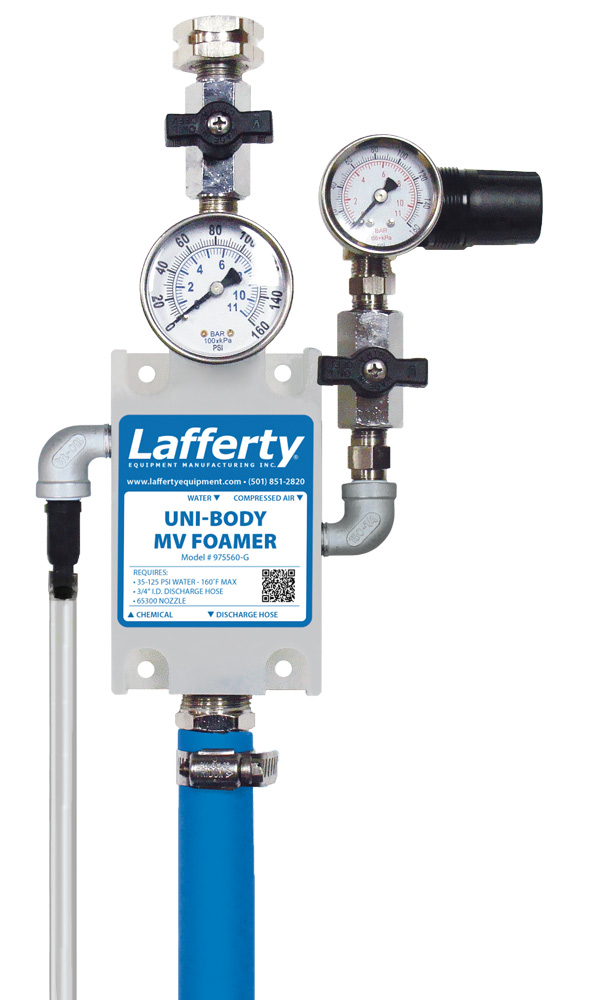

Uni-Body MV Foamer
Air Assisted
City Pressure
Foam
General Purpose
Medium Volume
Polypropylene Body
Uni-body
Venturi Dilution
Wall Mount / Stationary
The Uni-Body MV Foamer is a medium volume foam applicator (2.4 GPM @ 40 PSI) for projecting foaming chemicals on to any surface up close or at a distance. This venturi injection system uses standard city water pressure (35 - 125 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution. Rich, clinging foam is created by injecting compressed air into the solution to greatly increase volume and coverage ability. The foam is then projected through the discharge hose and fan nozzle at distances up to 14 feet. Gauges display incoming water and air pressure.
Key Features
- The unique machined polypropylene uni-body design is both compact and cost-effective
- Designed for foam cleaning medium to large surfaces
- Creates a medium volume of rich, clinging foam which increases chemical contact time and effectiveness
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- Fan pattern nozzle for fast coverage (up to 14' range)
- Covers up to 500 sq ft (46.5 sq m) in 1.5 minutes
- Adjustable foam consistency (wet/dry)
- Water and air pressure gauges eliminate guessing to reduce set-up time and help with troubleshooting
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Available with lower volume output (#975555-G)
- See other configurations of Lafferty city water pressure foamers in Catalog 1
Includes

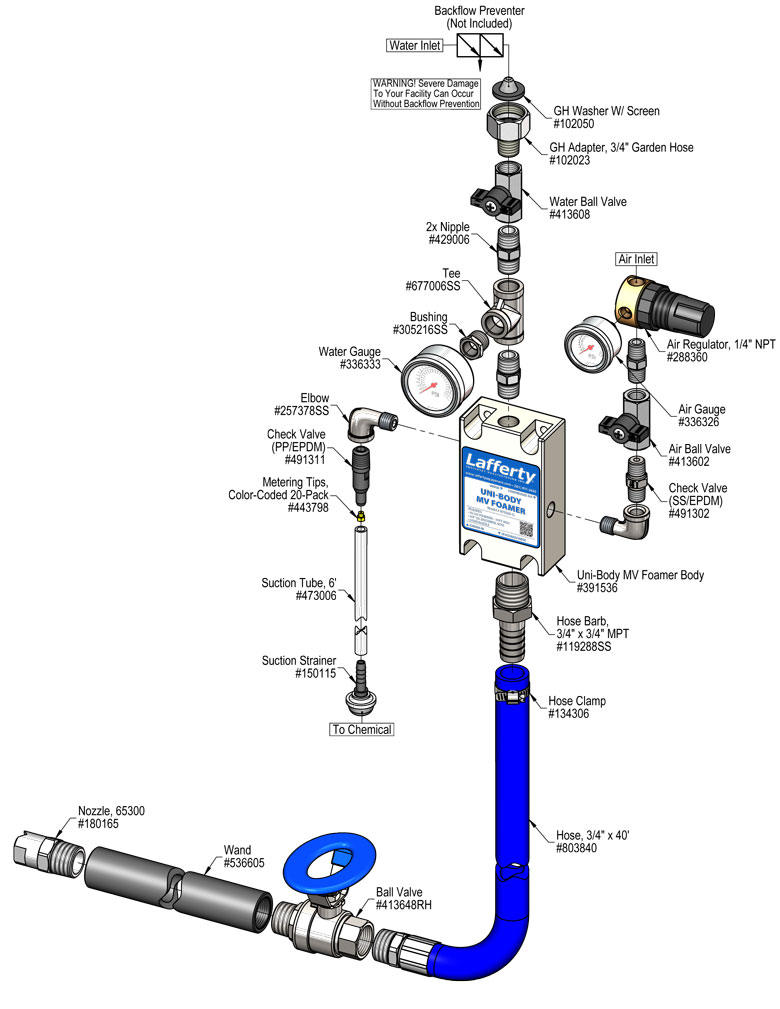

- Machined polypropylene foamer body
- Easy-to-read pressure gauges for incoming water and air
- 20 color-coded precision metering tips to set dilution ratios
- 40' discharge hose, stainless steel discharge ball valve, polypropylene foam wand and fan nozzle
