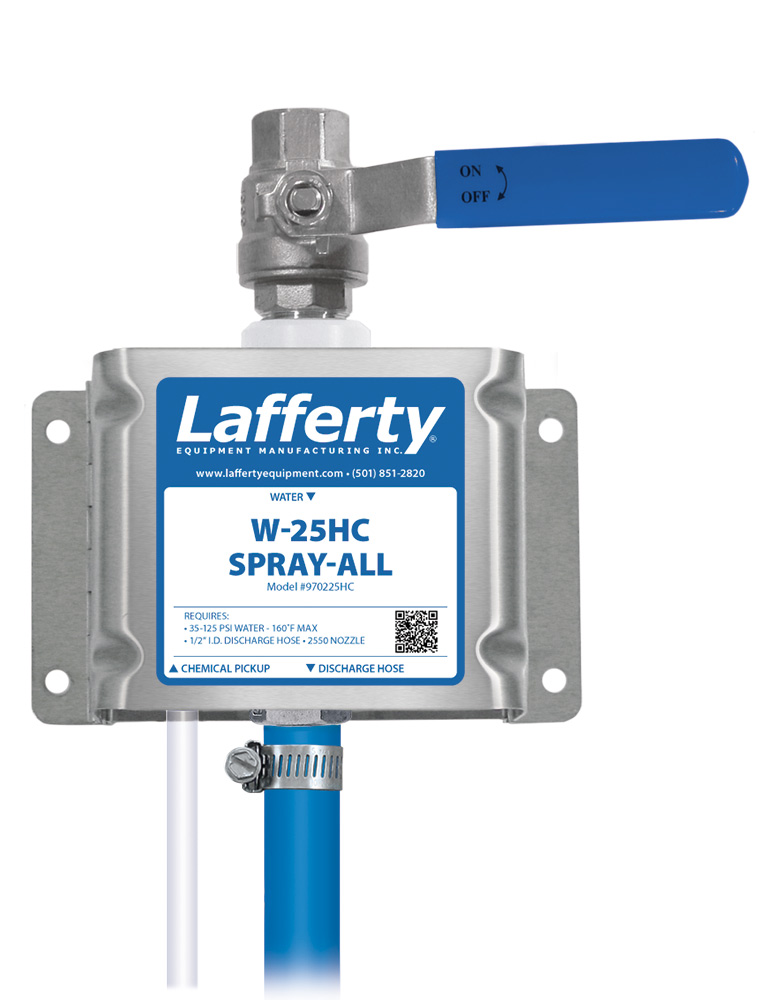

W-25HC Spray-All
City Pressure
General Purpose
HC (High Concentrate)
Polypropylene Body
Sanitize / Spray
Venturi Dilution
Wall Mount / Stationary
The W-25HC Spray-All is a "high concentrate" spray applicator that will achieve strong dilution ratios for the toughest cleaning jobs. This venturi injection system uses standard city water pressure (35 - 125 PSI) to draw and blend chemical concentrate into the water stream to create a very strong chemical solution. The diluted solution is then projected through the discharge hose and fan nozzle as a uniform spray on to a variety of surfaces. Weaker dilution ratios are achieved with metering tips. With a flow rate of just over 1 gallon per minute, this unit is great for spraying virtually any sized area or object quickly and completely.
Key Features
- Achieve strong chemical concentrations up to 2.5 to 1
- Weaker dilution ratios controlled by precision metering tips
- Creates a medium volume spray (1.3 GPM @ 40 PSI)
- Fan pattern nozzle for fast coverage
- Handles tough jobs quickly with minimal over-spray
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Industrial-strength design holds up in tough environments
- Use it where 35-125 PSI water is available
- Available with a lower flow rate (#970220HC)
- See other Lafferty Spray-Alls and more chemical applicators in Catalog 1
- Stainless steel mounting bracket
- Stainless steel inlet and discharge ball valves
- Machined polypropylene injector body
- 20 color-coded metering tips for weaker dilution ratios
- 50' discharge hose, polypropylene wand and stainless steel fan nozzle
Loading related posts...
Overview
Key Features
- Achieve strong chemical concentrations up to 2.5 to 1
- Weaker dilution ratios controlled by precision metering tips
- Creates a medium volume spray (1.3 GPM @ 40 PSI)
- Fan pattern nozzle for fast coverage
- Handles tough jobs quickly with minimal over-spray
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Industrial-strength design holds up in tough environments
- Use it where 35-125 PSI water is available
- Available with a lower flow rate (#970220HC)
- See other Lafferty Spray-Alls and more chemical applicators in Catalog 1
- Stainless steel mounting bracket
- Stainless steel inlet and discharge ball valves
- Machined polypropylene injector body
- 20 color-coded metering tips for weaker dilution ratios
- 50' discharge hose, polypropylene wand and stainless steel fan nozzle
