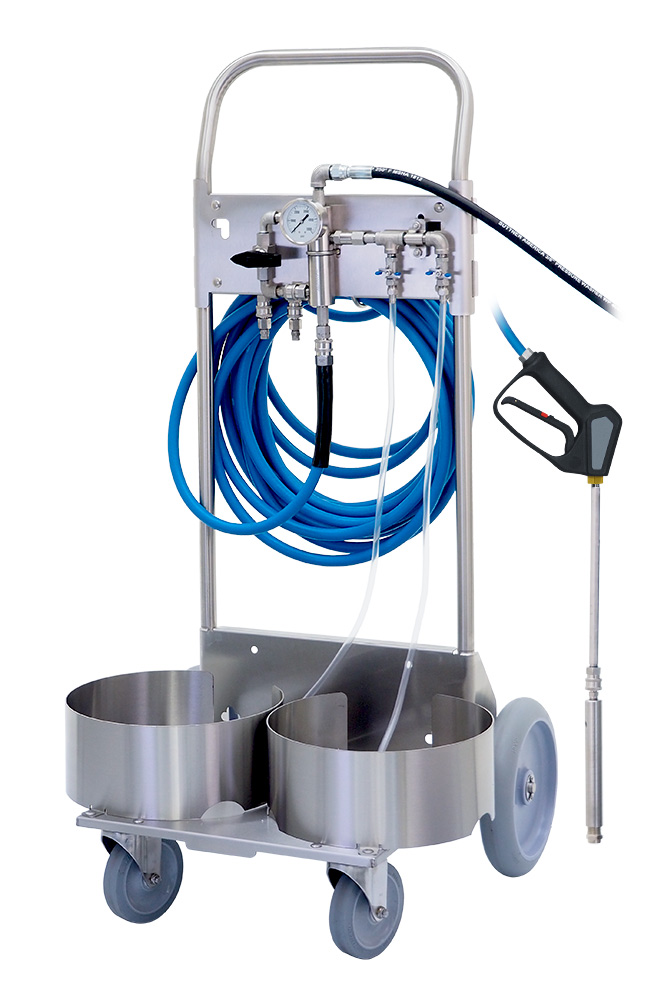

Portable Model 20 SS Bypass 2-Way Airless Foam/Rinse/Spray System
Airless
Foam
Foam (Multiple)
General Purpose
High Pressure
High Volume
Medium Volume
Portable
Sanitize, Rinse, Foam
Sanitize / Spray
Stainless Steel Body
Venturi Dilution
The Portable Model 20 SS Bypass 2-Way Airless Foam/Rinse/Spray System is a venturi dilution system for high water pressure that applies chemical as wet airless foam or liquid spray, and rinses through a single hose. Quick disconnects enable switching between the foam wand, spray nozzle and rinse nozzle. Open the bypass ball valve to rinse at full pressure. This 2-Way unit dilutes two separate chemicals or two different concentrations of the same chemical.
Key Features
- This complete system includes all required components - just connect high pressure water and chemical
- Draws chemical from onboard containers and accurately dilutes to the required ratio
- Switch between soap and disinfectant, or two different concentrations of the same chemical
- Use the airless foam wand to project wet, clinging foam
- No compressed air required
- Foam increases chemical contact time and effectiveness, and provides visual confirmation of coverage
- Use the fan pattern foam nozzle for area coverage or zero degree foam nozzle for increased range (up to 25')
- Foam throw distance and coverage varies based on incoming water pressure
- Quick connect the fan pattern spray nozzle for sanitizing and general cleaning without foam
- Open the chemical injector bypass valve to rinse at full volume and pressure
- Use the focused rinse nozzle for powerful blasting
- Rinse at higher volume through the spray nozzle
- Industrial-strength stainless steel construction stands up to tough conditions and constant use - Built to last!
- Pressure gauge facilitates setup and metering tip selection

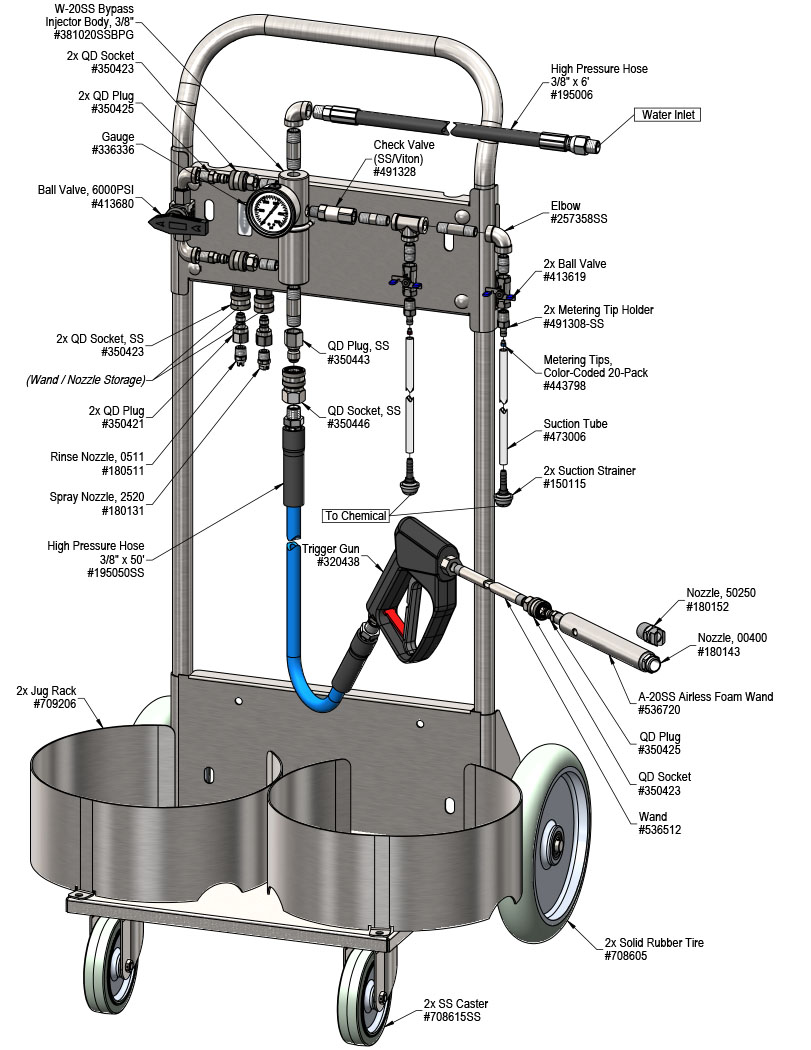

Includes
- All stainless steel 4-wheel cart with integrated hose rack
- Non-marking tires & stainless steel swivel casters
- (2) stainless steel, round, 5 gallon jug racks (square optional)
- 3/8" ID x 6' high-pressure water supply jumper hose
- Machined stainless steel bypass injector body with gauge
- 20 color-coded precision metering tips to set dilution ratios
- Stainless steel high pressure bypass ball valve & 2 chemical ball valves
- Quick-connect 3/8" ID x 50' high-pressure discharge hose with all stainless steel fittings
- Trigger gun with wand and quick-connect socket for attachments
- Quick-connect machined stainless steel airless foam wand with fan and zero degree nozzles
- Quick-connect fan pattern spray nozzle (2520)
- Quick-connect focused rinse nozzle (0511)
- (2) Quick-connect storage mounts for attachments
Loading related posts...
Overview
Key Features
- This complete system includes all required components - just connect high pressure water and chemical
- Draws chemical from onboard containers and accurately dilutes to the required ratio
- Switch between soap and disinfectant, or two different concentrations of the same chemical
- Use the airless foam wand to project wet, clinging foam
- No compressed air required
- Foam increases chemical contact time and effectiveness, and provides visual confirmation of coverage
- Use the fan pattern foam nozzle for area coverage or zero degree foam nozzle for increased range (up to 25')
- Foam throw distance and coverage varies based on incoming water pressure
- Quick connect the fan pattern spray nozzle for sanitizing and general cleaning without foam
- Open the chemical injector bypass valve to rinse at full volume and pressure
- Use the focused rinse nozzle for powerful blasting
- Rinse at higher volume through the spray nozzle
- Industrial-strength stainless steel construction stands up to tough conditions and constant use - Built to last!
- Pressure gauge facilitates setup and metering tip selection
Includes
- All stainless steel 4-wheel cart with integrated hose rack
- Non-marking tires & stainless steel swivel casters
- (2) stainless steel, round, 5 gallon jug racks (square optional)
- 3/8" ID x 6' high-pressure water supply jumper hose
- Machined stainless steel bypass injector body with gauge
- 20 color-coded precision metering tips to set dilution ratios
- Stainless steel high pressure bypass ball valve & 2 chemical ball valves
- Quick-connect 3/8" ID x 50' high-pressure discharge hose with all stainless steel fittings
- Trigger gun with wand and quick-connect socket for attachments
- Quick-connect machined stainless steel airless foam wand with fan and zero degree nozzles
- Quick-connect fan pattern spray nozzle (2520)
- Quick-connect focused rinse nozzle (0511)
- (2) Quick-connect storage mounts for attachments
