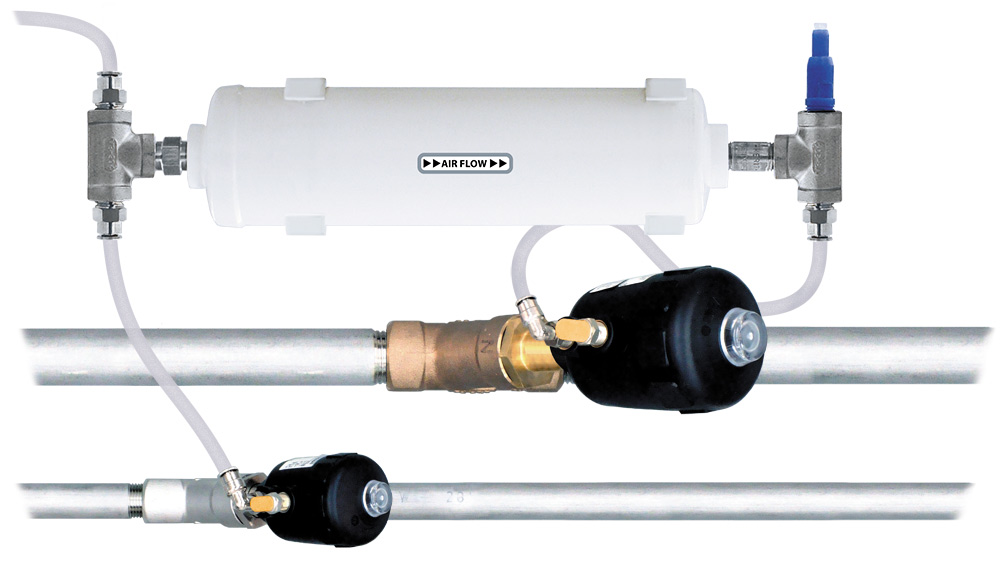

Pump Fed Fogger Zone Control Kit

Key Features

• This kit is used in each zone of a pump fed fogging system
• A pair of air-activated solenoids regulate the flow of compressed air and chemical solution to pump fed foggers in the zone
• Solenoids receive a pilot signal from a PLC Vision Pump Fed Fogger Controller to open or close
• A unique in-line Metered Bleed Tank Assembly keeps the air solenoid momentarily open after the solution solenoid closes to allow the air to clear residual solution from the foggers and prevent dripping after shutoff
• Air bleed time is adjustable using metering tips
• When fogging with off-gassing chemicals, such as PAA, each zone should be equipped with a metered bleed assembly (#950852)
• See Catalog 7 to view our full range of foggers and fogging accessories
• Lafferty offers several online Fogger Planning Tools

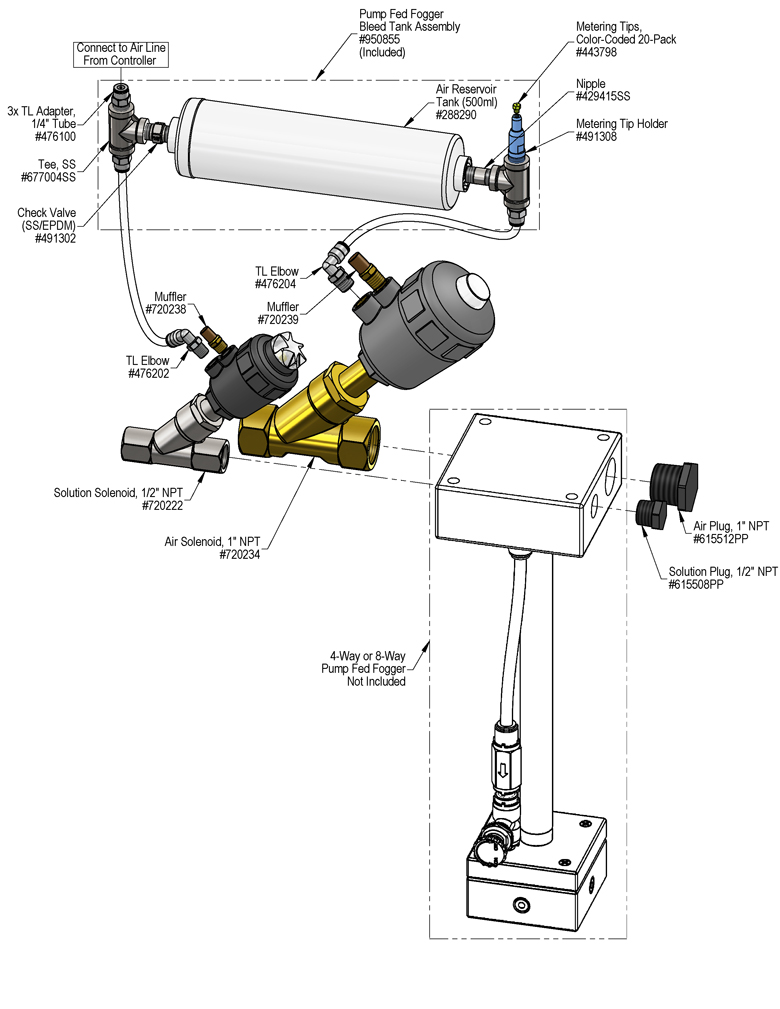

Includes

• 1" brass air-activated air solenoid
• 1/2" stainless steel air-activated solution solenoid
• Metered Bleed Tank Assembly
• Metering tips
