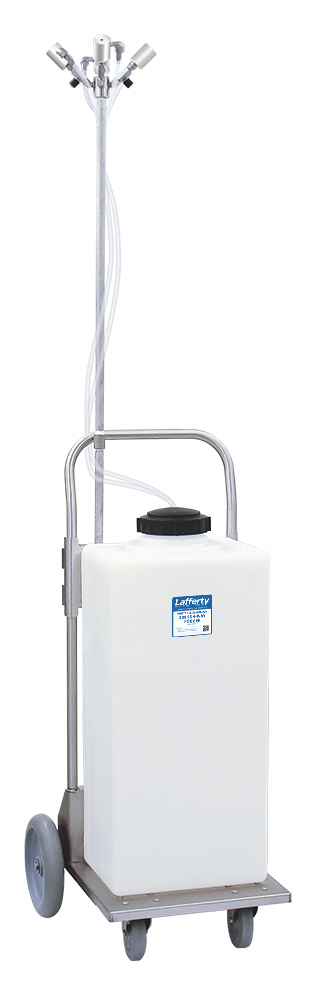

Portable 20 Gallon 305 4-Way SS Fogger
305 Series: Damp Mist (25ft)
Air Assisted
Fog
General Purpose
Portable
Stainless Steel Body
The Portable 20 Gallon 305 4-Way Stainless Steel Fogger is a damp mist sprayer that uses compressed air (29.5 CFM @ 80 PSI) and venturi action to draw ready-to-use chemical solution from the tank on the stainless steel cart and project it up to 25 feet in 4 directions. The adjustable output sprays mist (fog) into the air to cover exposed surfaces and penetrate hard-to-reach areas. This unit features stainless steel fogger bodies, a telescoping mast, and can also be used as a 2-Way fogger.
.jpg)
.jpg?width=1000&height=1000&name=916820__photo__Color_Options_TANKS_(pic).jpg)
Key Features
- Atomizes and sprays chemical solutions using only compressed air
- Venturi action draws pre-diluted chemical from the onboard tank
- Projects up to 25' in 4 directions
- Ball valves on two fogger bodies allow for conversion to 2-Way fogging for narrow areas
- Damp fog (mist) fills the air and covers exposed surfaces with chemical, including hard-to-reach areas
- Optional metering tips can reduce chemical usage and output wetness
- Variable height adjustment up to 80"
- Stainless steel fogger bodies and overall construction ensures durability and years of outstanding performance
- See Catalog 7 for hand held, permanently mounted and portable foggers
- Use the Lafferty Fogger Planning Tool to design the optimal fogging system for any facility

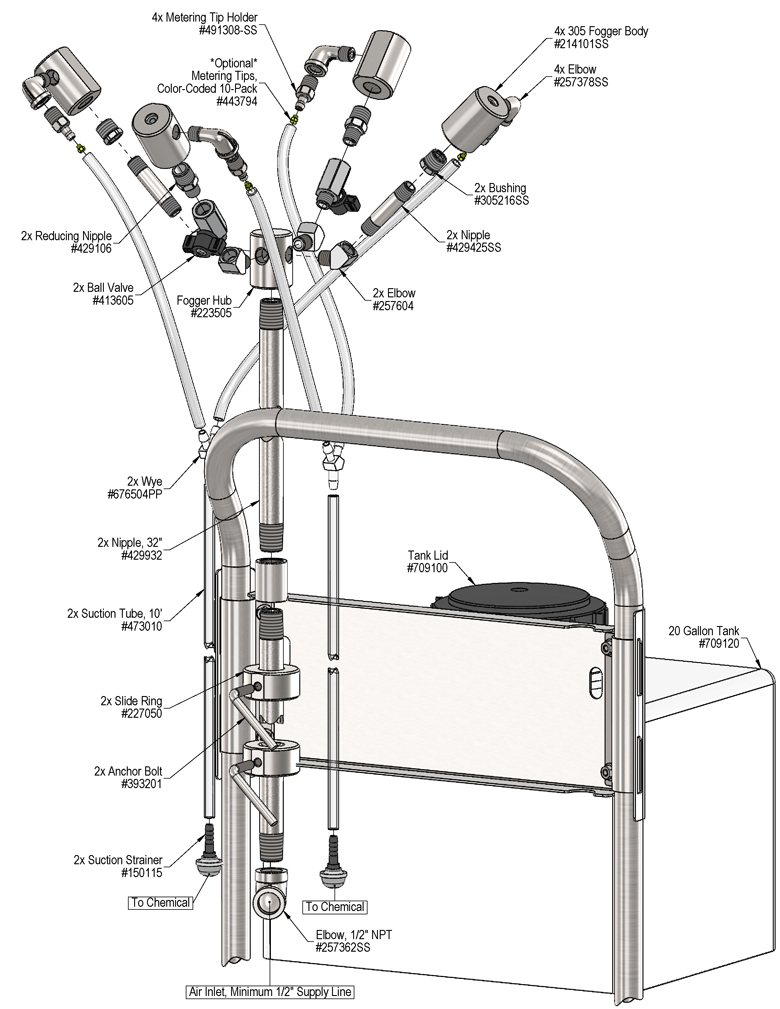

Includes
- All stainless steel 4-wheel cart with non-marking tires and stainless steel swivel casters
- 20 gallon, wide-mouth, polyethylene chemical tank
- Stainless steel, adjustable height fogger pole
- (4) Machined stainless steel fogger bodies
- (2) Air ball valves
- (4) Stainless steel metering tip holders
- (2) 10' chemical suction tubes and strainers
Loading related posts...
Overview
Key Features
- Atomizes and sprays chemical solutions using only compressed air
- Venturi action draws pre-diluted chemical from the onboard tank
- Projects up to 25' in 4 directions
- Ball valves on two fogger bodies allow for conversion to 2-Way fogging for narrow areas
- Damp fog (mist) fills the air and covers exposed surfaces with chemical, including hard-to-reach areas
- Optional metering tips can reduce chemical usage and output wetness
- Variable height adjustment up to 80"
- Stainless steel fogger bodies and overall construction ensures durability and years of outstanding performance
- See Catalog 7 for hand held, permanently mounted and portable foggers
- Use the Lafferty Fogger Planning Tool to design the optimal fogging system for any facility
Includes
- All stainless steel 4-wheel cart with non-marking tires and stainless steel swivel casters
- 20 gallon, wide-mouth, polyethylene chemical tank
- Stainless steel, adjustable height fogger pole
- (4) Machined stainless steel fogger bodies
- (2) Air ball valves
- (4) Stainless steel metering tip holders
- (2) 10' chemical suction tubes and strainers
