2-Way FPS Transfer System
Air Assisted
General Purpose
Transfer
Wall Mount / Stationary

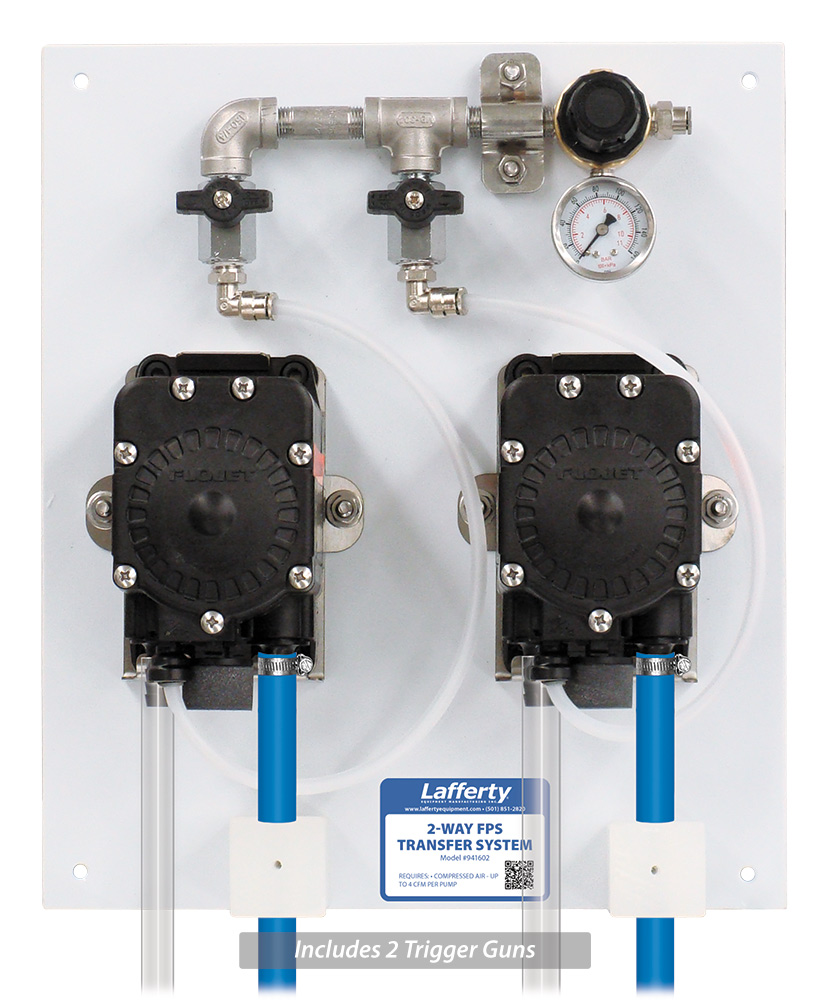

The 2-Way FPS Transfer System is a chemical transfer system for filling any sized container with chemical concentrate or ready-to-use solution. This unit uses compressed air to power FloJet air pumps which draw 2 chemicals from bulk containers and dispense them into any other containers through 15 foot discharge hoses and trigger guns.
.jpg)
.jpg?width=829&height=1000&name=941602__image__941602_(cptnd).jpg)
Key Features
- Transfers chemicals from bulk containers into any sized container or cleaning equipment safely and without mess
- Increases employee safety and labor efficiency
- Transfer chemical concentrate or ready-to-use solution
- Quick, easy set up
- Requires only compressed air to operate
- Pumps mounted on a unique Lafferty quick-release, stainless steel bracket to easily replace pumps
- The convenient positive shut-off trigger gun prevents the unit from running unattended
- Discharge hose stabilizer coupling protects pump discharge outlet from abuse
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- See transfer systems for up to 5 chemicals and other chemical management systems in Catalog 9

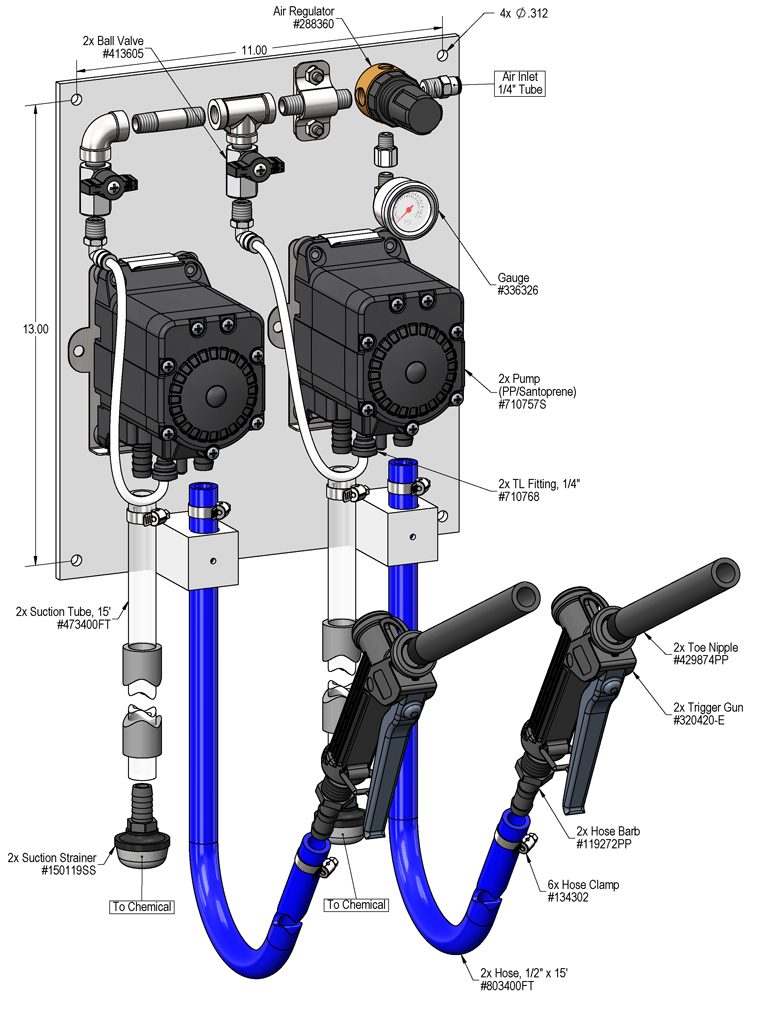

Includes
- Polypropylene mounting panel
- Air regulator and air pressure gauge
- 2 - FloJet AODD Pumps with Santoprene diaphragms
- 2 - Stainless steel quick release brackets
- 2 - 15' chemical pickup tubes and discharge hoses
- 2 - Polypropylene trigger guns with stainless steel and EPDM internal components
Overview
Key Features
- Transfers chemicals from bulk containers into any sized container or cleaning equipment safely and without mess
- Increases employee safety and labor efficiency
- Transfer chemical concentrate or ready-to-use solution
- Quick, easy set up
- Requires only compressed air to operate
- Pumps mounted on a unique Lafferty quick-release, stainless steel bracket to easily replace pumps
- The convenient positive shut-off trigger gun prevents the unit from running unattended
- Discharge hose stabilizer coupling protects pump discharge outlet from abuse
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- See transfer systems for up to 5 chemicals and other chemical management systems in Catalog 9
Includes
- Polypropylene mounting panel
- Air regulator and air pressure gauge
- 2 - FloJet AODD Pumps with Santoprene diaphragms
- 2 - Stainless steel quick release brackets
- 2 - 15' chemical pickup tubes and discharge hoses
- 2 - Polypropylene trigger guns with stainless steel and EPDM internal components
