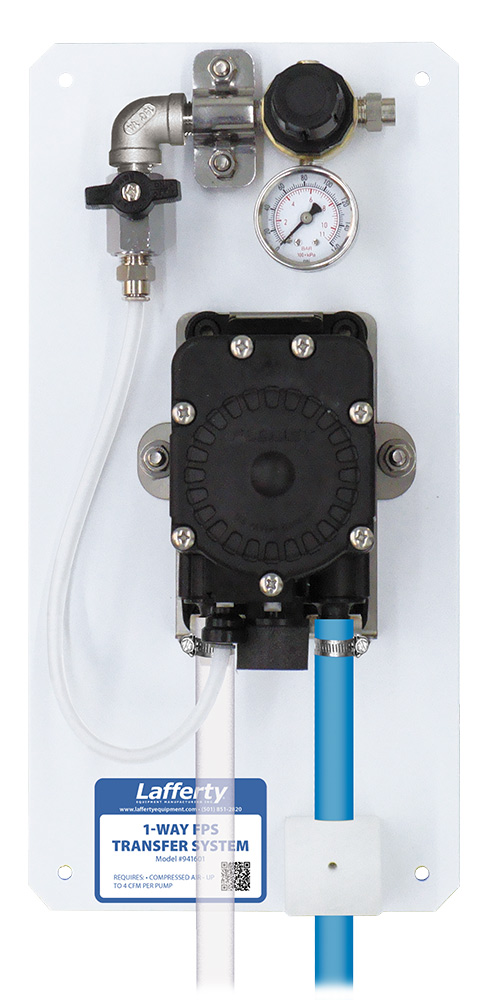

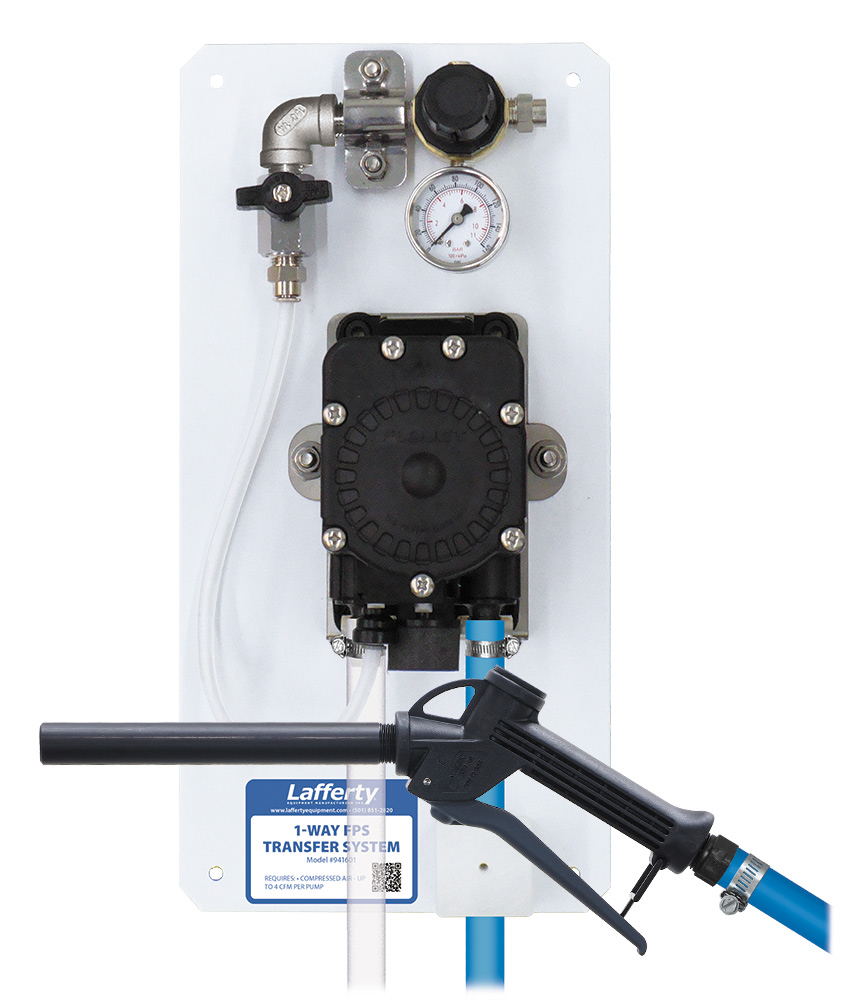

1-Way FPS Transfer System
Air Assisted
General Purpose
Transfer
Wall Mount / Stationary
The 1-Way FPS Transfer System is a chemical transfer system for filling any sized container with chemical concentrate or ready-to-use solution. Compressed air powers a FloJet air pump which draws chemical from the drum or tote and dispenses it into any other container through a 15 foot discharge hose and trigger gun. This unit uses a ball valve as the on/off control for the pump.
Key Features
- Transfers chemical concentrate or ready-to-use solution from bulk containers into any sized container.
- Safely fills buckets, cleaning equipment, vats, tanks or anything without mess.
- Increases employee safety and labor efficiency
- Requires only compressed air to operate
- Pump mounted on a unique Lafferty quick-release, stainless steel bracket to easily replace pumps
- The convenient positive shut-off trigger gun prevents the unit from running unattended
- Discharge hose stabilizer coupling protects pump discharge outlet from abuse
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- See transfer systems for up to 5 chemicals and other chemical management systems in Catalog 9

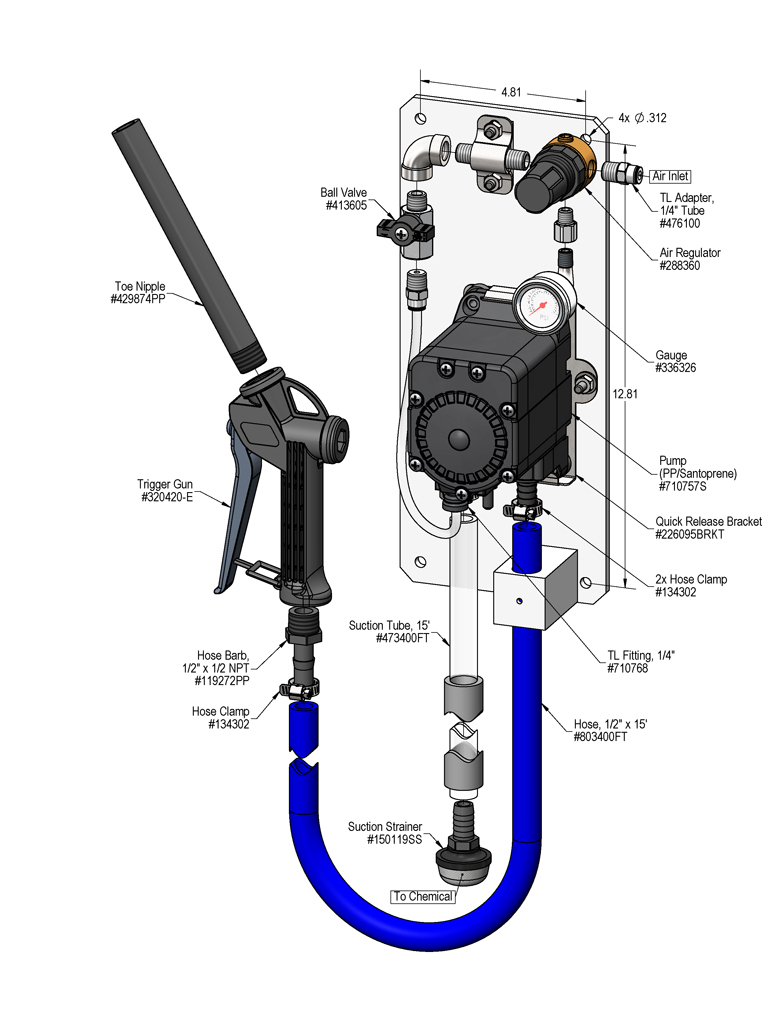

Includes
- Polypropylene mounting panel
- Air regulator and air pressure gauge
- FloJet AODD Pump with Santoprene diaphragms
- Stainless steel quick release bracket
- 15' chemical pickup tube and discharge hose
- Polypropylene trigger gun with stainless steel and EPDM internal components
Overview
Key Features
- Transfers chemical concentrate or ready-to-use solution from bulk containers into any sized container.
- Safely fills buckets, cleaning equipment, vats, tanks or anything without mess.
- Increases employee safety and labor efficiency
- Requires only compressed air to operate
- Pump mounted on a unique Lafferty quick-release, stainless steel bracket to easily replace pumps
- The convenient positive shut-off trigger gun prevents the unit from running unattended
- Discharge hose stabilizer coupling protects pump discharge outlet from abuse
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- See transfer systems for up to 5 chemicals and other chemical management systems in Catalog 9
Includes
- Polypropylene mounting panel
- Air regulator and air pressure gauge
- FloJet AODD Pump with Santoprene diaphragms
- Stainless steel quick release bracket
- 15' chemical pickup tube and discharge hose
- Polypropylene trigger gun with stainless steel and EPDM internal components
