Portable 20 Gallon Liberty Sprayer
Air Assisted
General Purpose
N/A: Compressed-Air Pump
Portable
Sanitize / Spray

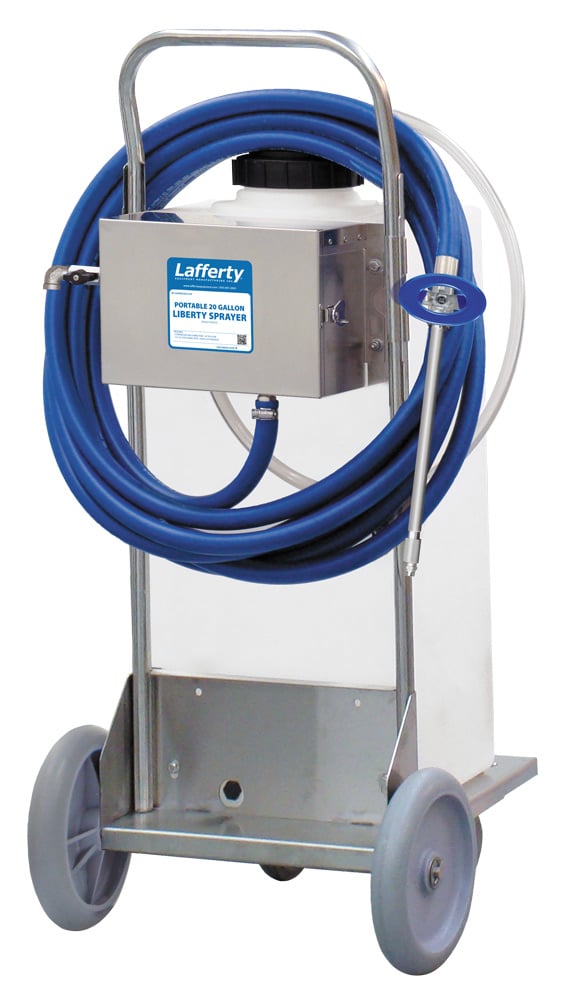

The Portable 20 Gallon Liberty Sprayer is a chemical spray applicator for projecting ready-to-use chemical solution on to a variety of surfaces. This unit features an all stainless steel 4-wheel cart and lockable enclosure and uses a cost-effective Flojet air-operated, double-diaphragm pump to draw ready-to-use chemical from the 20 gallon tank. The solution is then discharged through the hose, wand and fan pattern spray nozzle. Includes 2 spray nozzles providing either 16 or 28 minutes of spraying time per 20 gallons of solution depending on the nozzle used.
Key Features
- Draws pre-diluted chemical from the 20 gallon tank
- Cost-effective Flojet AODD pump (Santoprene diaphragms)
- The chemical flow rate is regulated to match the mid-range of the air pump’s specified operating range which protects the pump from running, repetitively, at maximum capacity
- Alternate nozzles to project a low or medium volume fan pattern spray
- Sprays for 16 or 28 minutes per tank fill
- Powered solely by compressed air
- Corrosion resistant wetted components ensure durability and years of reliable service
- Balanced weight distribution to prevent tipping
- Available in five color-coded configurations
- Available as a wall-mounted unit (#940005)
- See other air-operated sprayers and foamers in Catalog 4

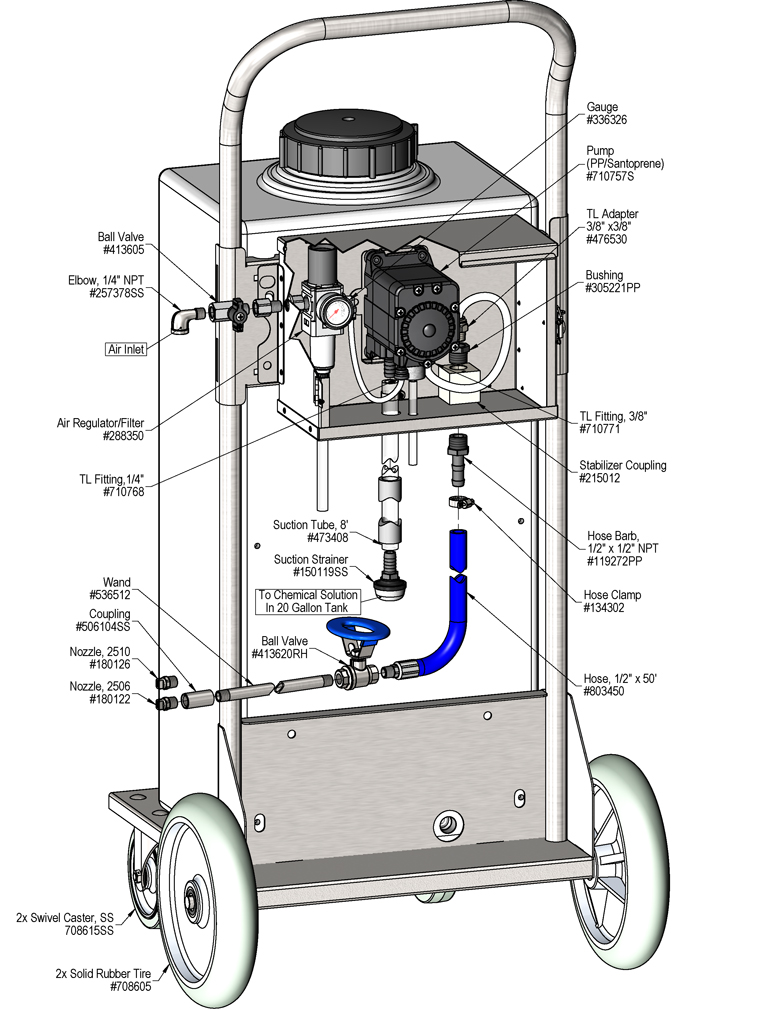

Includes
- All stainless steel 4-wheel cart assembly
- Non-marking tires & stainless steel swivel casters
- 20 gallon, wide-mouth, polyethylene chemical tank
- Lockable, stainless steel pump enclosure
- Air inlet ball valve and regulator/filter
- Flojet 1/4" AODD pump
- 50' discharge hose, stainless steel ball valve, stainless steel wand & 2 fan nozzles
