Liberty Sprayer
Air Assisted
General Purpose
N/A: Compressed-Air Pump
Sanitize / Spray
Wall Mount / Stationary
The Liberty Sprayer is a chemical spray applicator for projecting ready-to-use chemical solution on to a variety of surfaces. This unit features a stainless steel enclosure and uses a cost-effective Flojet air-operated, double-diaphragm pump to draw pre-diluted chemical from a user-supplied tank. The solution is then discharged through the hose, wand and fan pattern spray nozzle. Includes 2 nozzles projecting a low or medium volume spray.
Key Features
- Draws pre-diluted chemical from a user-supplied tank
- Cost-effective Flojet AODD pump (Santoprene diaphragms)
- The chemical flow rate is regulated to match the mid-range of the air pump’s specified operating range which protects the pump from running, repetitively, at maximum capacity
- Alternate nozzles to project a low or medium volume fan pattern spray
- Powered solely by compressed air
- Corrosion resistant wetted components ensure durability and years of reliable service
- Available as a portable unit (#940119)
- See other air-operated sprayers and foamers in Catalog 4

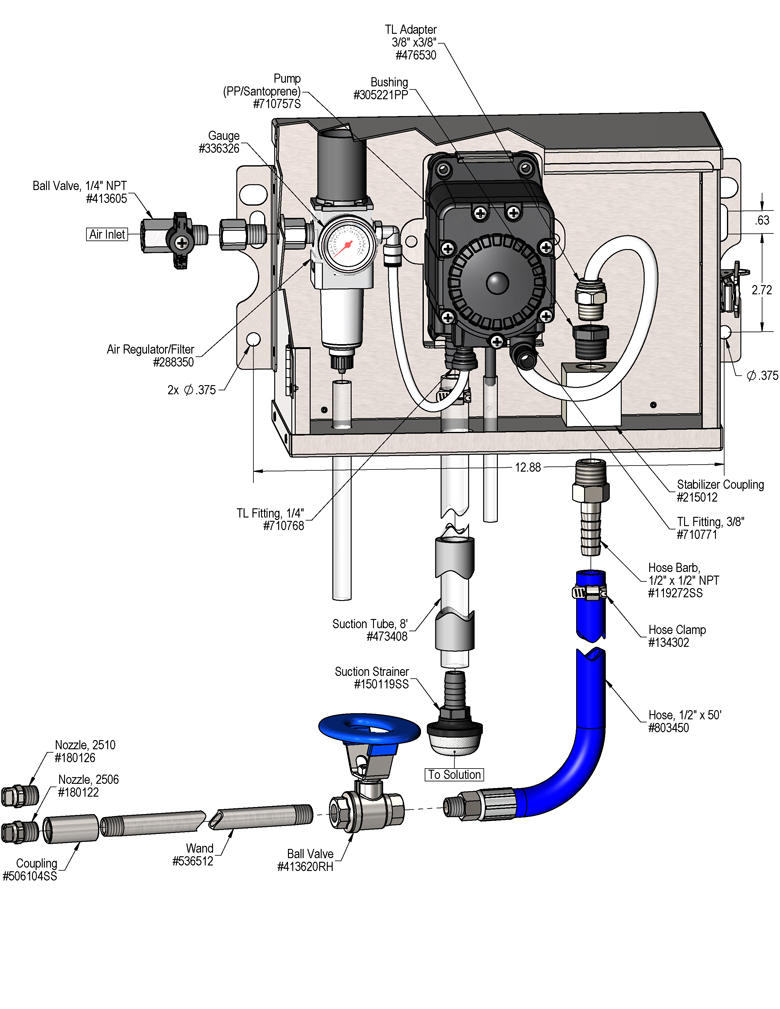

Includes
- Lockable, stainless steel pump enclosure
- Air inlet ball valve and regulator/filter
- Flojet 1/4" AODD pump
- 50' discharge hose, stainless steel ball valve, stainless steel wand & 2 fan nozzles
