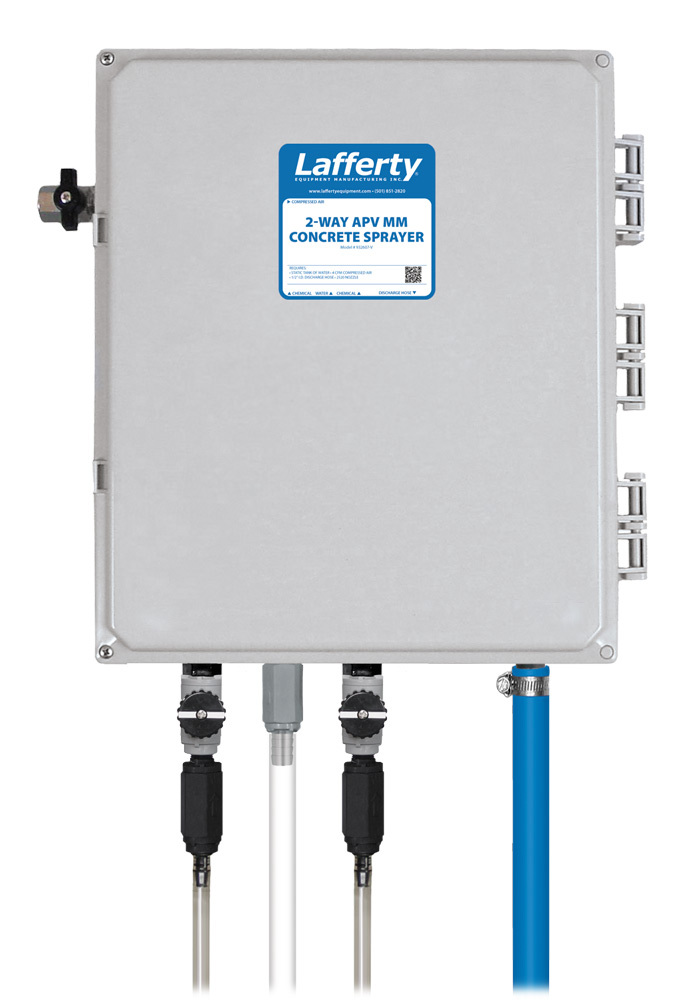

The 2-Way APV MM Concrete Sprayer is a spray applicator for projecting 2 highly corrosive chemicals such as those used to remove concrete and for aluminum brightening. It is designed for facilities with low or no water pressure. This acid-resistant system uses an air-operated, double-diaphragm, Flojet pump to draw water and chemical concentrate from separate static tanks and blend them to create a wide range of dilution ratios. A uniform spray is then projected through the hose, wand and fan nozzle on to any surface. Alternate between 2 different concentrations or chemicals using ball valves.
Key Features
- Draws water and chemical concentrate through a unique metering manifold that achieves virtually any dilution ratio
- The cost-effective 1/4" Flojet AODD pump draws water and chemical from static tanks
- Fan pattern spray nozzle for fast, efficient coverage
- Corrosion resistant wetted components ensure durability and years of reliable service
- Available with an integrated water float tank (#932657-V)
- See other Lafferty acid sprayers and foamers in Catalog 8

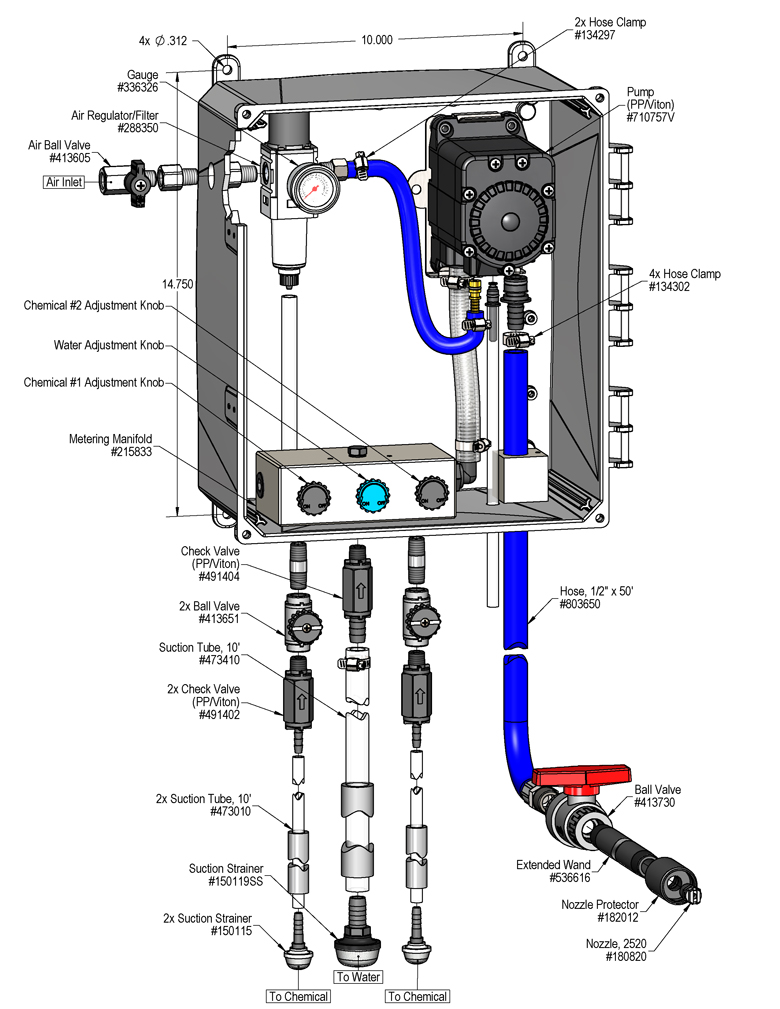

Includes
- Chemical resistant plastic enclosure
- Air inlet ball valve and regulator/filter
- Flojet AODD pump with Viton diaphragms
- Machined chemical/water metering manifold
- 50' discharge hose, PVC ball valve, polypropylene wand and fan nozzle with nozzle protector
Overview
Key Features
- Draws water and chemical concentrate through a unique metering manifold that achieves virtually any dilution ratio
- The cost-effective 1/4" Flojet AODD pump draws water and chemical from static tanks
- Fan pattern spray nozzle for fast, efficient coverage
- Corrosion resistant wetted components ensure durability and years of reliable service
- Available with an integrated water float tank (#932657-V)
- See other Lafferty acid sprayers and foamers in Catalog 8
Includes
- Chemical resistant plastic enclosure
- Air inlet ball valve and regulator/filter
- Flojet AODD pump with Viton diaphragms
- Machined chemical/water metering manifold
- 50' discharge hose, PVC ball valve, polypropylene wand and fan nozzle with nozzle protector
