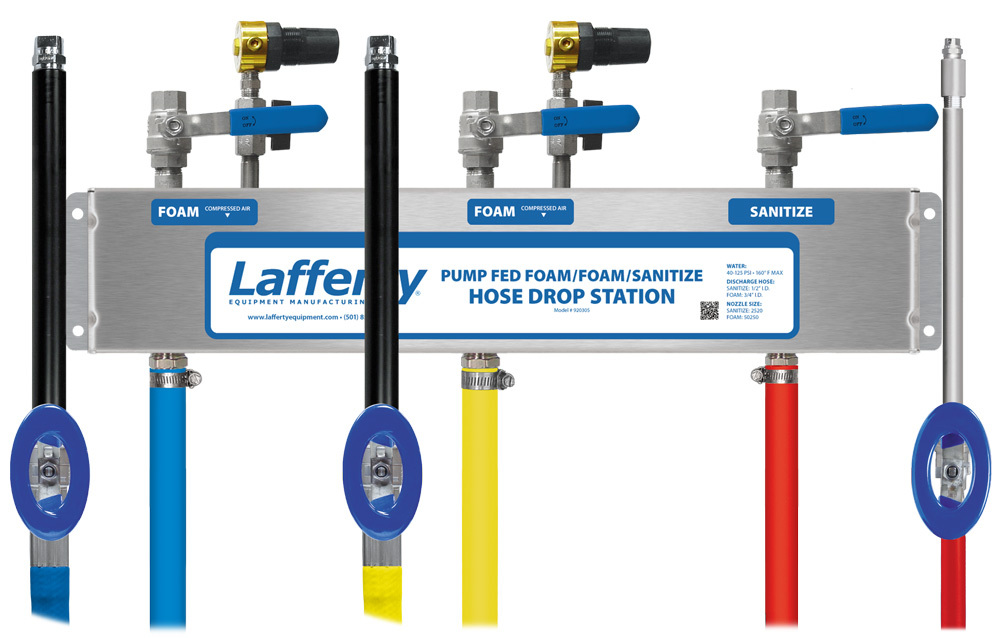

Pump Fed Foam / Foam / Sanitize Hose Drop Station
Air Assisted
Foam (Multiple)
General Purpose
Medium Volume
N/A: Pump Fed Central Systems
Polypropylene Body
Pump Fed
Sanitize, Foam
Wall Mount / Stationary
The Pump Fed Foam/ Foam/ Sanitize Hose Drop Station is a combination applicator for projecting two ready-to-use chemicals as foam and another as a sanitizing spray. This unit receives 3 separate ready-to-use chemical solutions from separate central chemical feed systems. Rich, clinging foam is created by injecting compressed air into the foaming solution to greatly increase volume and coverage ability. Foam is then projected through the foam hose and fan nozzle on to any surface up close or at distances up to 12 feet. Sanitizer solution, or any other chemical, is projected through a separate hose as a fan pattern spray.
Key Features
- Receives 3 ready-to-use chemical solutions from separate central chemical feed systems
- Designed to foam with 2 different foaming chemicals and sanitize medium to large areas
- Projects a medium volume of rich, clinging foam which increases chemical contact time and effectiveness
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- Fan pattern foam nozzle for fast coverage (up to 12' range)
- Covers up to 500 sq ft (46.5 sq m) in 2 minutes
- Adjustable foam consistency (wet/dry)
- Stainless steel and polypropylene wetted components ensure durability and years of trouble-free performance
- Available without a sanitize function (#920205)
- See other Lafferty pump fed applicators in Catalog 5
- Design the optimal central chemical feed system with the Lafferty Pump-Fed Central System Planning Tool

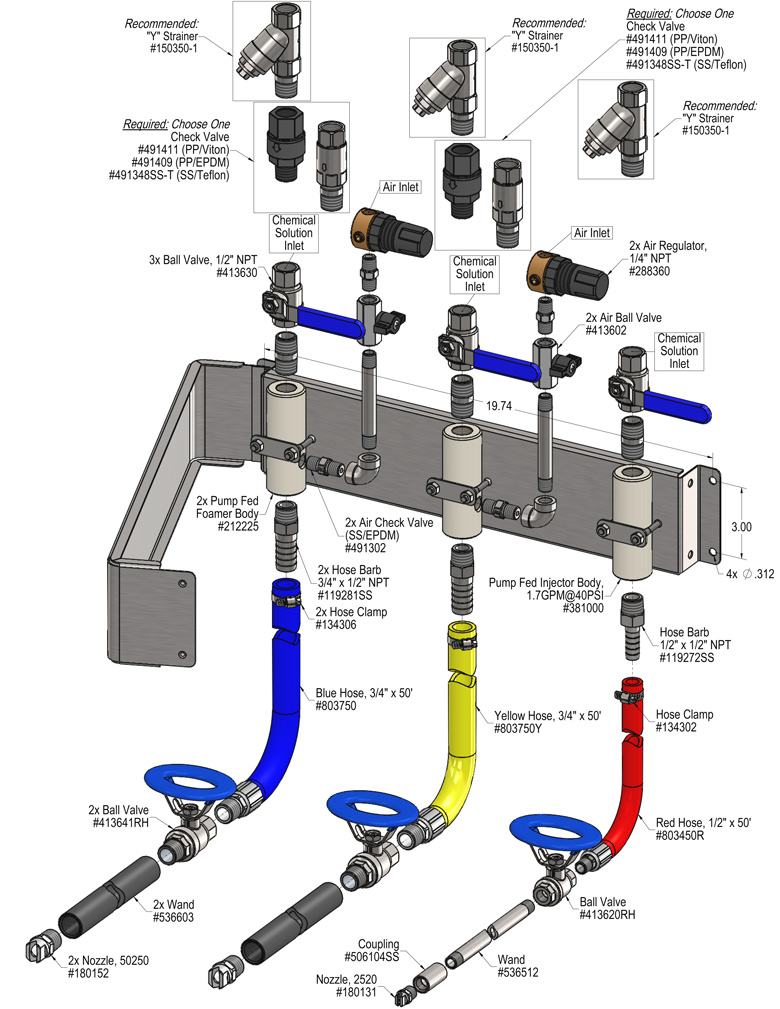

Includes
- Stainless steel mounting bracket
- Stainless steel inlet and discharge ball valves
- Machined polypropylene foamer and sanitizer bodies
- 50' red foam hose, polypropylene foam wand & fan nozzle
- 50' blue foam hose, polypropylene foam wand & fan nozzle
- 50' red sanitize hose, polypropylene wand & fan nozzle
