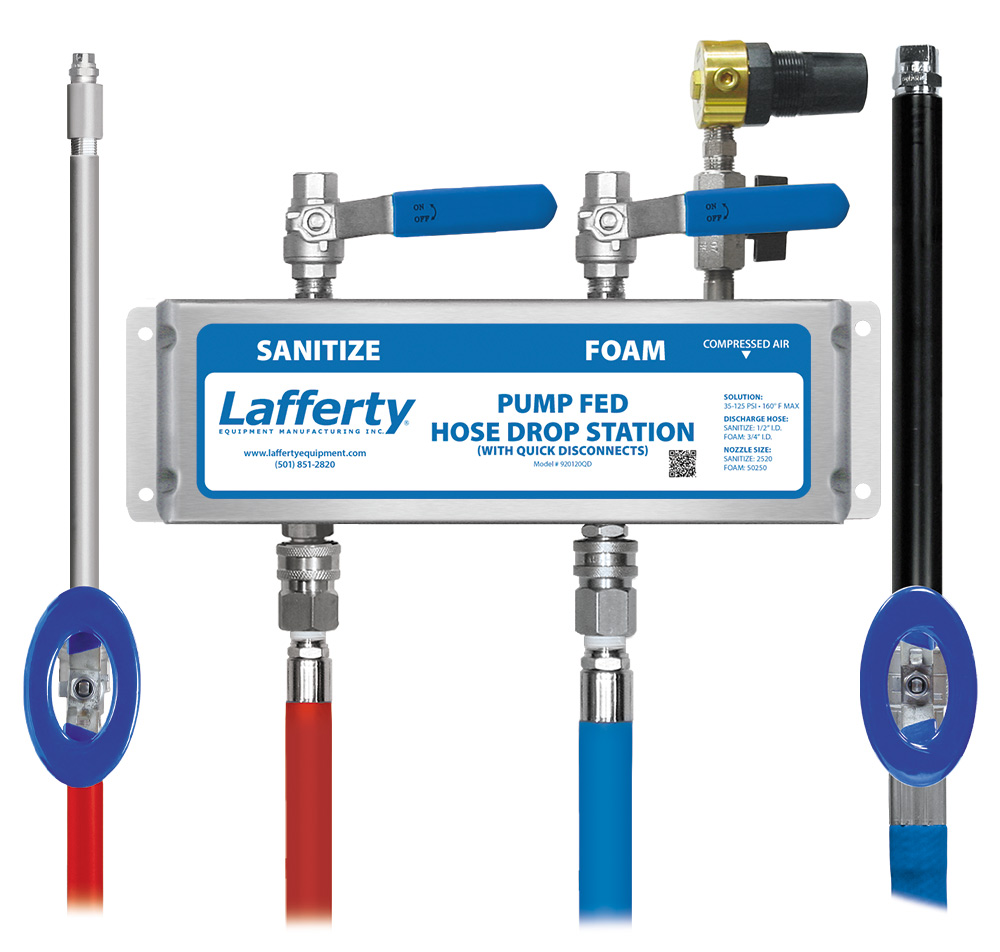

Pump Fed Sanitize / Foam Hose Drop Station W/ QDs
Air Assisted
General Purpose
Medium Volume
N/A: Pump Fed Central Systems
Polypropylene Body
Pump Fed
Sanitize, Foam
Wall Mount / Stationary
The Pump Fed Sanitize / Foam Hose Drop Station is a combination applicator for projecting one ready-to-use chemical as foam and another as a sanitizing spray through two quick-disconnect hoses. This unit receives 2 separate ready-to-use chemical solutions from separate central chemical feed systems. Rich, clinging foam is created by injecting compressed air into the foaming solution to greatly increase volume and coverage ability. Foam is then projected through the foam hose and fan nozzle on to any surface up close or at distances up to 12 feet. Sanitizer solution, or any other chemical, is projected through a separate hose as a fan pattern spray.
Key Features
- Receives 2 ready-to-use chemical solutions from separate central chemical feed systems
- Quick disconnects allow the hoses to be easily removed from the production floor when not in use
- Designed to foam and sanitize medium to large areas
- Projects a medium volume of rich, clinging foam which increases chemical contact time and effectiveness
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- Fan pattern foam nozzle for fast coverage (up to 12' range)
- Covers up to 500 sq ft (46.5 sq m) in 2 minutes
- Adjustable foam consistency (wet/dry)
- Projects sanitizer solution as a fan pattern spray for quick, uniform coverage
- Stainless steel and polypropylene wetted components ensure durability and years of trouble-free performance
- Available without quick disconnects (#920120)
- See other Lafferty pump fed applicators in Catalog 5
- Design the optimal central chemical feed system with the Lafferty Pump-Fed Central System Planning Tool

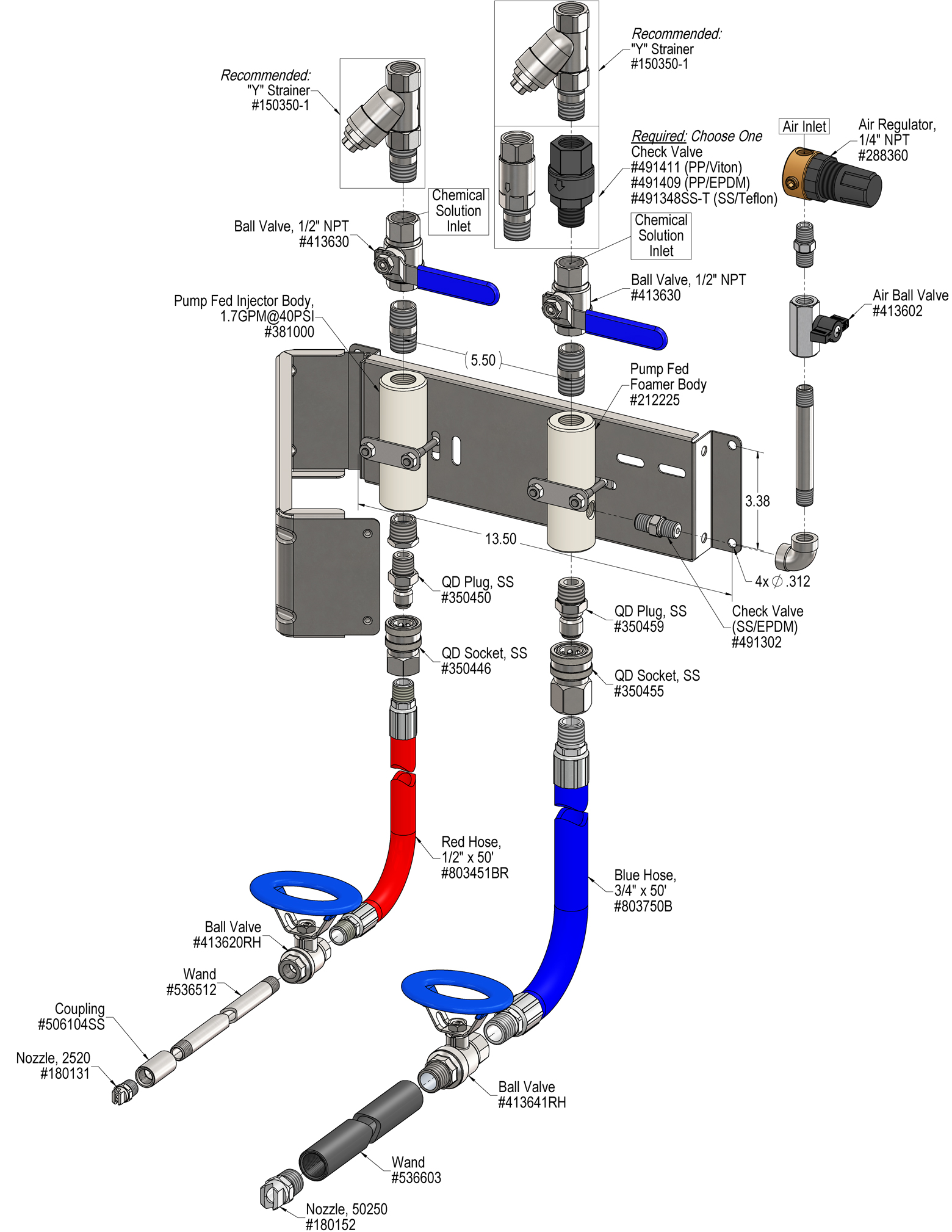

Includes
- Stainless steel mounting bracket
- Stainless steel inlet and discharge ball valves
- Machined polypropylene foamer and sanitizer bodies
- Stainless steel hose quick disconnects
- 50' foam hose, polypropylene foam wand & fan nozzle
- 50' sanitize hose, polypropylene wand & fan nozzle
Loading related posts...
Overview
Key Features
- Receives 2 ready-to-use chemical solutions from separate central chemical feed systems
- Quick disconnects allow the hoses to be easily removed from the production floor when not in use
- Designed to foam and sanitize medium to large areas
- Projects a medium volume of rich, clinging foam which increases chemical contact time and effectiveness
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- Fan pattern foam nozzle for fast coverage (up to 12' range)
- Covers up to 500 sq ft (46.5 sq m) in 2 minutes
- Adjustable foam consistency (wet/dry)
- Projects sanitizer solution as a fan pattern spray for quick, uniform coverage
- Stainless steel and polypropylene wetted components ensure durability and years of trouble-free performance
- Available without quick disconnects (#920120)
- See other Lafferty pump fed applicators in Catalog 5
- Design the optimal central chemical feed system with the Lafferty Pump-Fed Central System Planning Tool
Includes
- Stainless steel mounting bracket
- Stainless steel inlet and discharge ball valves
- Machined polypropylene foamer and sanitizer bodies
- Stainless steel hose quick disconnects
- 50' foam hose, polypropylene foam wand & fan nozzle
- 50' sanitize hose, polypropylene wand & fan nozzle
