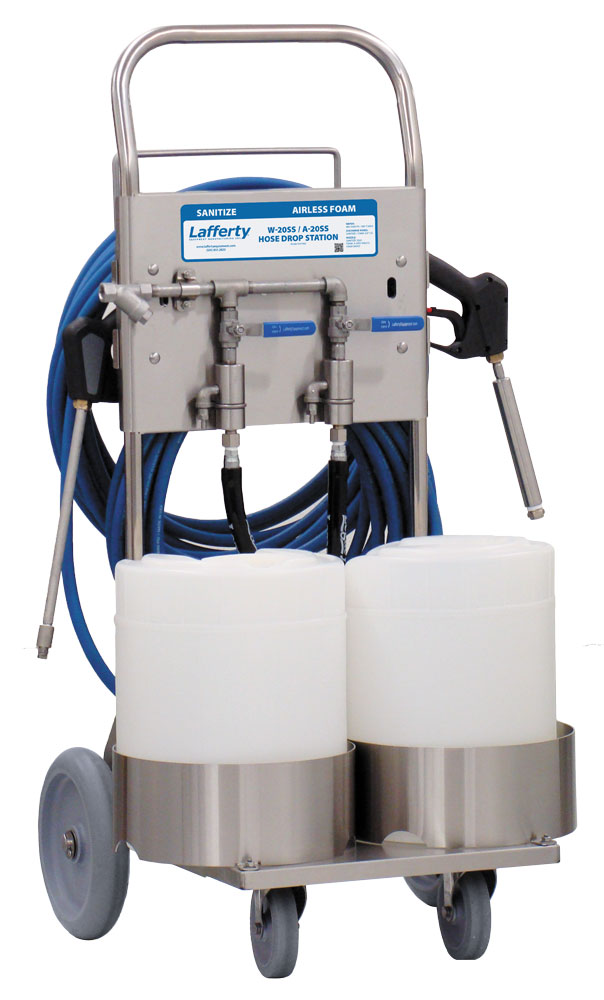

Portable W-20SS Sanitize / A-20SS Airless Foam Hose Drop Station
Airless
General Purpose
High Pressure
High Volume
Medium Volume
Portable
Sanitize, Foam
Stainless Steel Body
Venturi Dilution
The Portable W-20SS Sanitize / A-20SS Airless Foam Hose Drop Station is a combination system for applying one chemical as foam and another as a sanitizing spray, without compressed air. Featuring an all stainless steel cart assembly, this stainless steel venturi injection system uses high water pressure (400 - 1000 PSI) to draw and blend chemical concentrates into the water streams to create accurately diluted solutions. Precision metering tips are used to control chemical usage. Foaming chemical solution flows through the foam hose and trigger gun to the "airless" foam wand which draws in atmospheric air to create and project wet, clinging foam at distances up to 12 feet. Sanitizer solution, or any other chemical, is projected using the trigger gun and fan nozzle.
Key Features
- No compressed air required
- Designed for foaming & sanitizing medium to large areas
- Projects wet, clinging foam which increases chemical contact time and effectiveness
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- Fan pattern foam nozzle for fast coverage at distances up to 10' and zero degree nozzle for up to 12' foam throw (depending on water pressure)
- Sanitize using a dedicated hose, trigger gun & fan nozzle
- Stainless steel components ensure years of outstanding performance with minimal maintenance
- Available with a rinse function (#917927)
- See other high water pressure units in Catalog 3
Includes
- All stainless steel 4-wheel cart with non-marking tires and integrated hose rack
- Heavy-duty, stainless steel swivel casters
- 2 stainless steel, round, 5 gallon jug racks (square optional)
- Stainless steel inlet ball valves
- Machined stainless steel foamer body
- Machined stainless steel sanitizer body
- Machined stainless steel airless foam wand
- 20 color-coded precision metering tips to set dilution ratios
- 50' foam hose & trigger gun
- Fan pattern foam nozzle & zero degree nozzle
- 50' sanitize hose, trigger gun, wand and fan nozzle
Loading related posts...
Overview
Key Features
- No compressed air required
- Designed for foaming & sanitizing medium to large areas
- Projects wet, clinging foam which increases chemical contact time and effectiveness
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- Fan pattern foam nozzle for fast coverage at distances up to 10' and zero degree nozzle for up to 12' foam throw (depending on water pressure)
- Sanitize using a dedicated hose, trigger gun & fan nozzle
- Stainless steel components ensure years of outstanding performance with minimal maintenance
- Available with a rinse function (#917927)
- See other high water pressure units in Catalog 3
Includes
- All stainless steel 4-wheel cart with non-marking tires and integrated hose rack
- Heavy-duty, stainless steel swivel casters
- 2 stainless steel, round, 5 gallon jug racks (square optional)
- Stainless steel inlet ball valves
- Machined stainless steel foamer body
- Machined stainless steel sanitizer body
- Machined stainless steel airless foam wand
- 20 color-coded precision metering tips to set dilution ratios
- 50' foam hose & trigger gun
- Fan pattern foam nozzle & zero degree nozzle
- 50' sanitize hose, trigger gun, wand and fan nozzle
