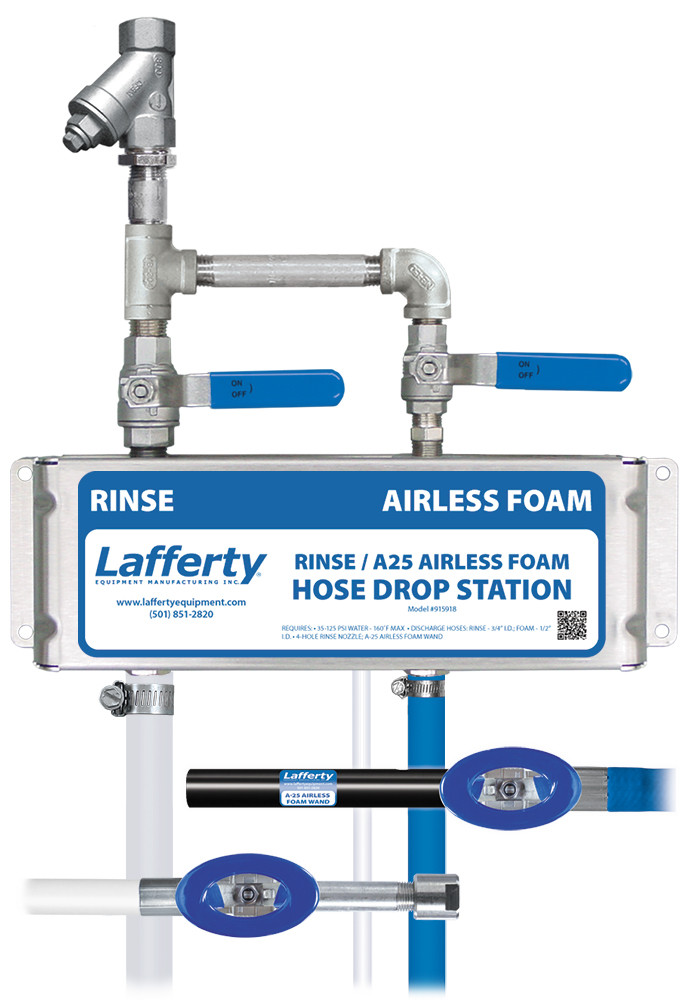

Rinse / A-25 Airless Foam Hose Drop Station
Airless
City Pressure
Foam, Rinse
General Purpose
Medium Volume
Polypropylene Body
Venturi Dilution
Wall Mount / Stationary
The Rinse/A-25 Airless Foam Hose Drop Station is a combination medium volume foam applicator for projecting foaming chemicals on to any surface up close or at a distance and for rinsing, without compressed air. This venturi injection system uses city water pressure (35 - 125 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution. The solution then flows through the discharge hose to the "airless" foam wand which draws in atmospheric air to create and project wet, clinging foam at distances up to 6 feet. Rinse at full pressure through a separate hose and unique, powerful 4-hole nozzle.
Key Features
- No compressed air required
- Designed for foaming & rinsing medium to large surfaces
- Projects wet, clinging foam which increases chemical contact time and effectiveness
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- Projects foam up to 6' (depending on water pressure)
- All stainless steel and polypropylene wetted components ensure years of trouble-free performance
- Industrial-strength design holds up in tough environments
- Available without a rinse function (#970525)
- See other configurations of Lafferty city water pressure foamers in Catalog 1

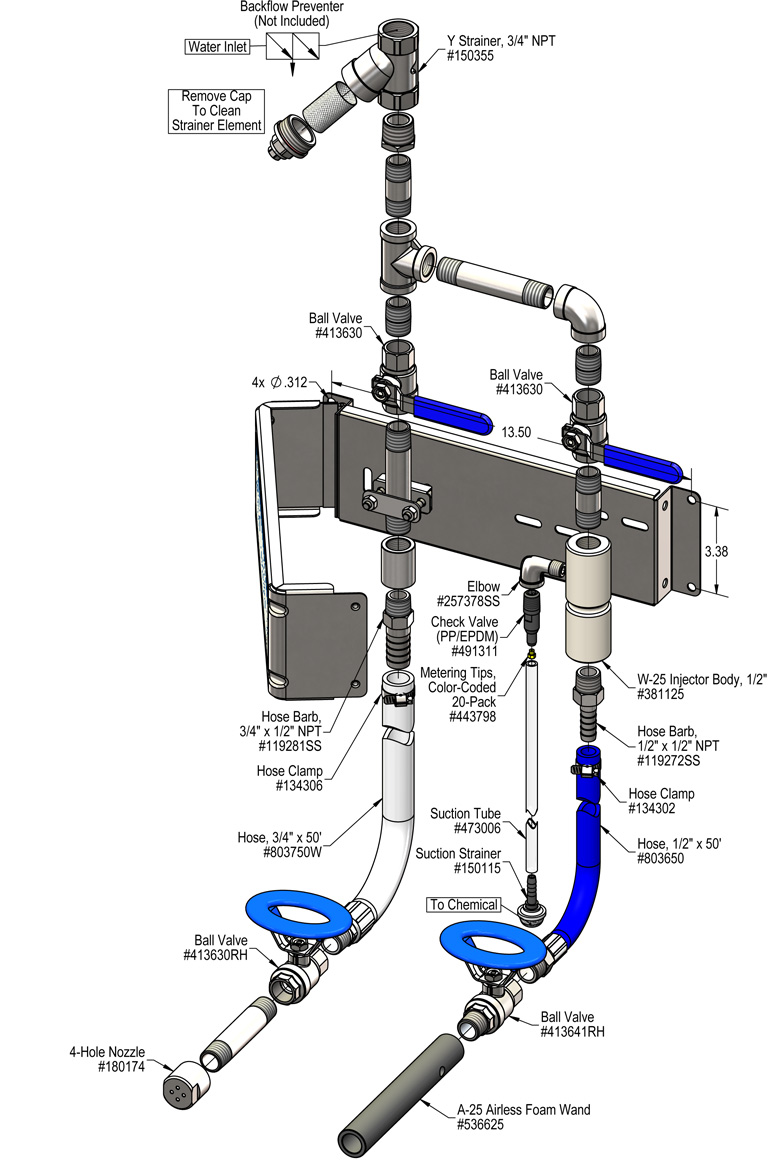

Includes
- Stainless steel mounting bracket
- Machined polypropylene foamer body
- Stainless steel inlet and discharge ball valves
- 20 color-coded precision metering tips to set dilution ratios
- 50' foam hose & machined polypropylene airless foam wand
- 50' rinse hose & stainless steel 4-hole nozzle
Loading related posts...
Overview
Key Features
- No compressed air required
- Designed for foaming & rinsing medium to large surfaces
- Projects wet, clinging foam which increases chemical contact time and effectiveness
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- Projects foam up to 6' (depending on water pressure)
- All stainless steel and polypropylene wetted components ensure years of trouble-free performance
- Industrial-strength design holds up in tough environments
- Available without a rinse function (#970525)
- See other configurations of Lafferty city water pressure foamers in Catalog 1
Includes
- Stainless steel mounting bracket
- Machined polypropylene foamer body
- Stainless steel inlet and discharge ball valves
- 20 color-coded precision metering tips to set dilution ratios
- 50' foam hose & machined polypropylene airless foam wand
- 50' rinse hose & stainless steel 4-hole nozzle
