517 Sanitize / Rinse / LV Foam Hose Drop Station
Air Assisted
City Pressure
General Purpose
Low Volume
Polypropylene Body
Sanitize, Rinse, Foam
Venturi Dilution
Wall Mount / Stationary

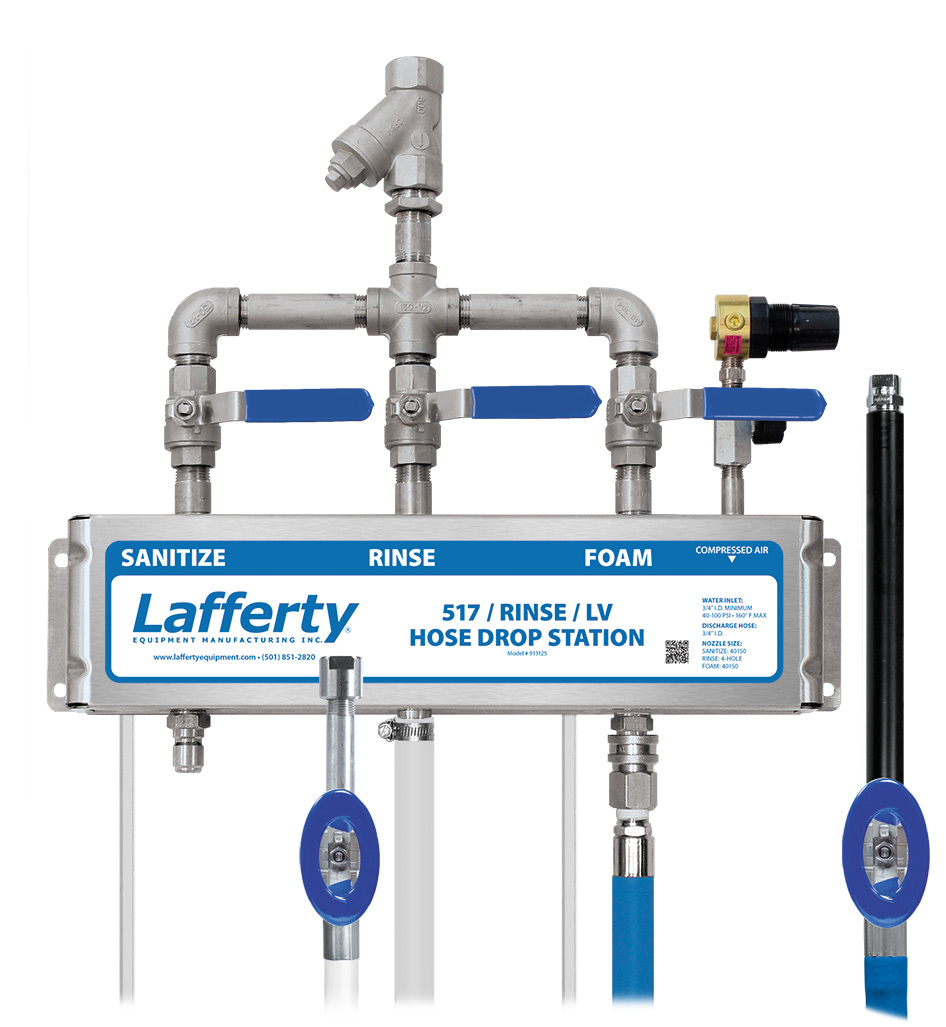

The 517 Sanitize/Rinse/LV Foam Hose Drop Station is a combination applicator for applying one chemical as a low volume of foam, another as a sanitizing spray and for rinsing. This venturi injection system uses standard city water pressure (35 - 125 PSI) to draw and blend chemical concentrates into the water streams to create accurately diluted solutions using precision metering tips to control chemical usage. A low volume of rich, clinging foam is created by injecting compressed air into the foaming solution to greatly increase volume and coverage ability. The foaming solution is then projected through the foam hose and fan nozzle at distances up to 9 feet. The sanitizer solution is projected as a "flooding" spray for fast complete coverage. Rinse at full pressure using the unique, powerful 4-hole nozzle.
Key Features
- Designed for precision foam application, and to rinse and sanitize medium to large surfaces and objects
- Projects a low volume of rich, clinging foam which increases chemical contact time and effectiveness
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- Fan pattern foam nozzle (up to 9' range)
- Covers up to 500 sq ft (46.5 sq m) in 4.5 minutes
- Adjustable foam consistency (wet/dry)
- Rinse at full pressure using the powerful 4-hole nozzle
- Dilutes concentrated sanitizers to the lean ratios required for no-rinse applications in food plants
- Sanitizer is projected as a "flooding spray"
- Stainless steel and polypropylene components ensure years of trouble-free performance
- Available with a higher volume foam output (#915225)
- See other city water pressure foamers in Catalog 1

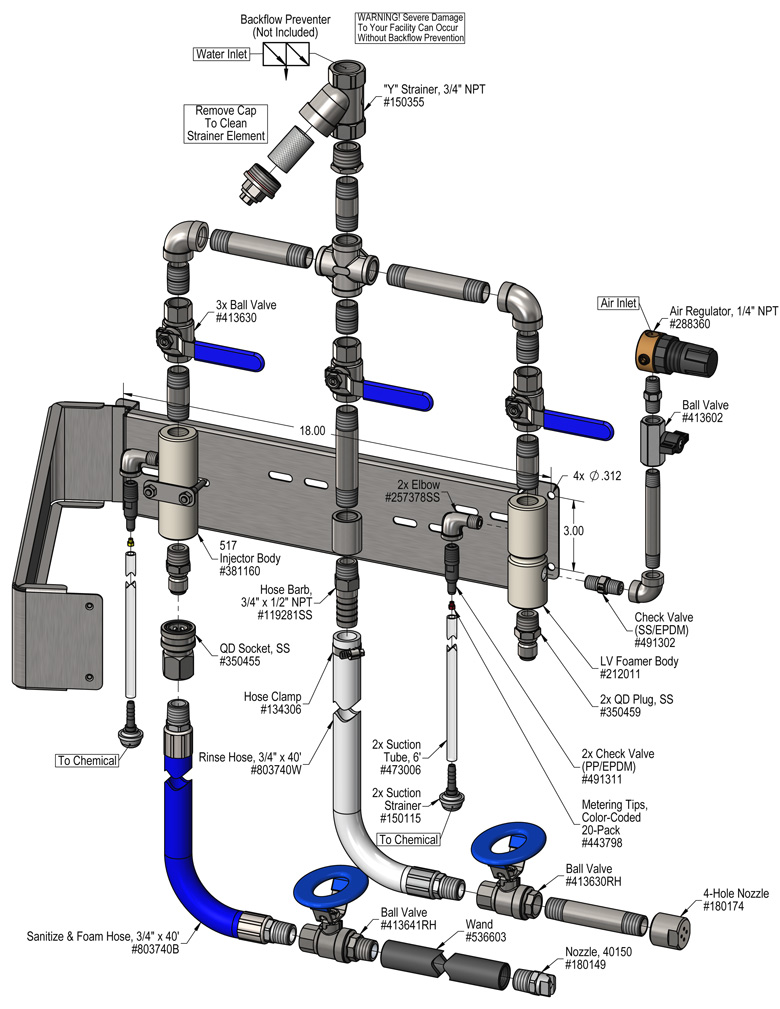

Includes
- Stainless steel mounting bracket
- Stainless steel inlet and discharge ball valves
- Machined polypropylene foamer and sanitizer bodies
- 20 color-coded precision metering tips to set dilution ratios
- 40' combo foam / sanitize hose, polypropylene foam wand and fan nozzle
- 40' rinse hose and stainless steel 4-hole nozzle
Loading related posts...
Overview
Key Features
- Designed for precision foam application, and to rinse and sanitize medium to large surfaces and objects
- Projects a low volume of rich, clinging foam which increases chemical contact time and effectiveness
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- Fan pattern foam nozzle (up to 9' range)
- Covers up to 500 sq ft (46.5 sq m) in 4.5 minutes
- Adjustable foam consistency (wet/dry)
- Rinse at full pressure using the powerful 4-hole nozzle
- Dilutes concentrated sanitizers to the lean ratios required for no-rinse applications in food plants
- Sanitizer is projected as a "flooding spray"
- Stainless steel and polypropylene components ensure years of trouble-free performance
- Available with a higher volume foam output (#915225)
- See other city water pressure foamers in Catalog 1
Includes
- Stainless steel mounting bracket
- Stainless steel inlet and discharge ball valves
- Machined polypropylene foamer and sanitizer bodies
- 20 color-coded precision metering tips to set dilution ratios
- 40' combo foam / sanitize hose, polypropylene foam wand and fan nozzle
- 40' rinse hose and stainless steel 4-hole nozzle
