Drum, Pail and Jug-Mounted Equipment

Drum, Pail and Jug-Mounted Equipment

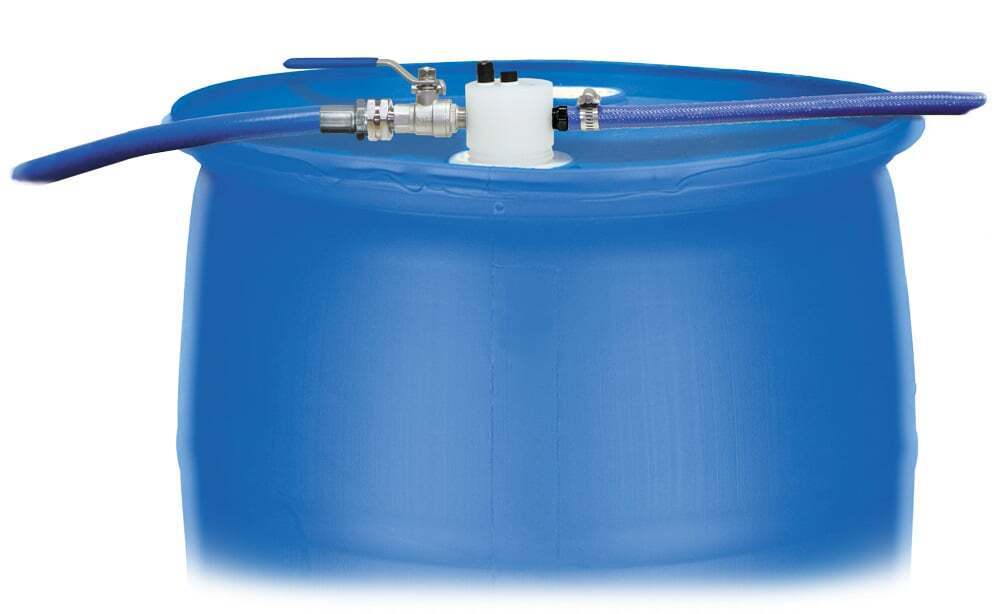

Lafferty manufactures venturi Foamers, Sprayers, and Mixing Stations that mount onto, and dispense directly from, containers of concentrated chemical.

No compressed air required! Simply connect city water pressure.
Product Image

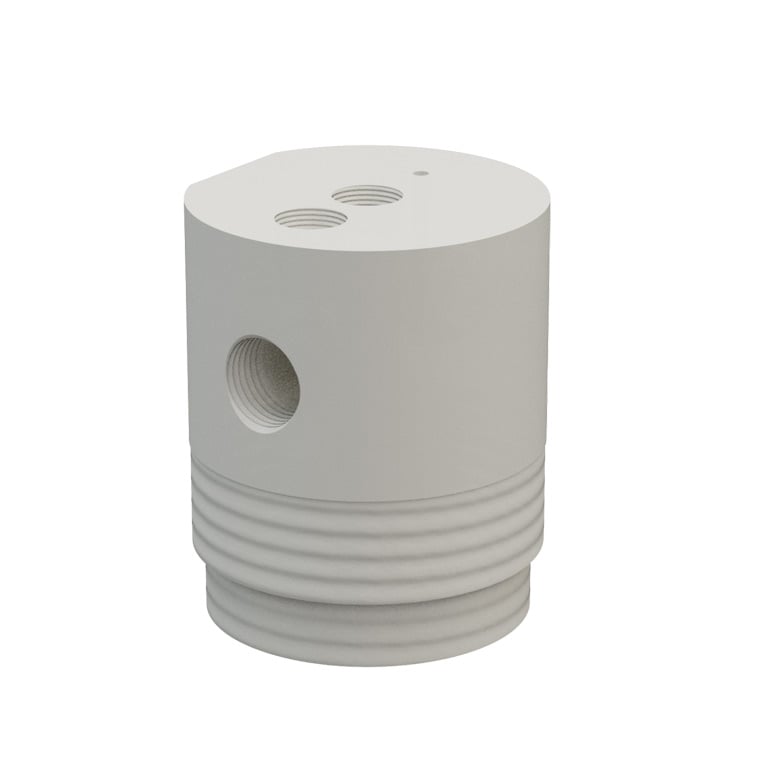

The drum bung Uni-Body is machined from solid polypropylene and features both fine and coarse male threads to fit most common bung openings.
Product Diagram

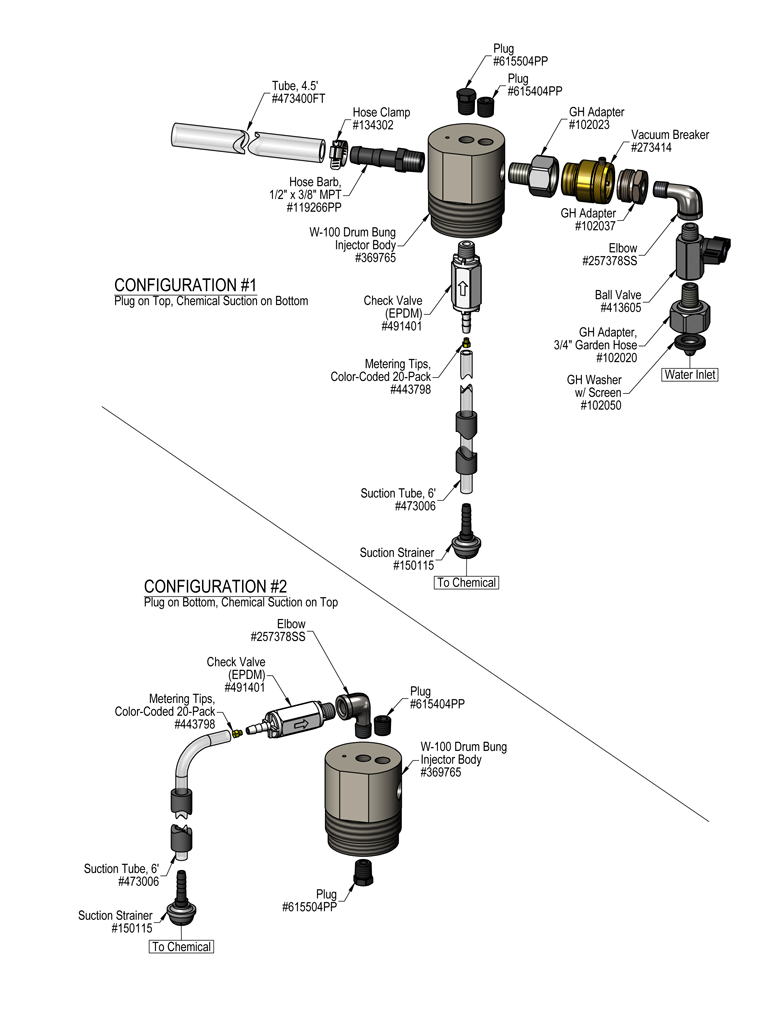

Choice of installation configurations. Option #1 discourages users from adjusting the dilution (metering tip).

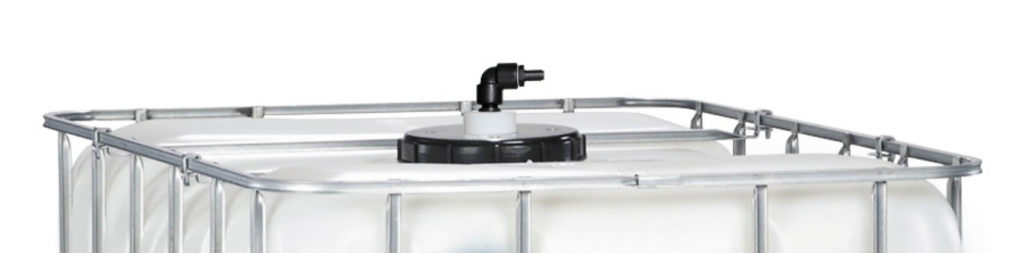

Any drum bung unit can be mounted to a tote that has a lid with a bung opening.

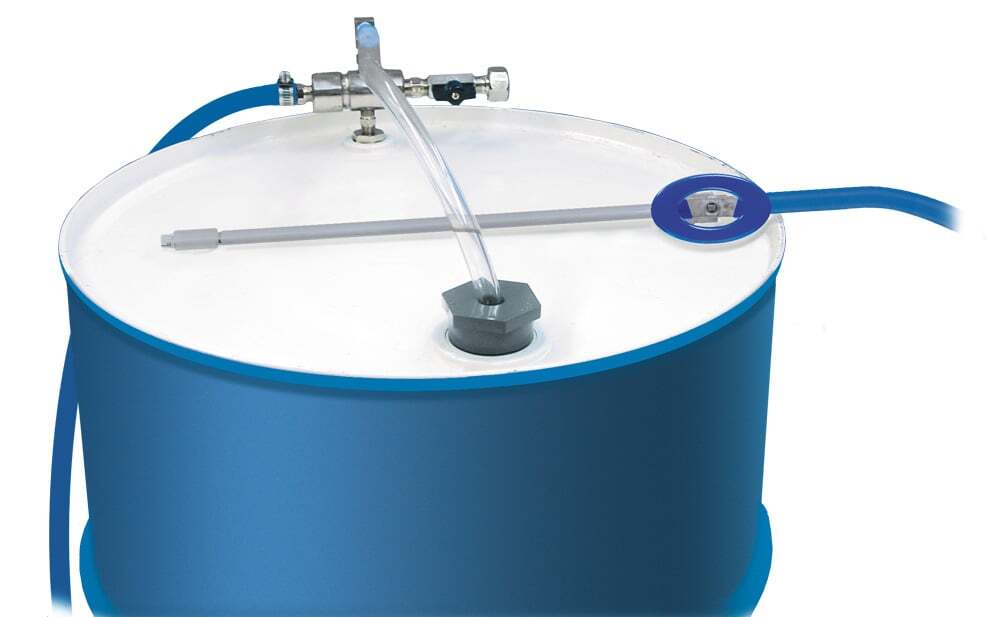

Connect city water pressure and compressed air.
No compressed air required! Simply connect city water pressure.
5-gallon pail pull-up spout

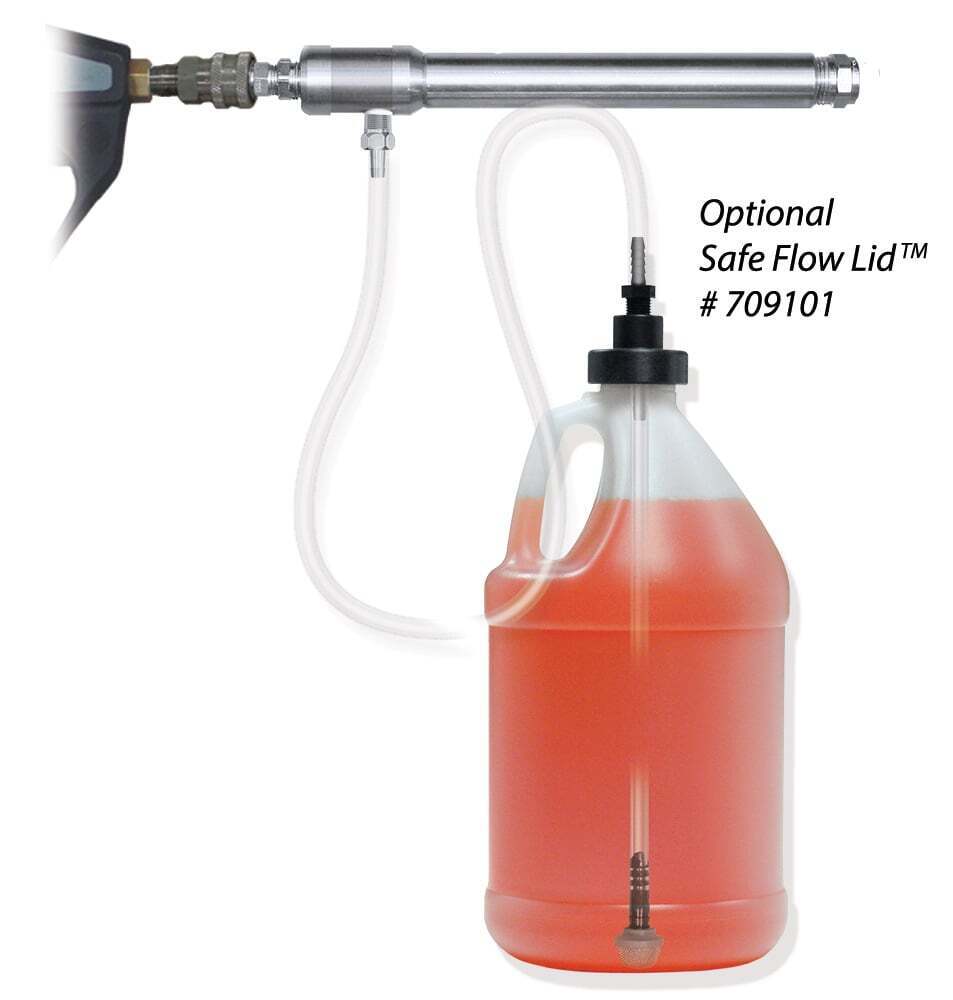

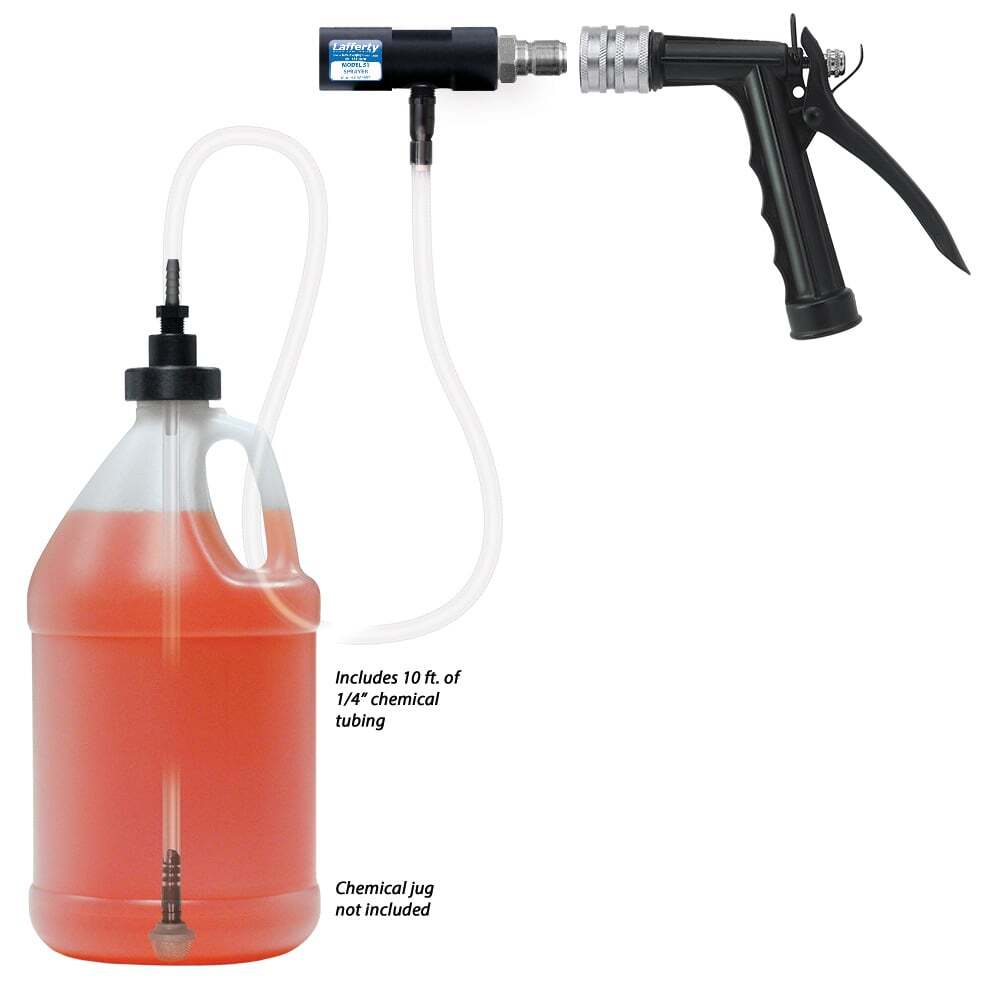

Designed for 1-gallon jugs, 5-gallon pail pull-up spouts, or any container with 38mm OD threads.

No compressed air required! Models available for city water pressure (35-125 PSI) or pressure washers (2.2+ GPM).

Unlike Lafferty “Compact” Sprayers and Foamers, which feature an attached 32oz bottle, “Hose-End” systems draw chemical from a larger container for longer spraying time before refilling.

Drawing from a larger container is especially helpful for chemicals that are applied at strong dilution ratios that would quickly deplete a smaller container.

Stainless Steel Hose-End Systems for Pressure Washers (2.2+ GPM)
Hose-End Systems for City Water Pressure (20-100 PSI)
No compressed air required! Simply connect city water pressure.

Lafferty Acid/Corrosive Systems feature acid-resistant construction materials and special design considerations to enhance user safety.

Extended wand
No compressed air required! Simply connect city water pressure.
Product Image

Lafferty Asphalt Release (AR) Systems provide quick and consistent application of asphalt release agents.

The systems above attach directly to containers of chemical concentrate for increased efficiency. For wall-mounted systems, dispensing accessories can provide many of the same benefits.
  • Prevent debris from entering the chemical supply.
  • Reduce odor from off-gassing chemicals.
  • Swap chemical containers faster and with less mess.
  • Minimize spillage if container is tipped over.
  • Facilitate high volume pumping and overcome problems inherit with flexible suction tubing (see accessories below with rigid pipe).

Lafferty can customize drum-mounted equipment and dispensing accessories to fit any chemical container.

Please contact us to discuss your goals!
