Pump Fed Fogger Metered Bleed Assembly
Accessory
The Metered Bleed Assembly provides a controlled relief outlet for pressure from chemical gasses and related dripping when fogging with off-gassing chemicals (for example, peracetic acid). This ensures that no chemical drips from the foggers after fogging has been completed. Each fogger zone should be equipped with a Metered Bleed Assembly.
.jpg)
.jpg?width=840&height=1000&name=950852__diagram__Fogger_Central_System_wDosatron(2016).jpg)
Key Features
- For use when fogging with off-gassing chemicals such as peracetic acid (PAA)
- Provides a controlled relief outlet for chemical gas buildup in solution lines after fogging to prevent latent dripping from the foggers

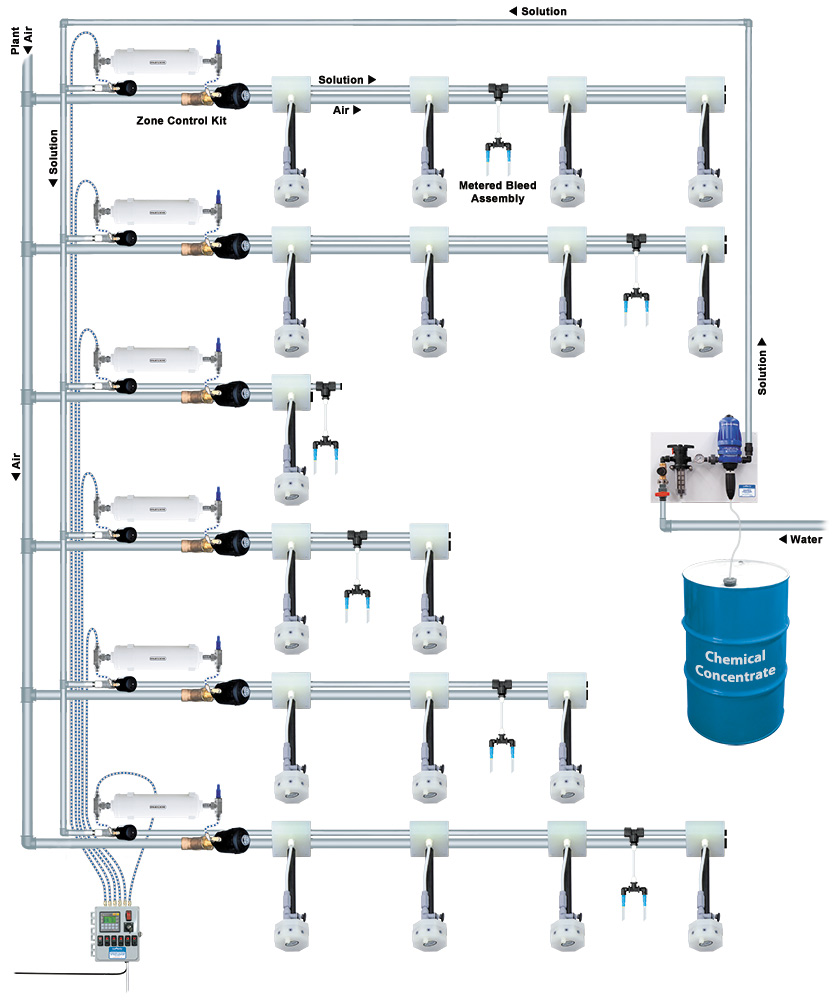

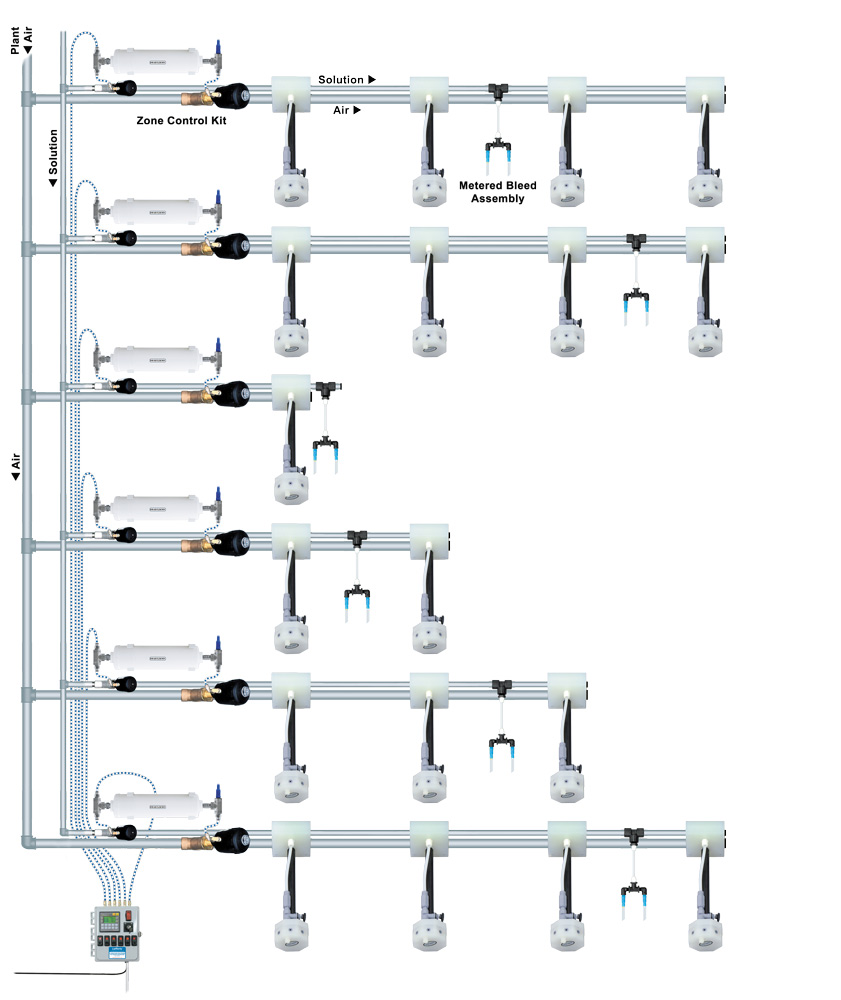

- The Metered Bleed Assembly is one of several components required for Pump Fed Fogger installation
- One Metered Bleed Assembly should be used in each zone of a pump fed fogging system
- It should be installed downstream of the in-line Pump Fed Fogger Zone Control Kit (#950850, not included Metered Bleed Assembly)
- Metering tips control the flow of chemical gas bleedoff and related dripping
- Chemical tubes direct chemical drips to a desired receptacle
- See Catalog 7 to view our full range of foggers and fogging accessories
- Lafferty offers several online Fogger Planning Tools

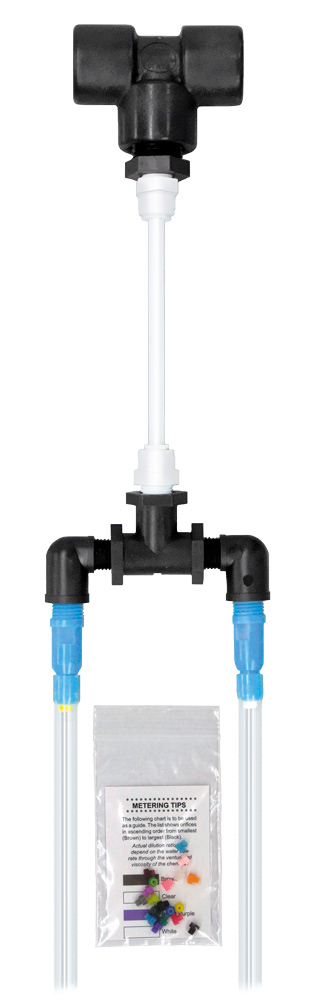

Includes
- 1/2" polypropylene connection tee
- (2) Metering tip holders
- (5) Metering tips
- (2) 1/4" x 6' chemical tubes
