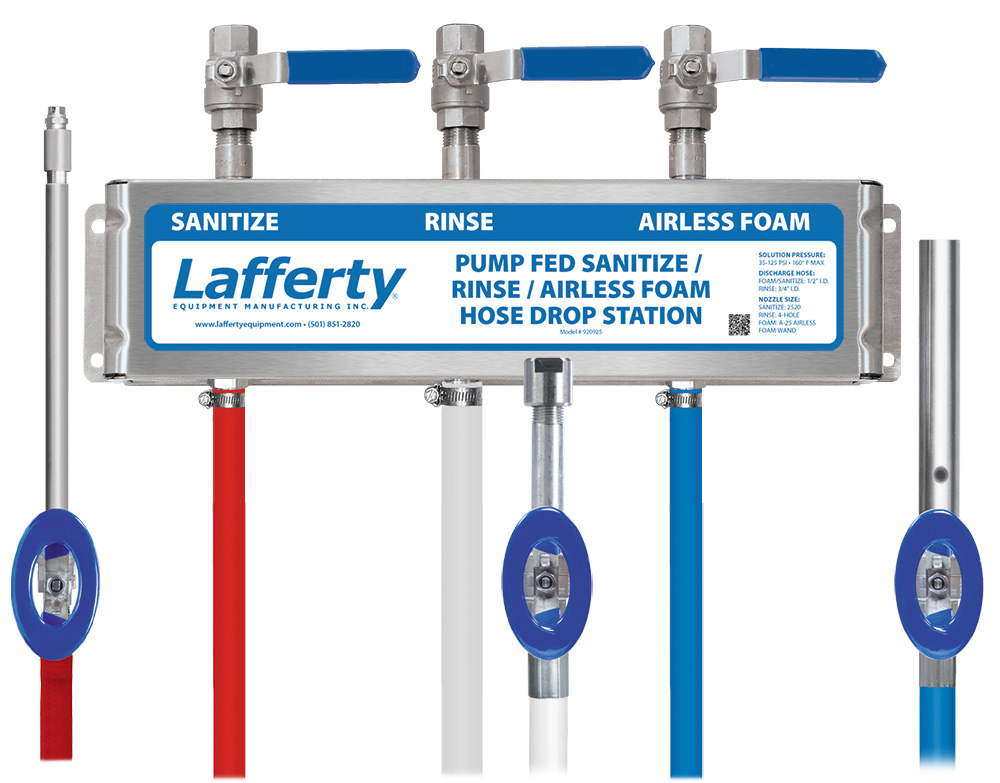

Pump Fed Sanitize / Rinse / Airless Foam Hose Drop Station
Airless
General Purpose
Medium Volume
N/A: Pump Fed Central Systems
Polypropylene Body
Pump Fed
Sanitize, Rinse, Foam
Wall Mount / Stationary
The Pump Fed Sanitize / Rinse / Airless Foam Hose Drop Station is a combination applicator for projecting one ready-to-use chemical as a sanitizing spray and another as foam, without compressed air. This unit receives 2 separate ready-to-use chemical solutions from separate central chemical feed systems. Foaming chemical solution flows through the foam hose to the "airless" foam wand which draws in atmospheric air to create and project wet, clinging foam at distances up to 6 feet. The sanitizer solution flows through the sanitizer hose and is projected as a fan pattern spray. Rinse through the unique, powerful 4-hole nozzle.
Key Features
- No compressed air required
- Receives 2 ready-to-use chemical solutions from separate central chemical feed systems
- Designed to foam, rinse and sanitize medium to large areas
- Projects wet, clinging foam which increases chemical contact time and effectiveness
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- Projects foam up to 6' (depending on water pressure)
- Projects sanitizer solution as a fan pattern spray for quick, uniform coverage
- Rinse at full pressure with the powerful 4-hole nozzle
- Stainless steel and polypropylene wetted components ensure durability and years of trouble-free performance
- Available without a rinse function (#920920)
- See other Lafferty pump fed applicators in Catalog 5
- Design the optimal central chemical feed system with the Lafferty Pump-Fed Central System Planning Tool

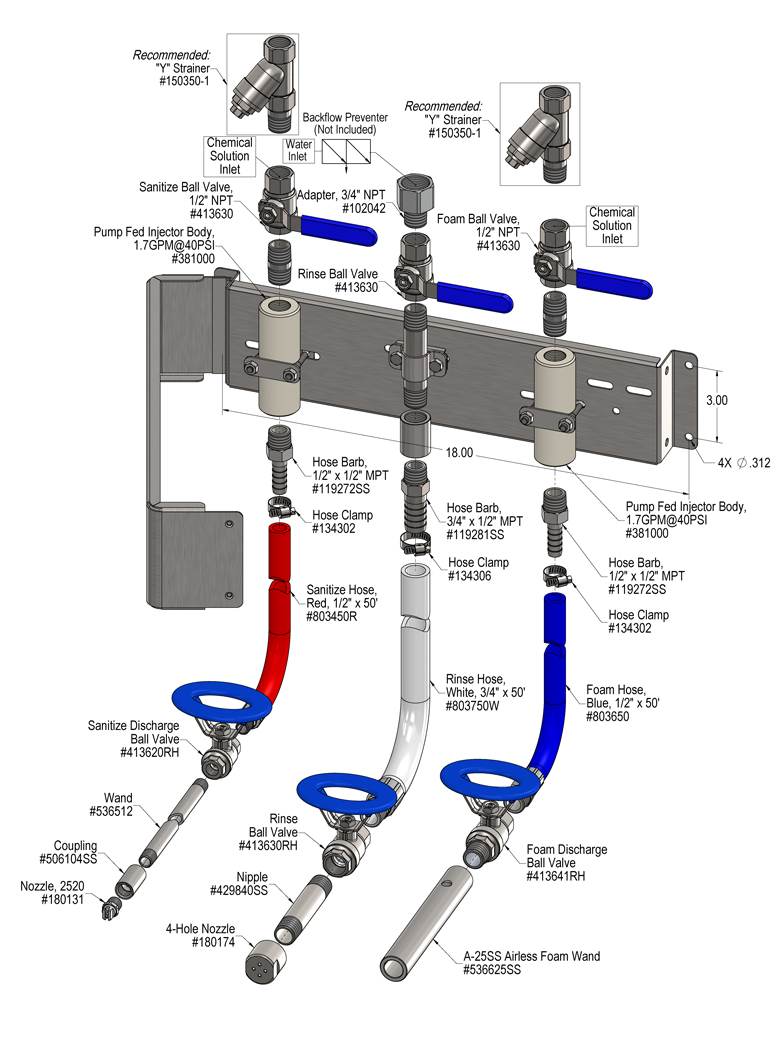

Includes
- Stainless steel mounting bracket
- Stainless steel inlet and discharge ball valves
- Machined polypropylene bodies
- 50' foam hose and stainless steel airless foam wand
- 50' rinse hose & stainless steel 4-hole nozzle
- 50' sanitize hose, stainless steel wand & fan nozzle
