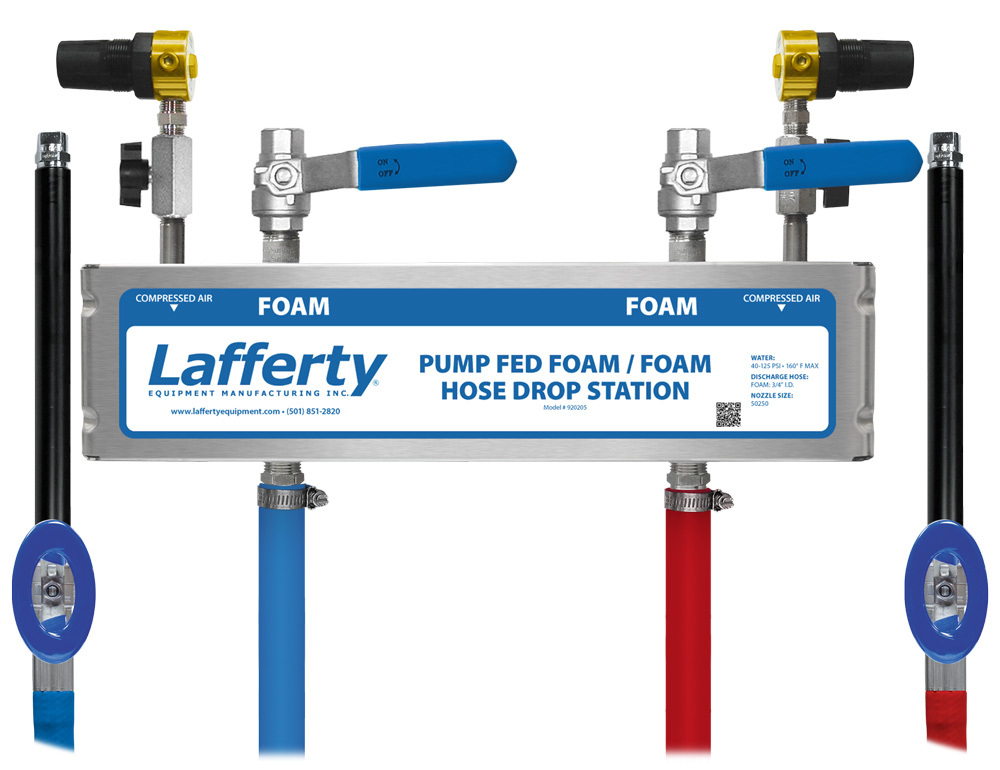

Pump Fed Foam / Foam Hose Drop Station
Air Assisted
Foam
Foam (Multiple)
General Purpose
Medium Volume
N/A: Pump Fed Central Systems
Polypropylene Body
Pump Fed
Wall Mount / Stationary
The Pump Fed Foam / Foam Hose Drop Station is a 2-way medium volume foam applicator for projecting 2 ready-to-use foaming chemicals. This unit receives 2 separate ready-to-use chemical solutions from separate central chemical feed systems and creates rich, clinging foam by injecting compressed air into the solutions to greatly increase volume and coverage ability. The foam is then projected through the dedicated discharge hoses and fan nozzles on to any surfaces up close or at distances up to 12 feet.
Key Features
- Receives 2 ready-to-use foaming chemical solutions from separate central chemical feed systems
- Use 2 different chemicals or different concentrations of the same chemical
- Designed for foam cleaning medium to large surfaces
- Projects a medium volume of rich, clinging foam which increases chemical contact time and effectiveness
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- Fan pattern foam nozzle for fast coverage (up to 12' range)
- Covers up to 500 sq ft (46.5 sq m) in 2 minutes
- Adjustable foam consistency (wet/dry)
- Stainless steel and polypropylene wetted components ensure durability and years of trouble-free performance
- Available with a sanitize function (#920305)
- See other Lafferty pump fed foamers in Catalog 5
- Design the optimal central chemical feed system with the Lafferty Pump-Fed Central System Planning Tool

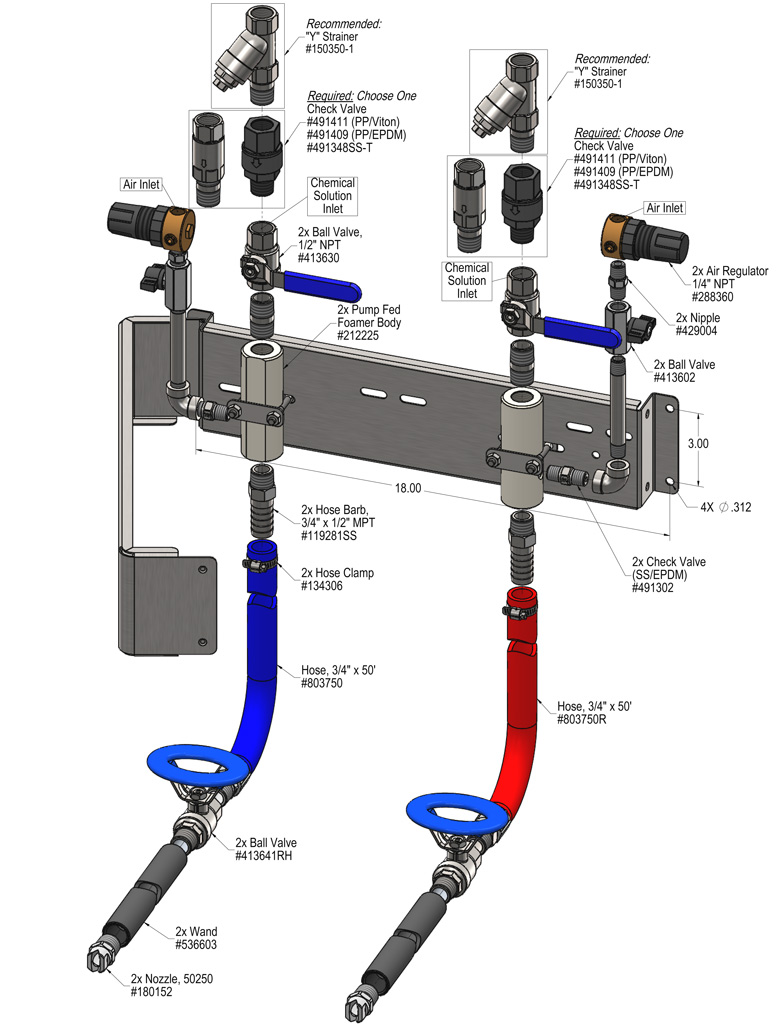

Includes
- Stainless steel mounting bracket
- Stainless steel inlet and discharge ball valves
- Machined polypropylene foamer body
- 50' red hose, polypropylene foam wand & fan nozzle
- 50' blue hose, polypropylene foam wand & fan nozzle
