Pump Fed SS Sanitize / Boosted Rinse / SS Foam Hose Drop Station
Air Assisted
Boosted Pressure
General Purpose
Medium Volume
N/A: Pump Fed Central Systems
Pump Fed
Sanitize, Rinse, Foam
Stainless Steel Body
Wall Mount / Stationary

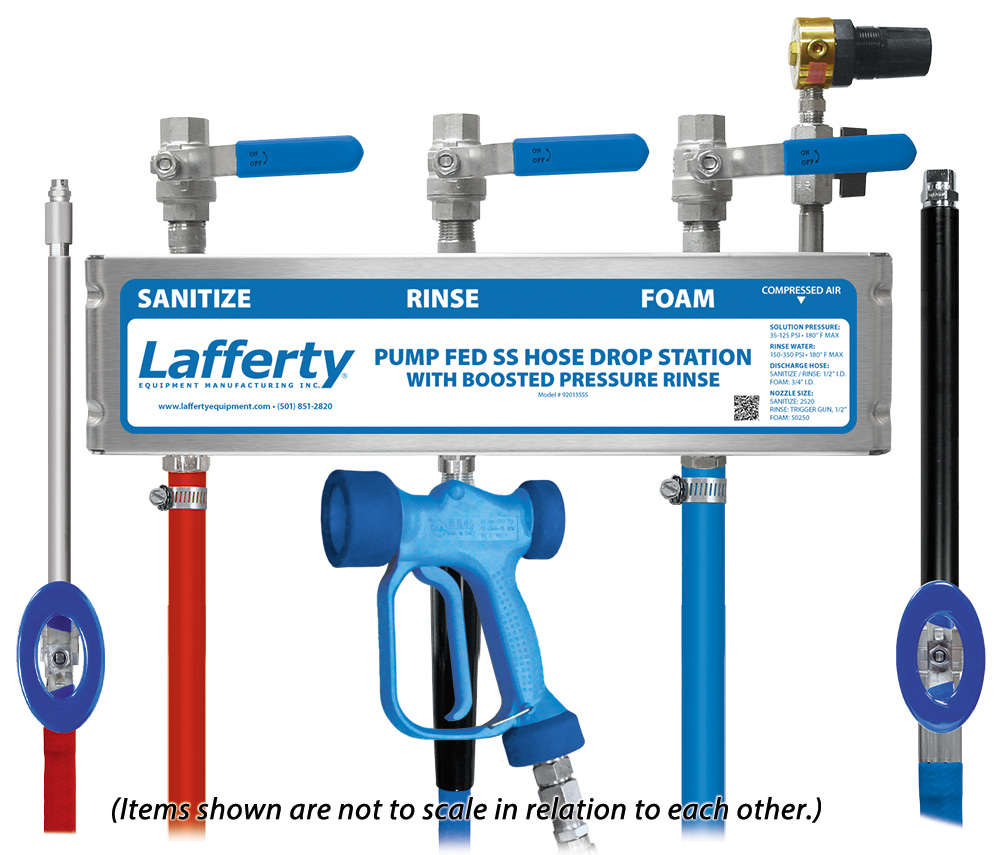

The Pump Fed SS Sanitize / Boosted Rinse / SS Foam Hose Drop Station is a combination applicator for projecting one ready-to-use chemical as foam, another as a sanitizing spray and for rinsing using boosted water pressure (150 - 350 PSI). This stainless steel unit receives 2 separate ready-to-use chemical solutions from separate central chemical feed systems. Rich, clinging foam is created by injecting compressed air into the foaming solution to greatly increase volume and coverage ability. Foam is then projected through the foam hose and fan nozzle on to any surface up close or at distances up to 12 feet. Sanitizer solution, or any other chemical, is projected through a separate hose as a fan pattern spray. Rinse with boosted pressure water through the adjustable spray patten trigger gun.
Key Features
- All stainless steel wetted components for maximum chemical resistance and durability
- Rinses with boosted pressure water through the adjustable spray pattern trigger gun
- Receives 2 ready-to-use chemical solutions from separate central chemical feed systems
- Designed to foam, rinse and sanitize medium to large areas
- Projects a medium volume of rich, clinging foam which increases chemical contact time and effectiveness
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- Fan pattern foam nozzle for fast coverage (up to 12' range)
- Covers up to 500 sq ft (46.5 sq m) in 2 minutes
- Adjustable foam consistency (wet/dry)
- Projects sanitizer solution as a fan pattern spray for quick, uniform coverage
- Stainless steel and polypropylene wetted components ensure durability and years of trouble-free performance
- Available with polypropylene bodies (#920135)
- Available for rinsing @ 400-1000 PSI (#920145)
- See other Lafferty pump fed applicators in Catalog 5
- Design the optimal central chemical feed system with the Lafferty Pump-Fed Central System Planning Tool

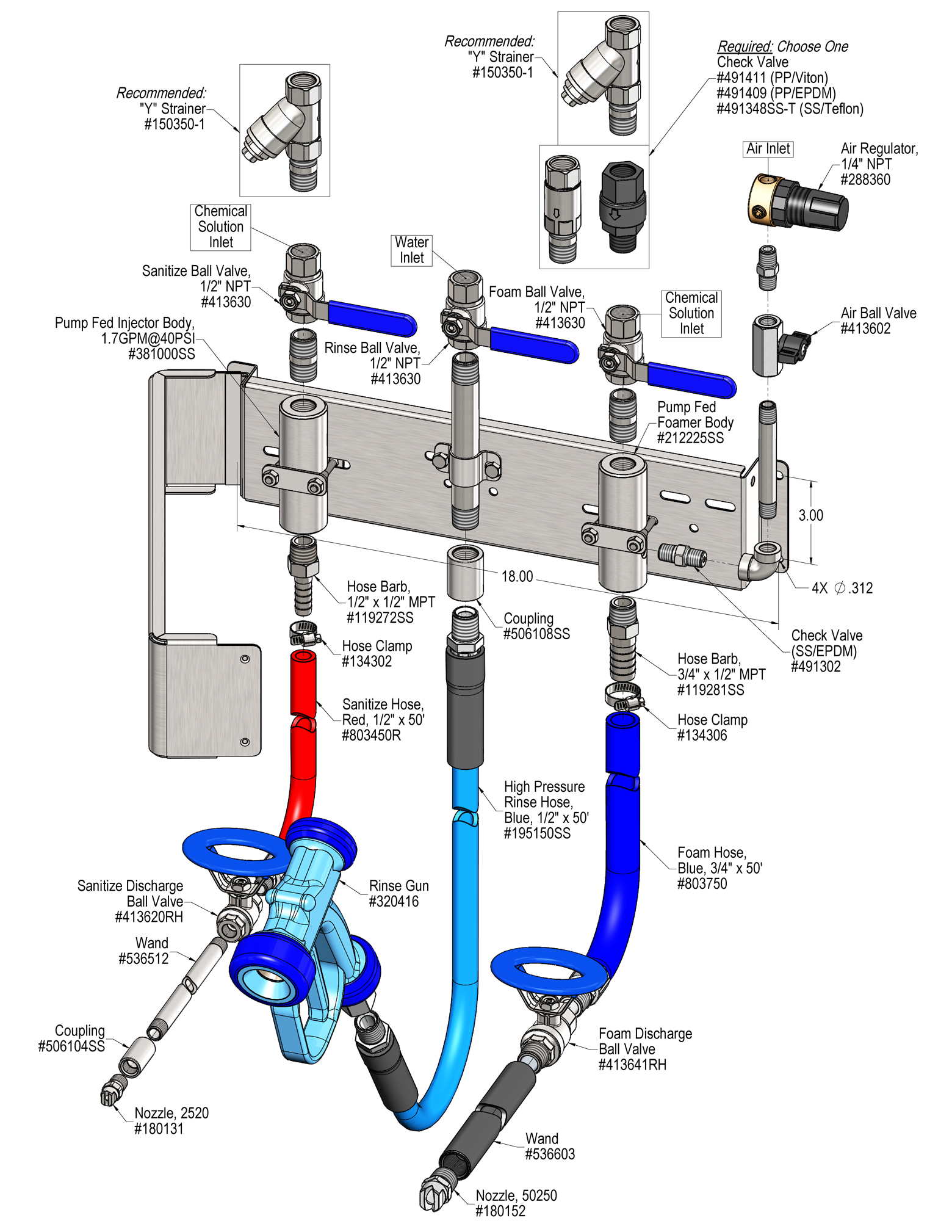

Includes
- Stainless steel mounting bracket
- Stainless steel inlet and discharge ball valves
- Machined stainless steel foamer and sanitizer bodies
- 50' foam hose, polypropylene foam wand & fan nozzle
- 50' boosted pressure rinse hose & heavy-duty trigger gun
- 50' sanitize hose, stainless steel wand & fan nozzle
