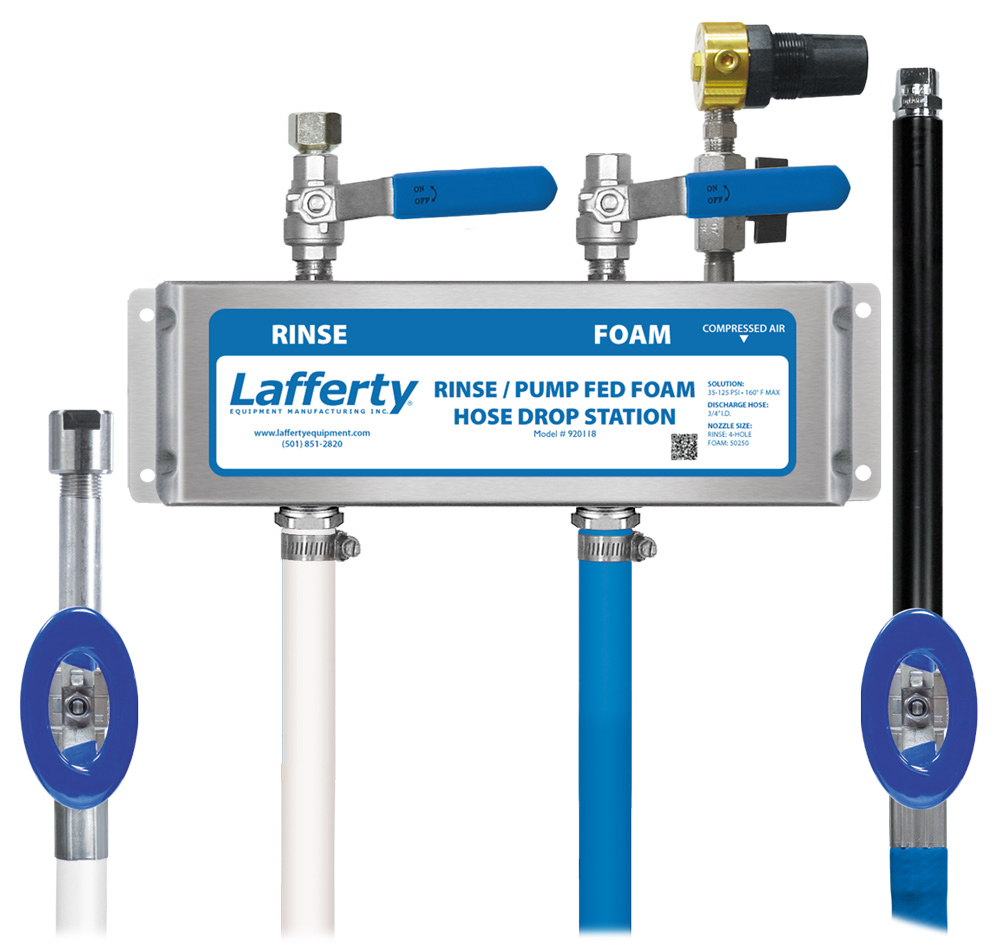

Rinse / Pump Fed Foam Hose Drop Station
Air Assisted
Foam, Rinse
General Purpose
Medium Volume
N/A: Pump Fed Central Systems
Polypropylene Body
Pump Fed
Wall Mount / Stationary
The Rinse/Pump Fed Foam Hose Drop Station is a medium volume foam applicator for projecting ready-to-use foaming chemicals and for rinsing. This unit receives ready-to-use chemical solution from a central chemical feed system and creates rich, clinging foam by injecting compressed air into the solution to greatly increase volume and coverage ability. The foam is then projected through the discharge hose and fan nozzle on to any surface up close or at distances up to 12 feet. Rinse through a separate hose with a unique and powerful 4-hole nozzle.
Key Features
- Receives ready-to-use chemical solution from a central chemical feed system
- Designed for foaming & rinsing medium to large surfaces
- Projects a medium volume of rich, clinging foam which increases chemical contact time and effectiveness
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- Fan pattern foam nozzle for fast coverage (up to 12' range)
- Covers up to 500 sq ft (46.5 sq m) in 2 minutes
- Adjustable foam consistency (wet/dry)
- Stainless steel and polypropylene wetted components ensure durability and years of trouble-free performance
- Available without a rinse function (#920105)
- See other Lafferty pump fed foamers in Catalog 5
- Design the optimal central chemical feed system with the Lafferty Pump-Fed Central System Planning Tool

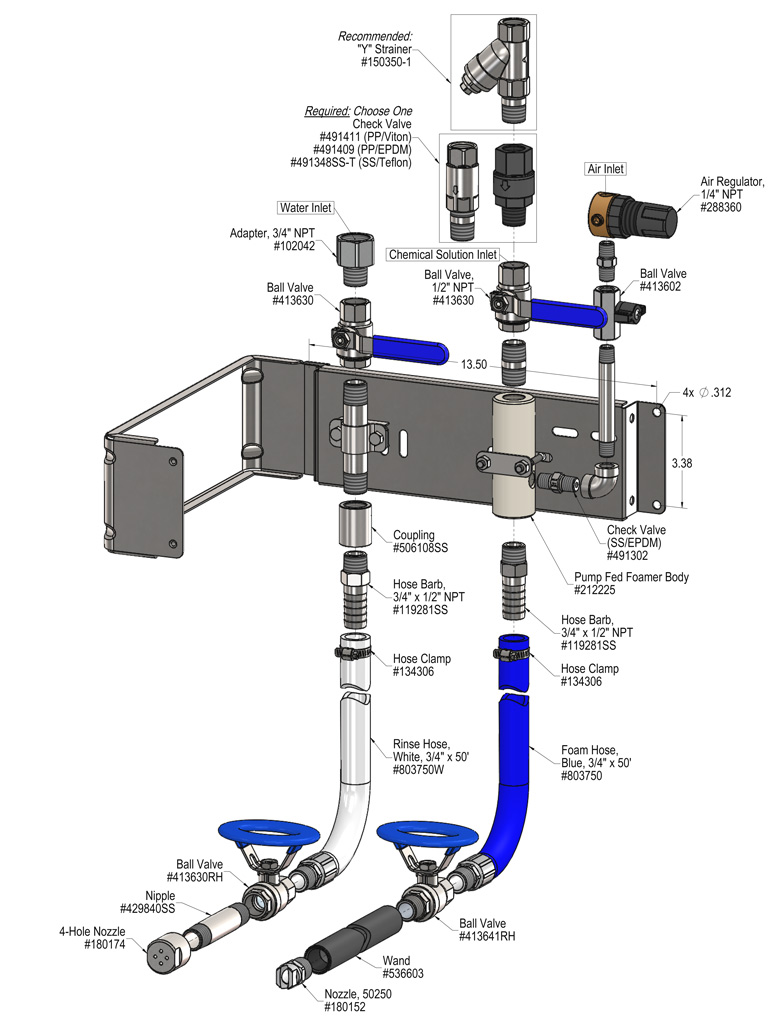

Includes
- Stainless steel mounting bracket
- Stainless steel inlet and discharge ball valves
- Machined polypropylene foamer body
- 50' foam hose, polypropylene foam wand & fan nozzle
- 50' rinse hose & stainless steel 4-hole nozzle
Loading related posts...
Overview
Key Features
- Receives ready-to-use chemical solution from a central chemical feed system
- Designed for foaming & rinsing medium to large surfaces
- Projects a medium volume of rich, clinging foam which increases chemical contact time and effectiveness
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- Fan pattern foam nozzle for fast coverage (up to 12' range)
- Covers up to 500 sq ft (46.5 sq m) in 2 minutes
- Adjustable foam consistency (wet/dry)
- Stainless steel and polypropylene wetted components ensure durability and years of trouble-free performance
- Available without a rinse function (#920105)
- See other Lafferty pump fed foamers in Catalog 5
- Design the optimal central chemical feed system with the Lafferty Pump-Fed Central System Planning Tool
Includes
- Stainless steel mounting bracket
- Stainless steel inlet and discharge ball valves
- Machined polypropylene foamer body
- 50' foam hose, polypropylene foam wand & fan nozzle
- 50' rinse hose & stainless steel 4-hole nozzle
