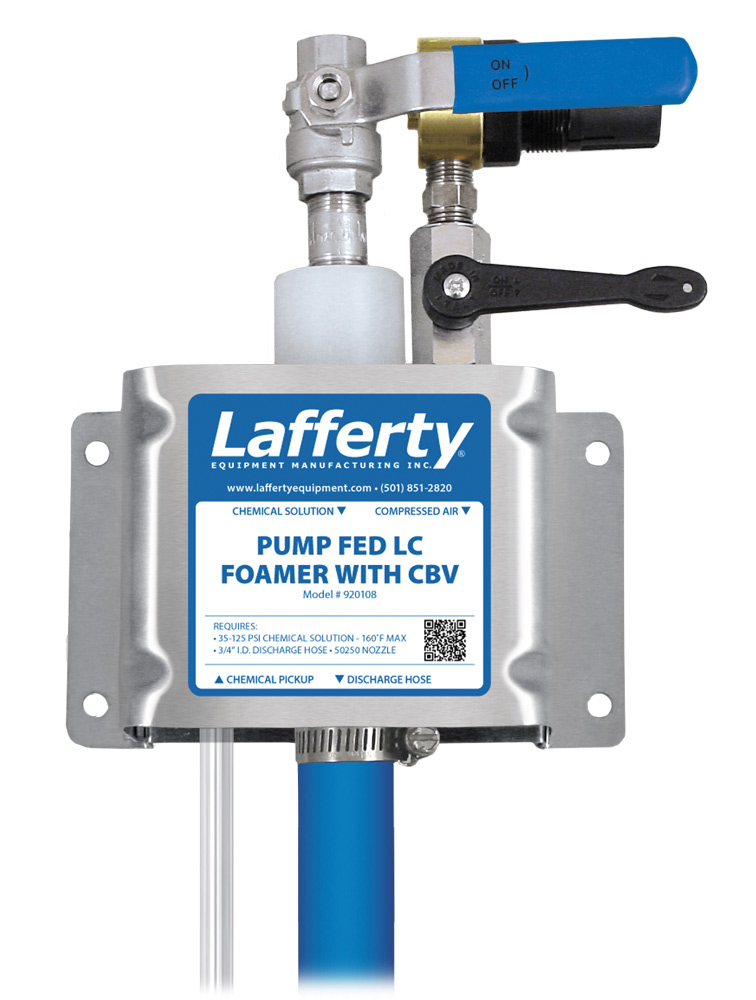

Pump Fed LC Foamer W/ Chemical Ball Valve
Air Assisted
Foam
General Purpose
Medium Volume
N/A: Pump Fed Central Systems
Polypropylene Body
Pump Fed
Wall Mount / Stationary
The Pump Fed LC Foamer with Chemical Ball Valve receives pressurized chemical from a user-supplied chemical pump and the venturi injection system draws a second chemical into the first to create an accurately blended two-chemical solution. Rich, clinging foam is created by injecting compressed air into the solution to greatly increase volume and coverage ability. A medium volume of foam is produced and projected through the discharge hose, wand and fan nozzle onto any surface at distances up to 12 feet.
Key Features
- Receives ready-to-use chemical solution from a central chemical feed system
- With the chemical ball valve open, the venturi foamer body draws a second chemical into the first using metering tips to control the dilution ratio
- Designed for foam cleaning medium to large surfaces
- Projects a medium volume of rich, clinging foam which increases chemical contact time and effectiveness
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- Fan pattern nozzle for quick coverage (up to 12' range)
- Covers up to 500 sq ft (46.5 sq m) in 2 minutes
- Adjustable foam consistency (wet/dry)
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Industrial-strength design holds up in tough environments
- See other pump-fed applicators in Catalog 5
- Design the optimal central chemical feed system with the Lafferty Pump-Fed Central System Planning Tool

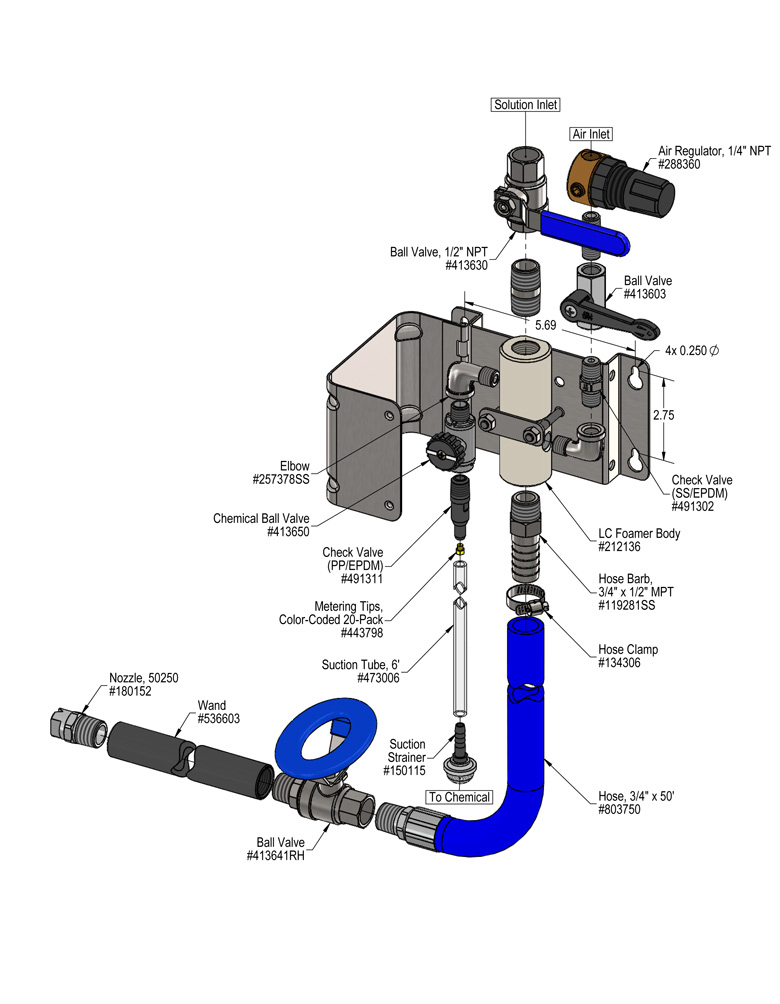

Includes
- Stainless steel mounting bracket
- Stainless steel inlet and discharge ball valves
- Machined polypropylene foamer body
- Chemical ball valve
- 20 color-coded precision metering tips to set dilution ratios
- 50' hose, polypropylene foam wand & fan nozzle
