Mini-Central Pump System
Air Assisted
General Purpose
Transfer
Wall Mount / Stationary

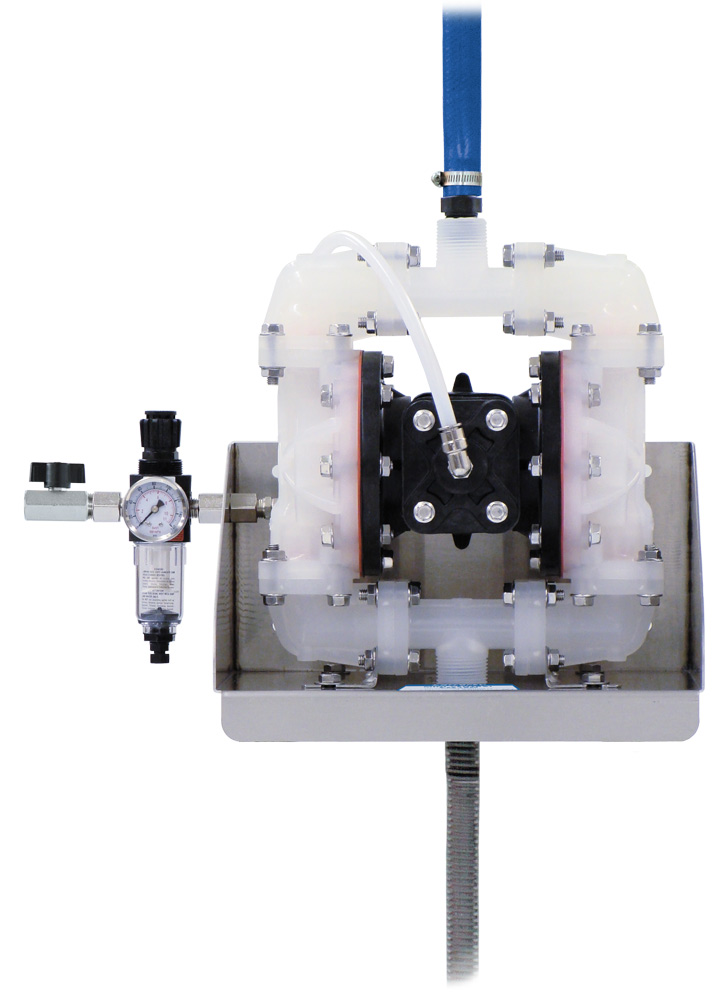

The Mini-Central Pump System is a compressed air driven system that will pump neat or ready to use chemical solutions for a variety of applications. Used to transfer chemicals, fill vessels and feed remote Pump Fed Foamers or Sanitizing Hose Drop Stations. As a transfer system it will pump up to 12 GPM and as a central chemical feed system it will pump up to 9 GPM @ 60 PSI.
Key Features
- Designed to pump neat or ready-to-use chemical solutions for a variety of applications

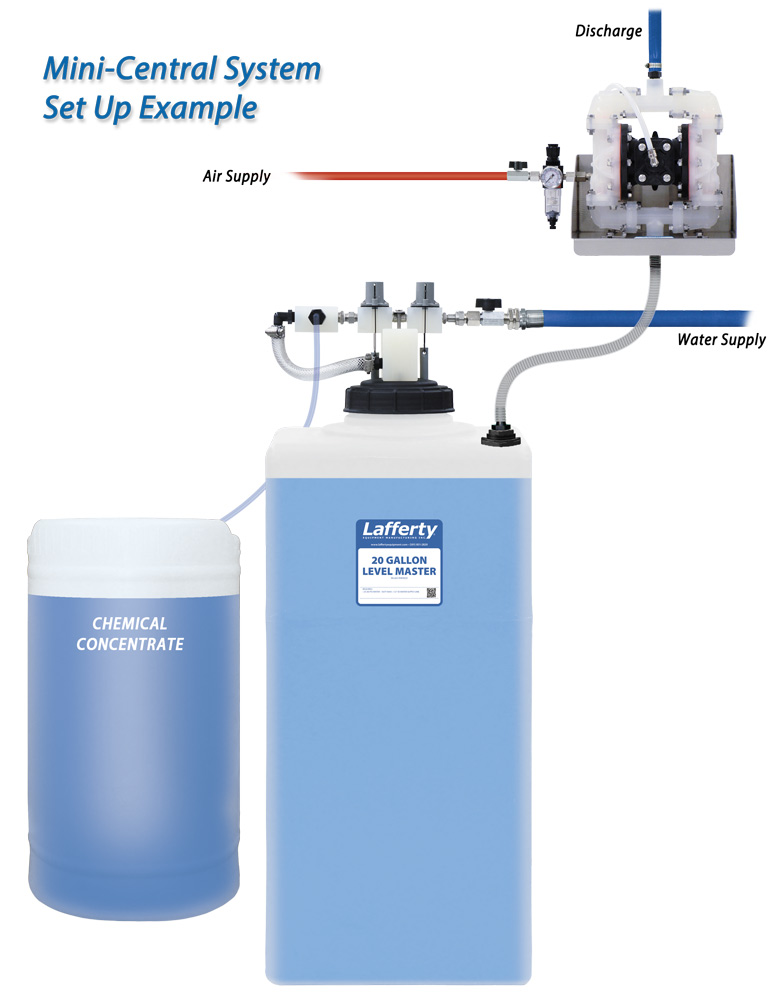

- Use this system in conjunction with a Level Master to ensure a constant supply of RTU chemical solution
- When used as a transfer system, it pumps up to 12 GPM
- As a central chemical feed system it pumps up to 9 GPM @ 60 PSI to drive Pump-Fed Foamers, Sanitizing Hose Drop Stations, or Pump Fed Foggers
- Heavy-duty polypropylene AODD pump with Santoprene diaphragms (Teflon available)
- For more information on building a centralized chemical management system, see our Pump Fed Central System Planning Tool

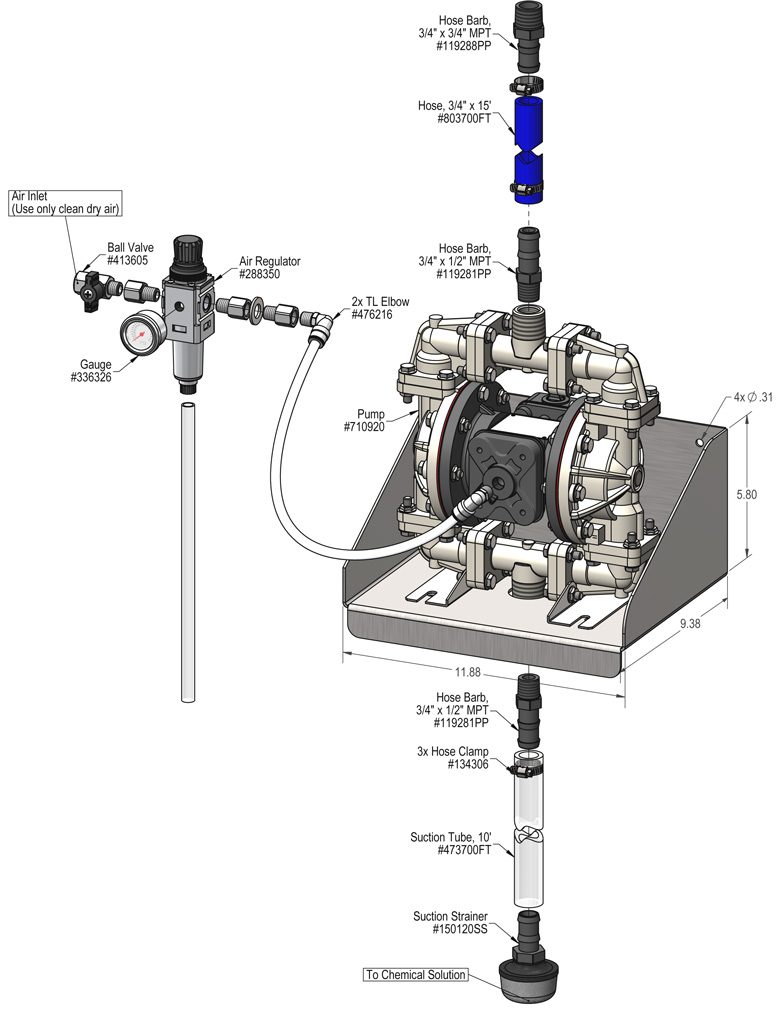

Includes
- Stainless steel mounting bracket
- Compressed air ball valve & regulator/filter with gauge
- Polypropylene 1/2" AODD pump with Santoprene diaphragms
- 10' chemical solution suction tube with strainer
- 15' x 3/4" discharge hose with MPT fitting
Loading related posts...
Overview
Key Features
- Designed to pump neat or ready-to-use chemical solutions for a variety of applications
- Use this system in conjunction with a Level Master to ensure a constant supply of RTU chemical solution
- When used as a transfer system, it pumps up to 12 GPM
- As a central chemical feed system it pumps up to 9 GPM @ 60 PSI to drive Pump-Fed Foamers, Sanitizing Hose Drop Stations, or Pump Fed Foggers
- Heavy-duty polypropylene AODD pump with Santoprene diaphragms (Teflon available)
- For more information on building a centralized chemical management system, see our Pump Fed Central System Planning Tool
Includes
- Stainless steel mounting bracket
- Compressed air ball valve & regulator/filter with gauge
- Polypropylene 1/2" AODD pump with Santoprene diaphragms
- 10' chemical solution suction tube with strainer
- 15' x 3/4" discharge hose with MPT fitting
