FPS Fogger Chemical Feed System

Key Features

• Delivers chemical to Pump Fed Foggers at 20 PSI
• Pumps chemical concentrate or ready-to-use solution

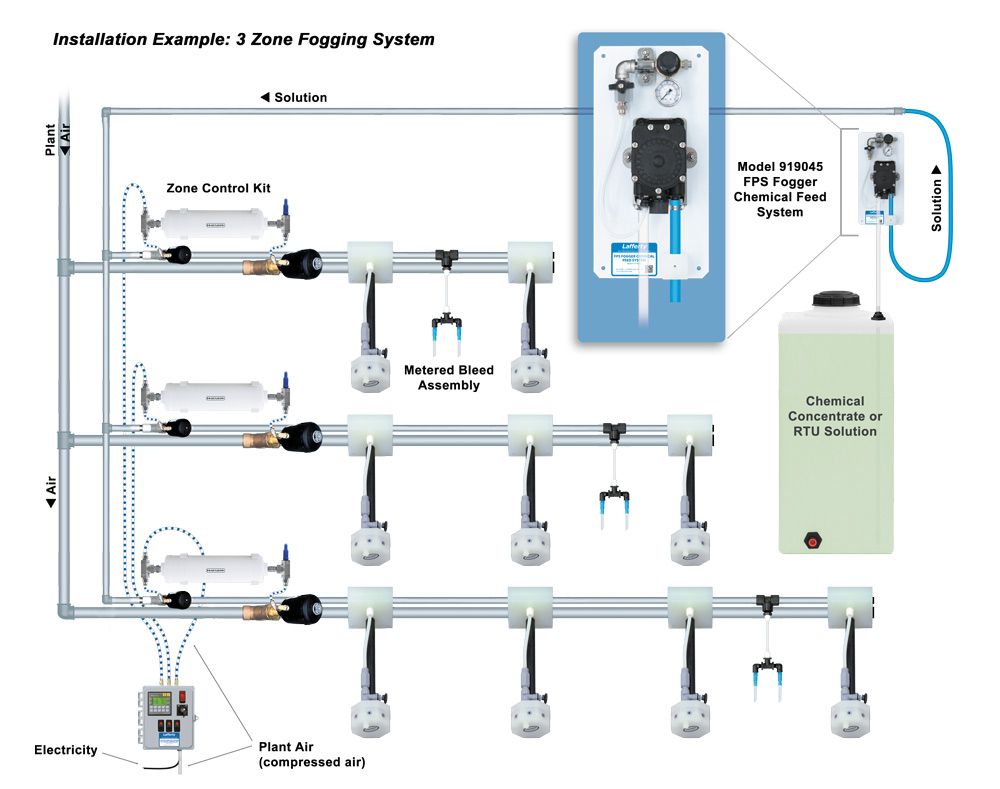

• Use this system in conjunction with a Level Master to ensure a constant supply of RTU chemical solution
• Requires only compressed air to operate for quick, easy set up
• Output volume depends on the air pressure supplied to the pump
• Pump is mounted on a unique quick-release, stainless steel bracket to easily replace pumps
• Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
• Foggers can be activated manually or via a timed controller setup (see options)
• View Pump Fed Foggers in Catalog 7
• Lafferty offers several online Fogger Planning Tools

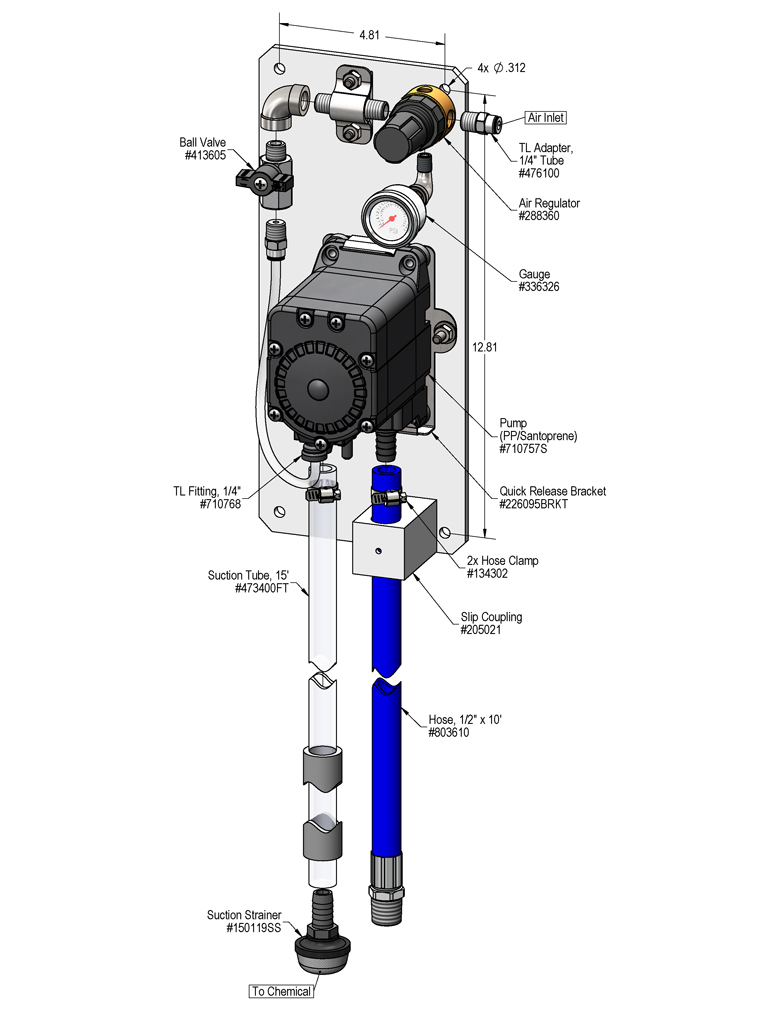

Includes

• Polypropylene mounting panel
• Air regulator and air pressure gauge
• FloJet AODD Pump with Santoprene diaphragms
• Stainless steel quick release bracket
• 15' chemical pickup tube with strainer
• 10' x 1/2" discharge hose with MPT fitting (to connect to facility plumbing)

Full technical details including requirements and dilution

Single sheet overview that highlights key features
