3/8" W-20SS Injector Kit W/ QDs
Parts & Accessories
Designed for 3.5–5.5 GPM pressure washers, the W-20SS quick-connect chemical injector attaches to a pressure washer outlet or installs in-line between hoses. This venturi unit draws and blends chemical concentrate into the water stream to create an accurately diluted solution. The solution then flows through the hose to the gun, where the user must connect a compatible A-20SS Airless Foam Wand or spray nozzle. Foam wand not included, see options.
Key Features
- Designed for use with 3.5–5.5 GPM pressure washers
- Draws chemical out of any sized container and accurately dilutes to the required ratio (7:1 and leaner)
- Installed at pressure washer outlet or between hoses, which eliminates the need to carry chemicals
- Use with a compatible airless foam wand (not included) to project wet, clinging foam
- Use with 1/4" nozzle (included) to project fan pattern liquid spray
- Your equipment is protected because no chemical passes through the pump
- Industrial-strength, all stainless steel design ensures durability and reliable performance
- For best results with foaming chemicals, use with A-20SS Airless Foam Wand (#969390 or VC-1100)

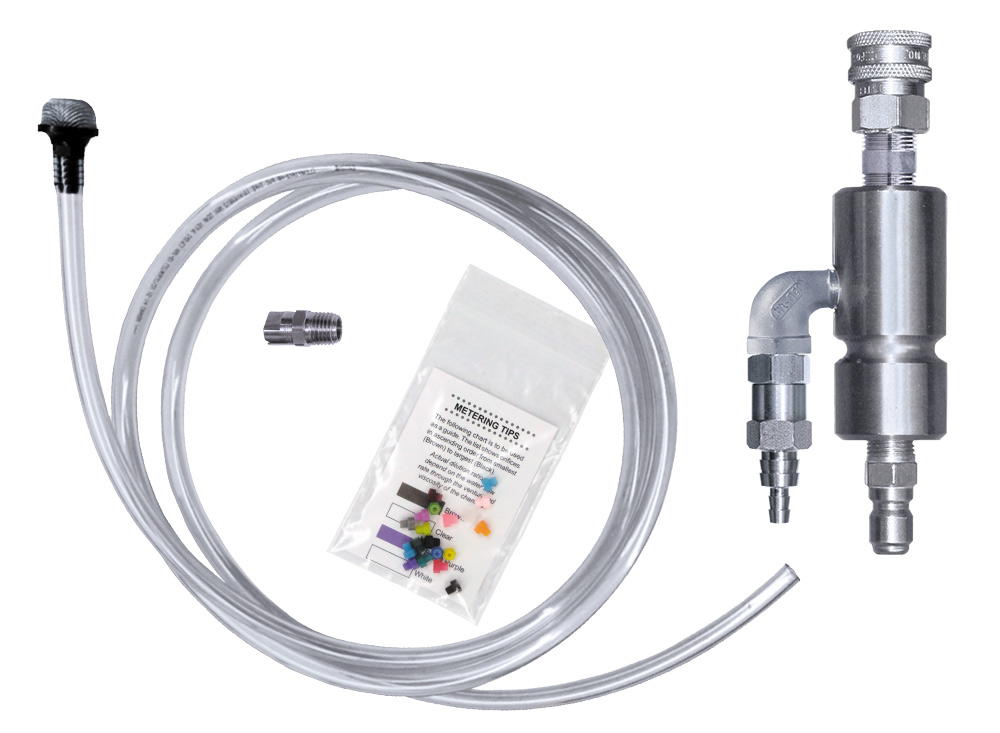

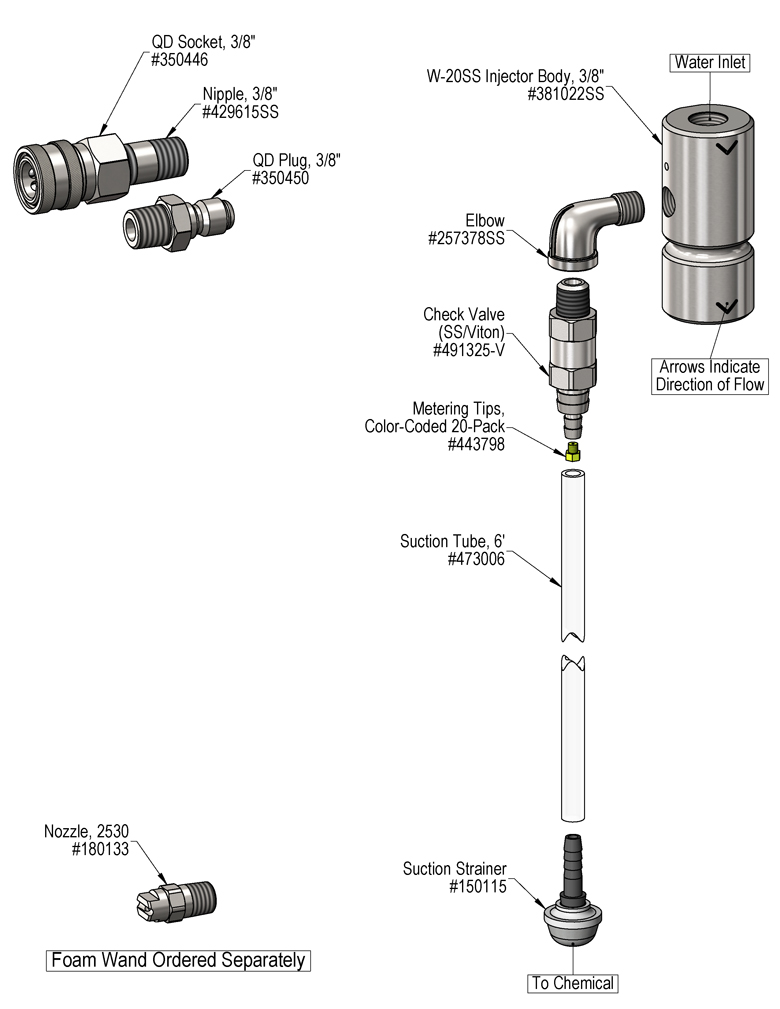

Includes
- 3/8" machined stainless steel injector body
- 3/8" quick disconnect set (plug and socket)
- 6' chemical suction tube and strainer
- 20 color-coded precision metering tips to set dilution ratios
- 1/4" fan pattern spray nozzle
Overview
Key Features
- Designed for use with 3.5–5.5 GPM pressure washers
- Draws chemical out of any sized container and accurately dilutes to the required ratio (7:1 and leaner)
- Installed at pressure washer outlet or between hoses, which eliminates the need to carry chemicals
- Use with a compatible airless foam wand (not included) to project wet, clinging foam
- Use with 1/4" nozzle (included) to project fan pattern liquid spray
- Your equipment is protected because no chemical passes through the pump
- Industrial-strength, all stainless steel design ensures durability and reliable performance
- For best results with foaming chemicals, use with A-20SS Airless Foam Wand (#969390 or VC-1100)
Includes
- 3/8" machined stainless steel injector body
- 3/8" quick disconnect set (plug and socket)
- 6' chemical suction tube and strainer
- 20 color-coded precision metering tips to set dilution ratios
- 1/4" fan pattern spray nozzle
