Ultimate Wash System 4
Parts & Accessories

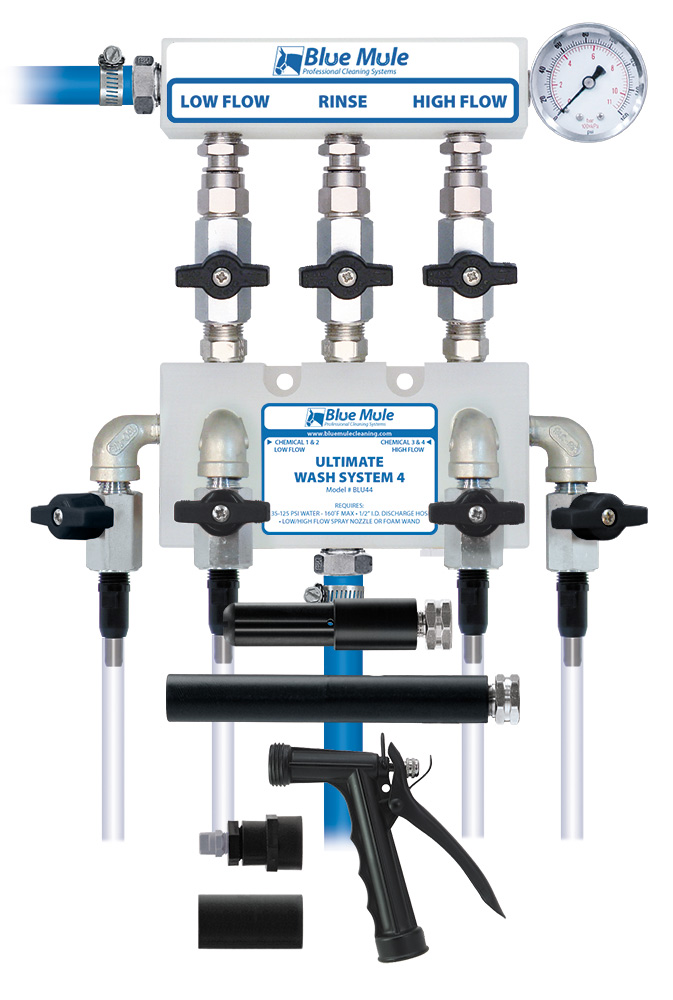

The Blue Mule Ultimate Wash System 4 is a wash & rinse system for diluting and applying up to 4 chemicals as foam or spray and then providing a clean water rinse through the same 50’ hose. This venturi injection system draws chemical concentrates from any sized containers, mixes them with water and projects the accurately diluted solutions as a fan pattern spray or rich, wet foam (depending on the chemical and nozzle used). Select high or low flow settings for chemical application and simply turn off the chemical ball valves and open the rinse valve to provide a full force rinse with clean water. This system is ideal for bathing pets in professional grooming shops, but has countless potential applications. This heavy-duty system is designed to outperform and outlast the competition through superior design and materials.
Key Features:
- Applies any 4 liquid chemicals as wet, clinging foam with the foam nozzles or attach the spray nozzles to project the solution in a fan pattern spray
- Use 4 different chemicals or different concentrations
- Rinses at at full pressure
- Low flow and high flow options let you choose the right amount of water and chemical for each job (2 low flow, 2 high flow chemical pickups)
- Works with all brands of chemicals so you are not restricted to expensive name brands
- Draws chemical concentrate from any container
- Water pressure gauge eliminates guessing, reduces set-up time, and helps with troubleshooting
- Chemical resistant wetted components ensure reliable performance for years with minimal maintenance

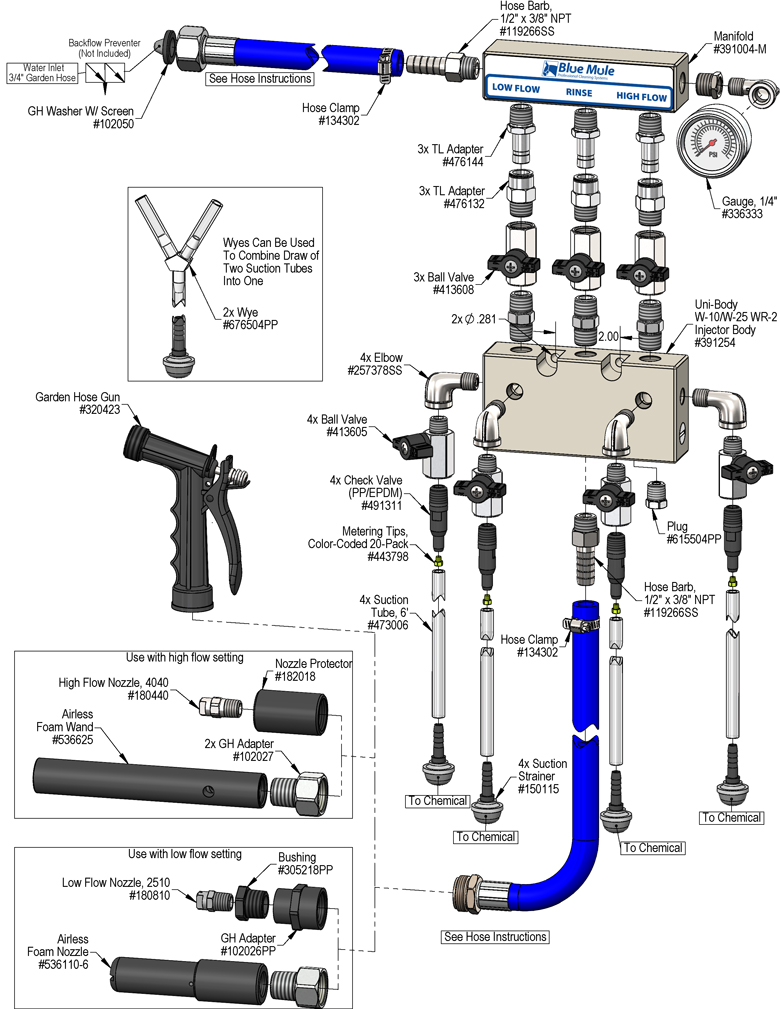

Includes:
- 10' water supply hose
- Machined polypropylene injector assembly
- Easy-to-read pressure gauge for incoming water
- 20 color-coded precision metering tips to set dilution ratios
- 50′ discharge hose (can be cut to length)
- Garden hose gun
- Low & high volume airless foam wands
- Low & high volume spray nozzles
Overview
Key Features:
- Applies any 4 liquid chemicals as wet, clinging foam with the foam nozzles or attach the spray nozzles to project the solution in a fan pattern spray
- Use 4 different chemicals or different concentrations
- Rinses at at full pressure
- Low flow and high flow options let you choose the right amount of water and chemical for each job (2 low flow, 2 high flow chemical pickups)
- Works with all brands of chemicals so you are not restricted to expensive name brands
- Draws chemical concentrate from any container
- Water pressure gauge eliminates guessing, reduces set-up time, and helps with troubleshooting
- Chemical resistant wetted components ensure reliable performance for years with minimal maintenance
Includes:
- 10' water supply hose
- Machined polypropylene injector assembly
- Easy-to-read pressure gauge for incoming water
- 20 color-coded precision metering tips to set dilution ratios
- 50′ discharge hose (can be cut to length)
- Garden hose gun
- Low & high volume airless foam wands
- Low & high volume spray nozzles
