Static Water Tank Level Master™ (No Tank)
General Purpose
Low Volume
Medium Volume
Polypropylene Body
Proportion and dispense
Wall Mount / Stationary

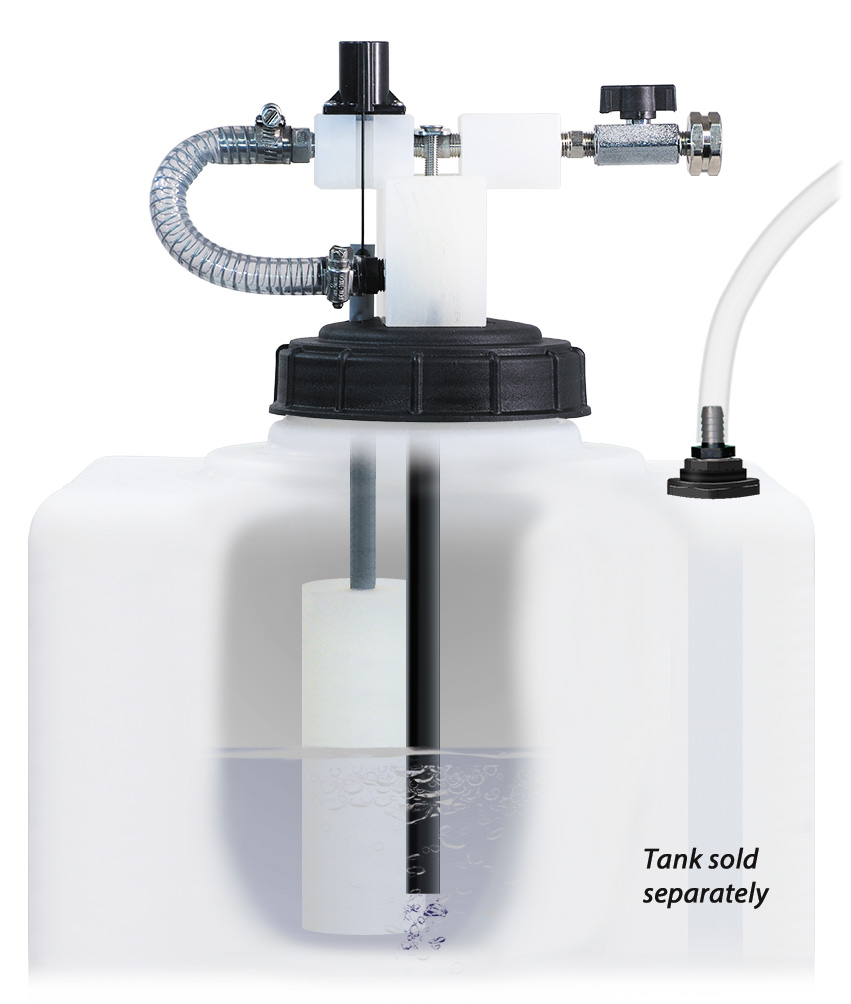

The Static Water Tank Level Master™ (No Tank) automatically maintains a constant supply of water in a paired tank (sold separately). When the water in the tank drops below a pre-set level, it is replenished using city water pressure (up to 125 PSI) and cycles continuously.
Key Features
- Automatically maintains a pre-set level of water in a paired tank (sold separately, see options)
- Ideal for locations with low or fluctuating water pressure
- Ensures on-demand water availablity for use with water pumping and chemical dilution equipment
- Water flow rate of 7 GPM @ 40 PSI - fills slower with lower water pressure (ex. 5 GPM @ 20 PSI)
- Unsinkable solid polypropylene float suspended by a rigid "push rod" ensures smooth operation and prevents the float valve from sticking in the open position
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Industrial-strength design holds up in tough environments
- Paired tanks are available in several sizes and include a rigid suction tube and hose barb(s) to facilitate dispensing
- Available to dilute chemical on demand (#989303)
- See all of our Level Master™ configurations and other Lafferty chemical management systems in Catalog 9

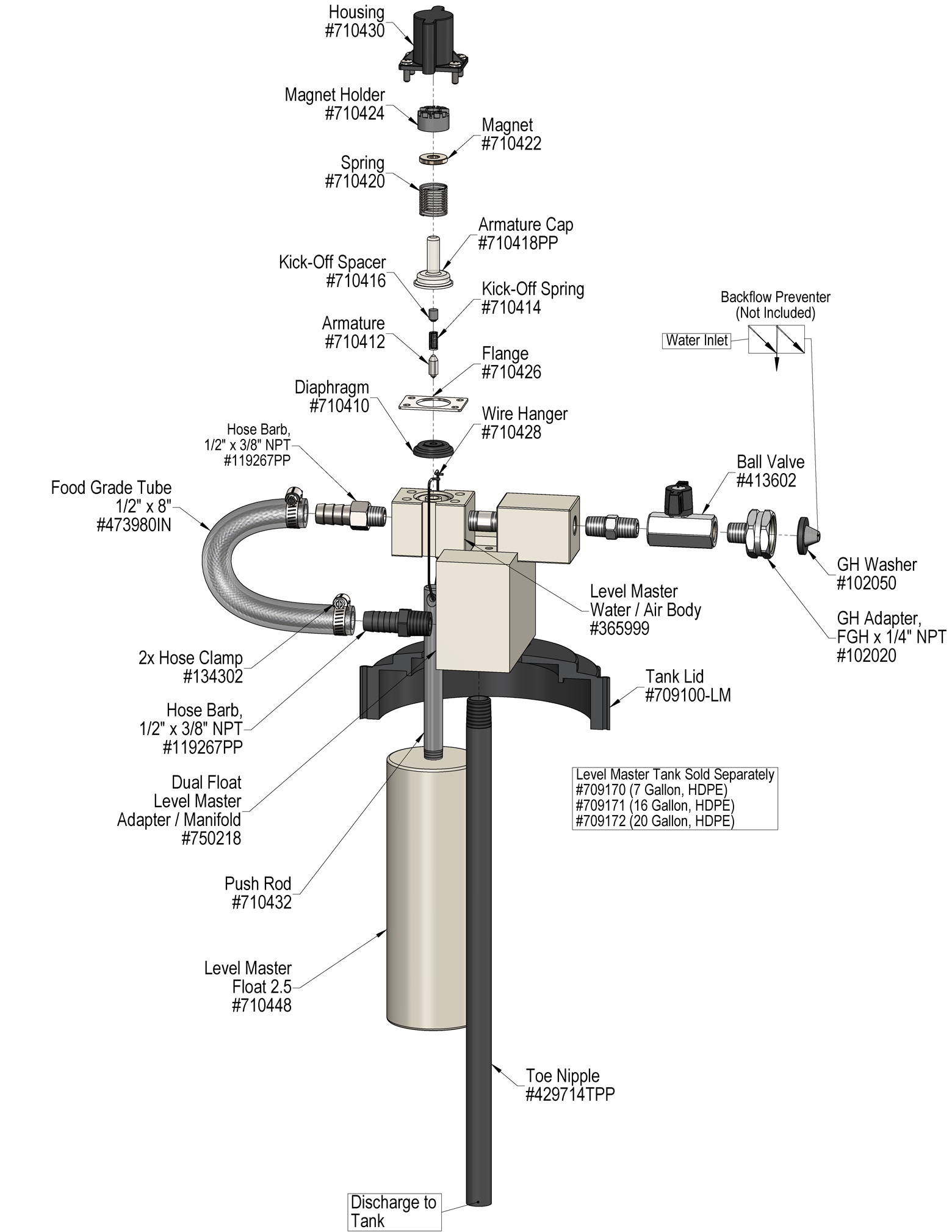

Includes
- Water supply inlet screen
- Water supply shut-off ball valve
- Machined polypropylene body
- Magnetic float valve with solid polypropylene float suspended by rigid CPVC push rod
- Lid for a paired tank (tank not included)
