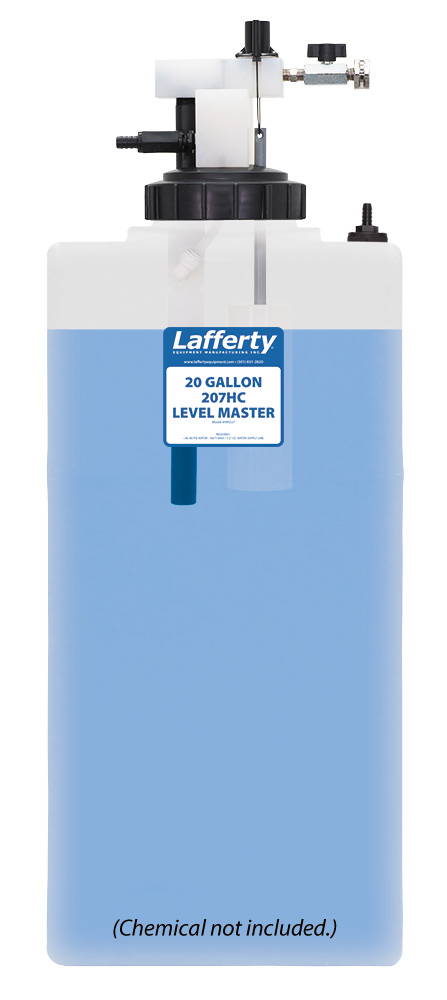

20 Gallon 207HC Level Master™
General Purpose
HC (High Concentrate)
Medium Volume
Polypropylene Body
Proportion and dispense
Venturi Dilution
Wall Mount / Stationary
The 20 Gallon 207HC Level Master™ is a water driven chemical proportioner that will automatically maintain a constant supply of highly concentrated ready-to-use solution. When the solution in the 20 gallon tank drops below a pre-set level, this venturi injection system uses city water pressure (40 - 80 PSI) to draw and blend a high concentration of chemical into the water stream to create near 1:1 dilution ratios. The solution replenishes with a water flow rate of 2.0 GPM @ 40 PSI and will cycle continuously.
Key Features
- Automatically maintains a pre-set level of ready-to-use chemical solution
- Achieves strong dilution ratios, up to 1.1:1 (with water thin chemicals)
- Weaker ratios controlled by precision metering tips & plugs
- Water flow rate of 2 GPM @ 40 PSI
- Unsinkable solid polypropylene float suspended by a rigid "push rod" ensures smooth operation and prevents the float valve from sticking in the open position
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Industrial-strength design holds up in tough environments
- Tank includes rigid suction tube and hose barb to facilitate dispensing
- Available to use with other tank sizes (#989225)
- See all of our Level Master™ configurations and other Lafferty chemical management systems in Catalog 9

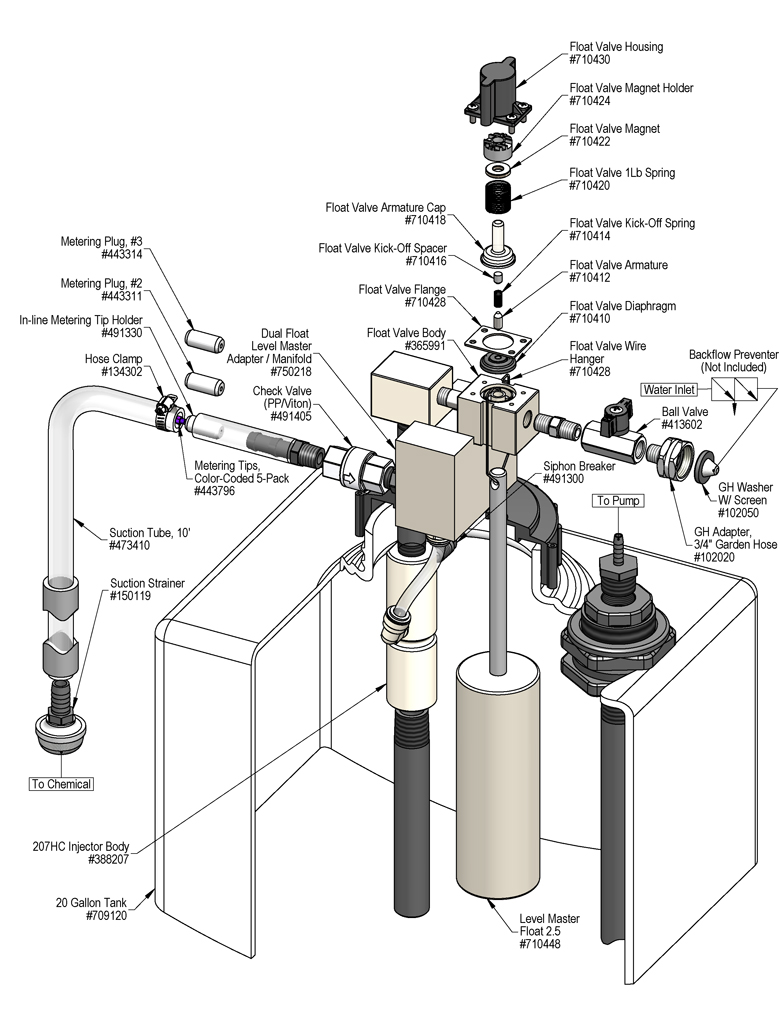

Includes
- Water supply shut-off ball valve
- Polypropylene float valve and injector body
- Magnetic float valve with solid polypropylene float suspended by rigid CPVC push rod
- 5 color-coded metering tips to set dilution ratios
- 2 metering plugs to set 2:1 & 3:1 dilution ratios
- 20 gallon, heavy-duty, polyethylene chemical tank
