20 GPM High Flow Level Master™ System
Air Assisted
General Purpose
Polypropylene Body
Proportion and dispense
Super High Volume
Venturi Dilution
Wall Mount / Stationary

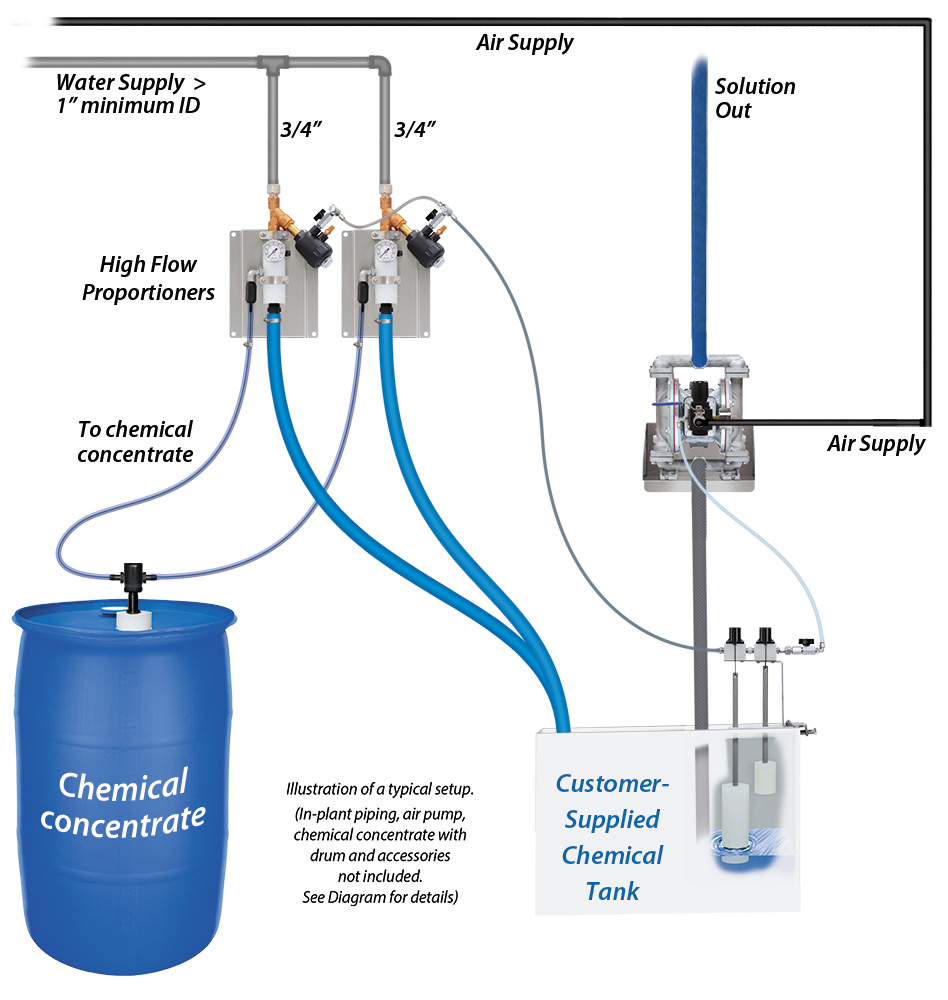

The 20 GPM High Flow Level Master™ is a water driven chemical proportioner that will automatically refill a customer-supplied tank with ready-to-use chemical solution. When the solution in the tank drops below a pre-set level, the float valve triggers air-activated solenoids to start the flow of water. Using city water pressure (35 - 125 PSI), this venturi system draws and blends chemical concentrate into the 21.2 GPM @ 40 PSI water stream to create an accurately diluted solution. The system cycles continuously and a secondary fail-safe float prevents overfilling.
Key Features
- Automatically maintains a pre-set level of ready-to-use chemical solution in a customer-supplied tank
- Refills at 21.2 GPM @ 40 PSI to provide chemical for a central chemical feed system
- Dual magnetic float valve design includes a primary valve to regulate normal operation and a secondary fail-safe valve to shut off the system if the primary float valve malfunctions
- Unsinkable solid polypropylene floats suspended by rigid "push rods" ensure smooth operation and prevent the float valves from sticking in the open position
- Dilution ratio controlled with precision metering tips
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Industrial-strength design holds up in tough environments
- Available with a lower flow rate (#989100)
- Available with a tank (#989108)
- See all of our Level Master™ configurations and other Lafferty chemical management systems in Catalog 9

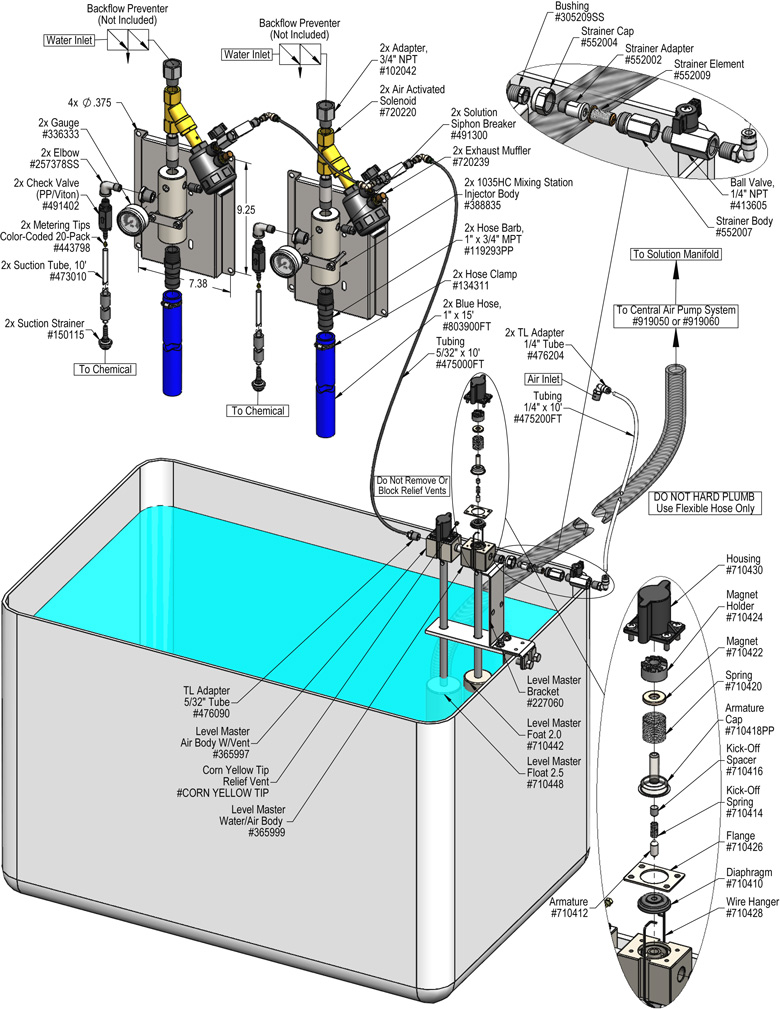

- Stainless steel Level Master mounting bracket
- 2 magnetic float valves (primary and fail-safe) with solid polypropylene floats suspended by rigid CPVC push rods
- Air inlet ball valve
- 2 stainless steel Satellite Mixing Station mounting plates
- 2 air-activated water solenoids
- 2 machined polypropylene injector bodies
- 2 sets of 20 color-coded precision metering tips
