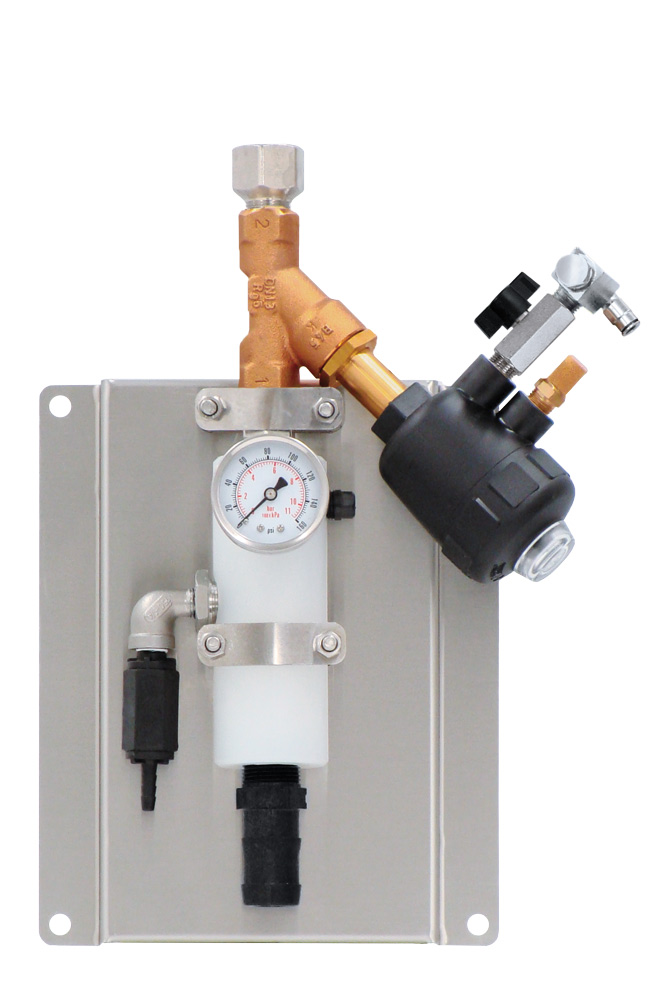

High Flow Satellite Mixing Station
Chemical Management
Chemical Mixing
The High Flow Satellite Mixing Station is a 10.6 GPM @ 40 PSI chemical proportioner that is activated by an Air Level Master (sold separately). When the air-activated water solenoid is opened, this venturi injection system uses standard city water pressure (35 -
125 PSI) to draw and blend chemical concentrate into the water stream to
create an accurately diluted solution. The ready-to-use solution is quickly dispensed into a paired Air Level Master Tank (sold separately) or a user-supplied tank. Use multiple Satellite Mixing Stations to refill the tank faster.
Key Features
- High flow venturi proportioner dilutes one chemical concentrate
- Flow rate of 10.6 GPM @ 40 PSI
- Air-activated water solenoid opens when it receives a pilot signal from an Air Level Master (or other control device)
- Dispenses into a paired Air Level Master tank or any user-supplied tank
- Use multiple Satellite Mixing Stations to refill the tank faster and keep up with demand
- Eliminates manual mixing and optimizes chemical utilization, employee safety and labor efficiency
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Dilution ratio controlled with precision metering tips
- Draws chemical concentrate from any sized container
- Available for 2 separate chemicals (#982185)
- See other chemical management systems in Catalog 9

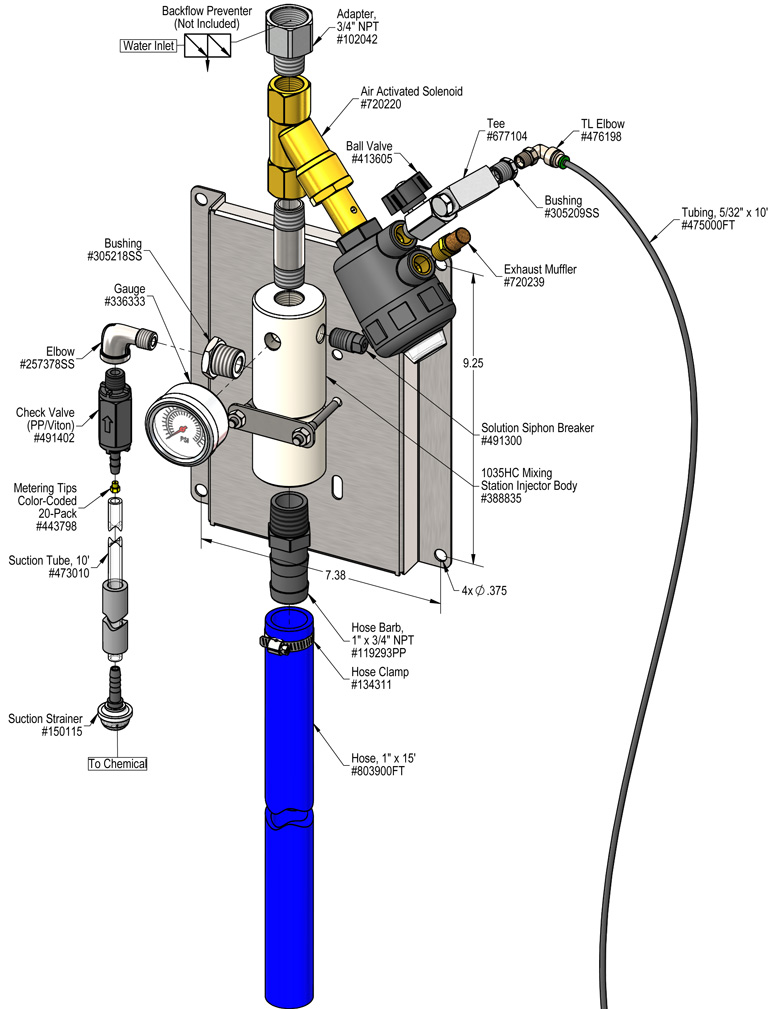

Includes
- Stainless steel mounting plate
- Air-activated water solenoid with 5/32" tube-lock fitting
- 10' of 5/32" airline tubing
- Machined polypropylene injector body
- Water pressure gauge
- 20 color-coded precision metering tips
- 15' open flow discharge hose
