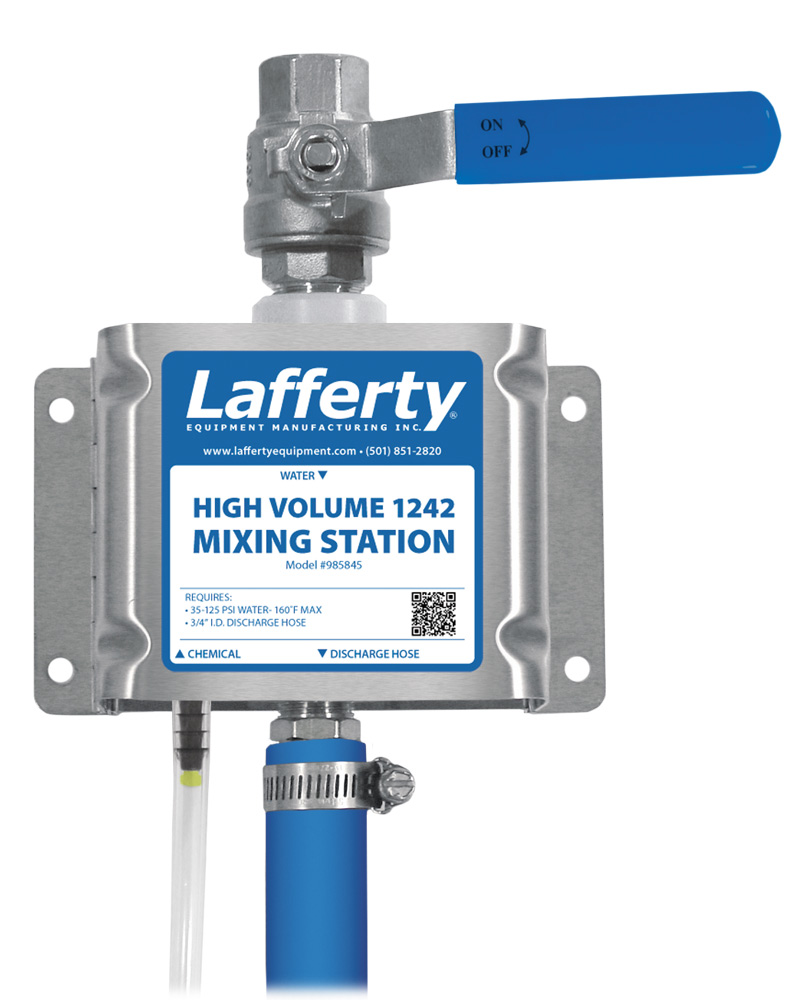

High Volume 1242 Mixing Station
General Purpose
Polypropylene Body
Proportion and dispense
Super High Volume
Venturi Dilution
Wall Mount / Stationary
The High Volume 1242 Mixing Station is a 12 GPM @ 40 PSI chemical proportioner for accurately diluting a chemical concentrate to the required ratio and for rapidly filling large containers with diluted, ready-to-use chemical solution. This venturi injection system uses standard city water pressure (35 - 125 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution. Ball valve activation allows for hands-free dispensing.
Key Features
- Eliminates manual mixing and optimizes chemical utilization, employee safety and labor efficiency
- Ball valve activation allows for hands-free dispensing
- Quickly fills floor scrubbers, tank foamers/sprayers or any large container at 12 GPM @ 40 PSI to minimize downtime
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Dilution ratio controlled with precision metering tips
- Draws chemical concentrate from any sized container
- Optional trigger gun or ball valve & wand
- Optional 2nd chemical pickup tube for stronger dilution ratios or more viscous chemicals (#491404-A)
- Available with a lower flow rate (#985835)
- See other chemical management systems in Catalog 9

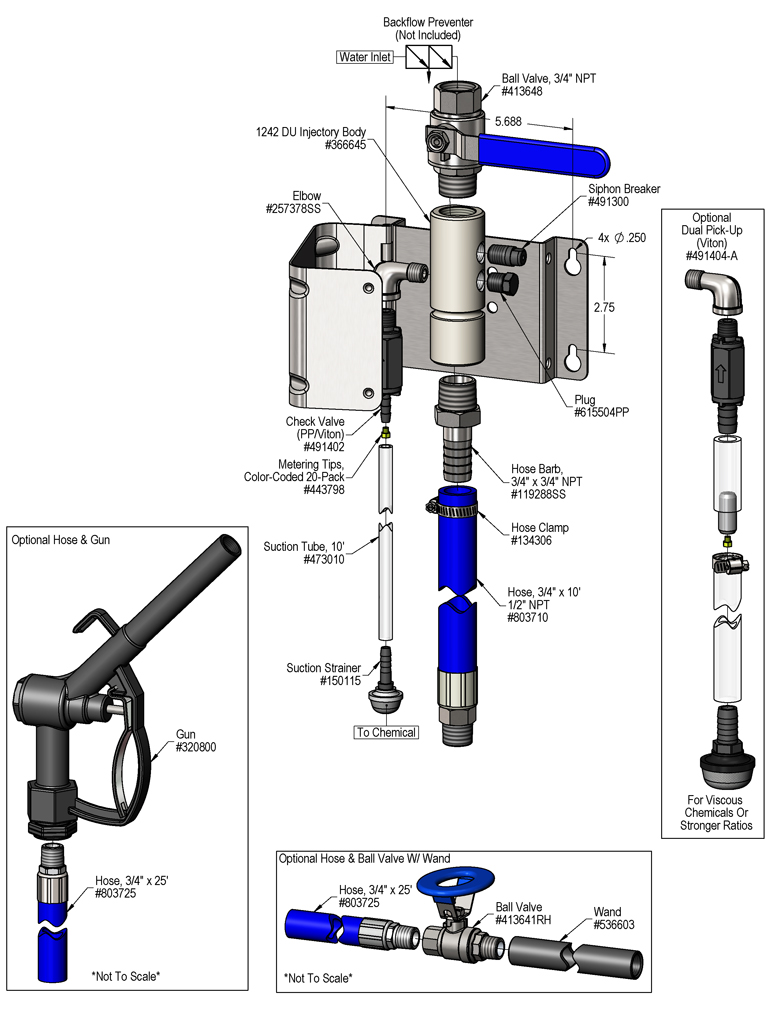

Includes
- Stainless steel mounting bracket
- Stainless steel activation ball valve
- Polypropylene injector body
- 20 color-coded precision metering tips to set dilution ratios
- 10' open flow discharge hose with 1/2" MPT hose-end fitting for optional attachments
Overview
Key Features
- Eliminates manual mixing and optimizes chemical utilization, employee safety and labor efficiency
- Ball valve activation allows for hands-free dispensing
- Quickly fills floor scrubbers, tank foamers/sprayers or any large container at 12 GPM @ 40 PSI to minimize downtime
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Dilution ratio controlled with precision metering tips
- Draws chemical concentrate from any sized container
- Optional trigger gun or ball valve & wand
- Optional 2nd chemical pickup tube for stronger dilution ratios or more viscous chemicals (#491404-A)
- Available with a lower flow rate (#985835)
- See other chemical management systems in Catalog 9
Includes
- Stainless steel mounting bracket
- Stainless steel activation ball valve
- Polypropylene injector body
- 20 color-coded precision metering tips to set dilution ratios
- 10' open flow discharge hose with 1/2" MPT hose-end fitting for optional attachments
