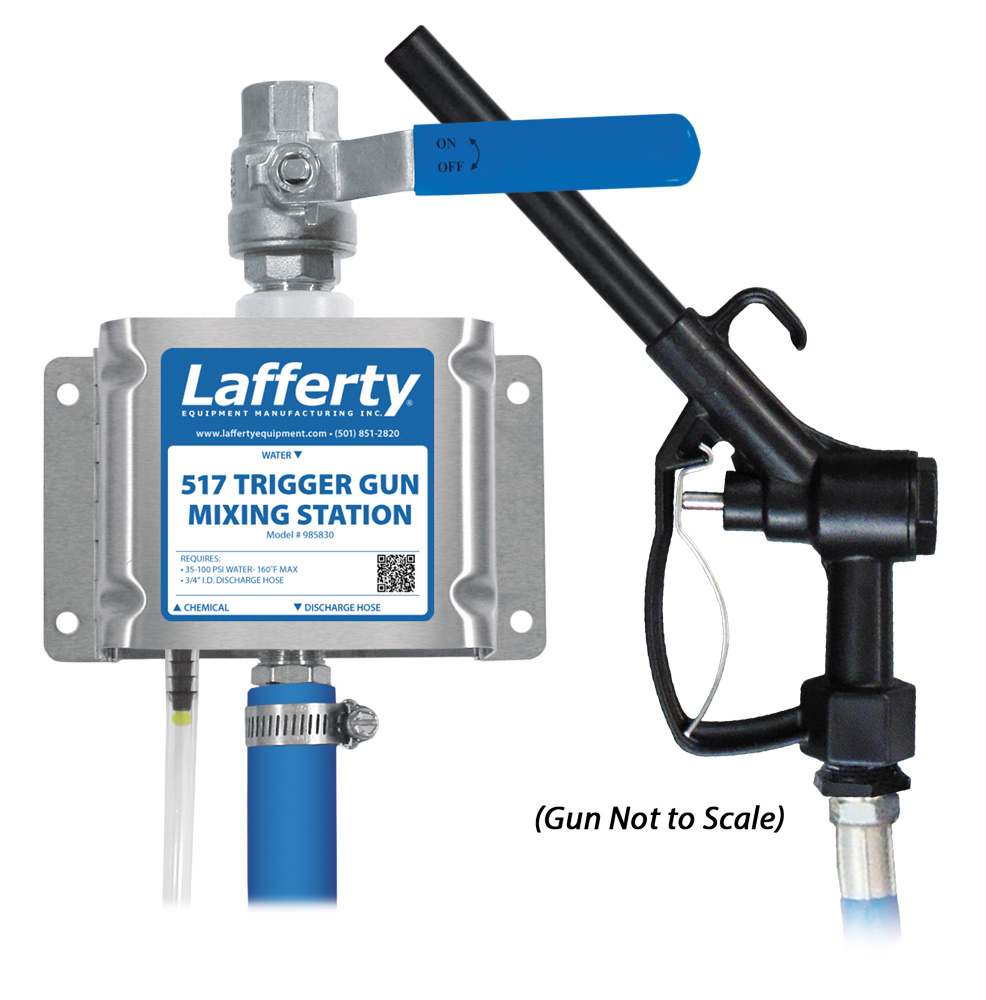

517 Trigger Gun Mixing Station
General Purpose
High Volume
Medium Volume
Polypropylene Body
Proportion and dispense
Venturi Dilution
Wall Mount / Stationary
The 517 Trigger Gun Mixing Station is a 5 GPM @ 40 PSI chemical proportioner for accurately diluting a chemical concentrate and filling containers with ready-to-use chemical solution. This venturi injection system uses standard city water pressure (35 - 100 PSI) to draw and blend chemical concentrate into the water stream. Trigger gun activation allows for hands-on controlled filling and automatic shutoff.
Key Features
- Eliminates manual mixing and optimizes chemical utilization, employee safety, and labor efficiency
- Trigger gun prevents the unit from running unattended, improves operator control, and minimizes dripping after shutoff
- Quickly fills floor scrubbers, tank foamers/sprayers or any larger container at 5 GPM @ 40 PSI to reduce downtime
- Extended length hose to fill large equipment at a distance
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Industrial-strength design holds up in tough environments
- Draws chemical concentrate from any sized container
- Available with a higher flow rate (#985835)
- See other chemical management systems in Catalog 9

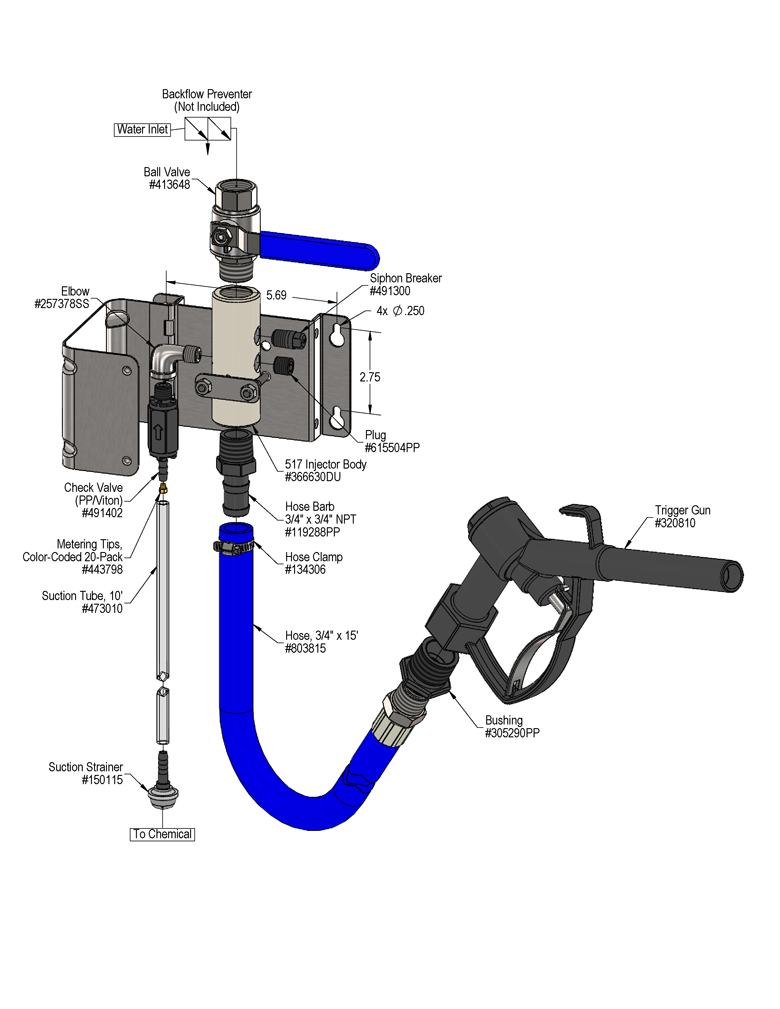

Includes
- Stainless steel mounting bracket
- Stainless steel inlet ball valve
- Machined polypropylene injector body
- 20 color-coded precision metering tips to set dilution ratios
- 15' discharge hose
- Polypropylene trigger gun with stainless steel and Viton internal components
Overview
Key Features
- Eliminates manual mixing and optimizes chemical utilization, employee safety, and labor efficiency
- Trigger gun prevents the unit from running unattended, improves operator control, and minimizes dripping after shutoff
- Quickly fills floor scrubbers, tank foamers/sprayers or any larger container at 5 GPM @ 40 PSI to reduce downtime
- Extended length hose to fill large equipment at a distance
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Industrial-strength design holds up in tough environments
- Draws chemical concentrate from any sized container
- Available with a higher flow rate (#985835)
- See other chemical management systems in Catalog 9
Includes
- Stainless steel mounting bracket
- Stainless steel inlet ball valve
- Machined polypropylene injector body
- 20 color-coded precision metering tips to set dilution ratios
- 15' discharge hose
- Polypropylene trigger gun with stainless steel and Viton internal components
