Pail/Jug Mount Uni-Body Mixing Station
Drum Mounted
General Purpose
Medium Volume
Polypropylene Body
Portable
Proportion and dispense
Venturi Dilution

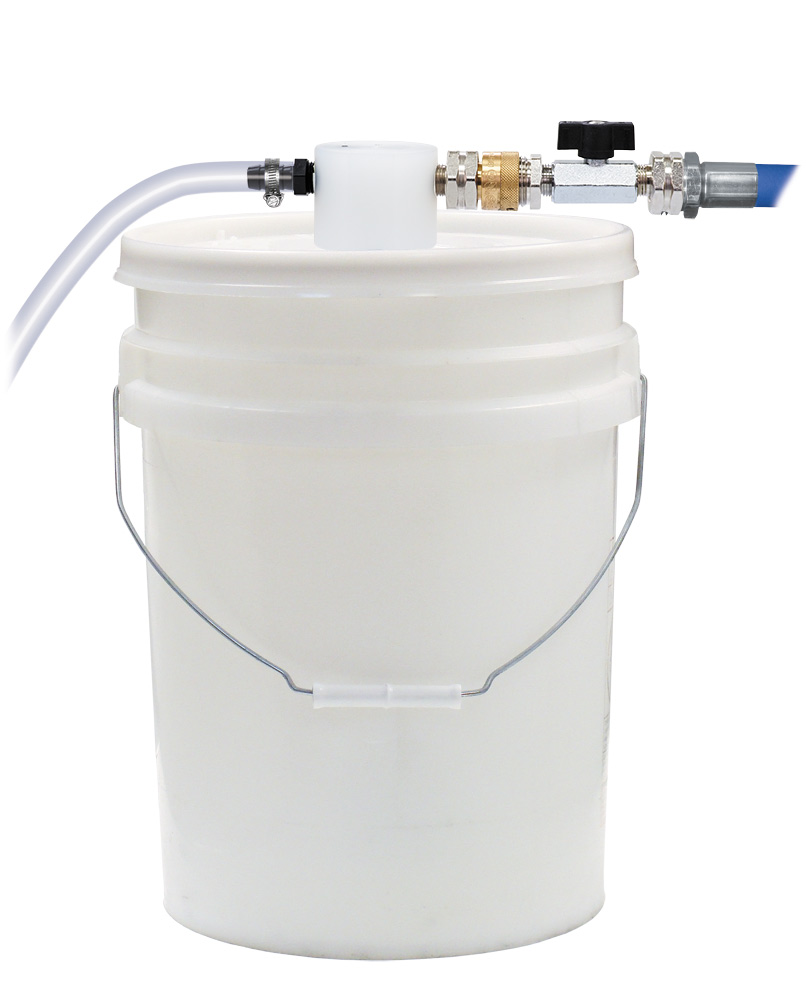

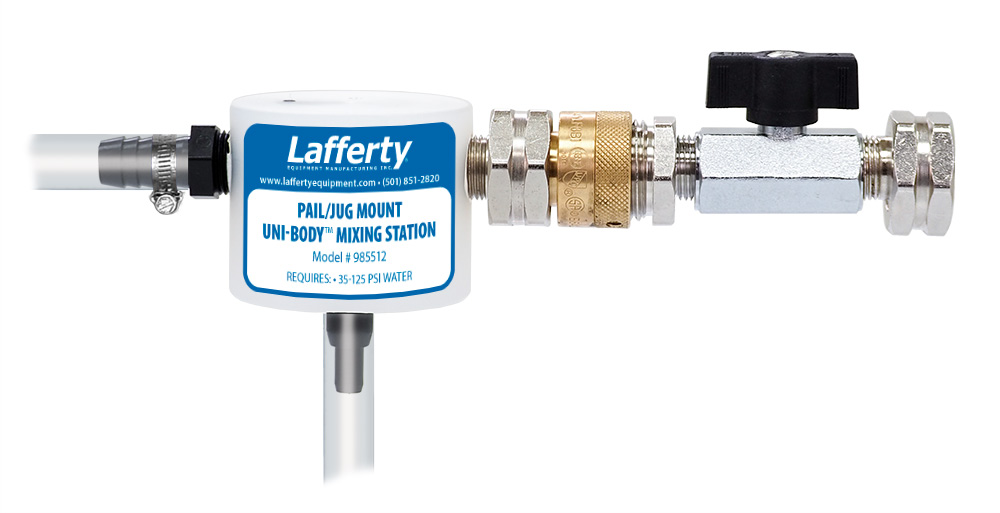

The Pail/Jug Mount Uni-Body Mixing Station is a convenient container-mounted chemical proportioner for diluting chemical concentrates and filling any size container with ready-to-use chemical solution. This venturi injection system uses standard city water pressure (35 - 125 PSI) to draw chemical concentrate directly from the container and blend it into the water stream to create an accurately diluted solution. Ball valve activation allows for hands-free dispensing.
Key Features
- Screws onto, and dispenses directly from, chemical concentrate containers for increased efficiency
- Eliminates manual mixing and optimizes chemical utilization, employee safety and labor efficiency
- Ball valve activation allows for hands-free dispensing
- High flow rate (4 GPM @ 40 PSI) quickly fills larger containers
- Chemical resistant wetted components ensure outstanding performance with minimal maintenance - machined, not molded!
- Dilution ratio controlled with precision metering tips
- Easy to set up - no tools or mounting hardware required
- Fits 1-gallon jugs, pull-up spouts on 5-gallon pails, or any container with 38mm OD threads
- Available with lower flow rates (request at time of order)
- Available for coarse/fine drum bung threads (#985500)
- Available as a wall-mounted unit (#981100, 985100)
- See Lafferty chemical management systems in Catalog 9

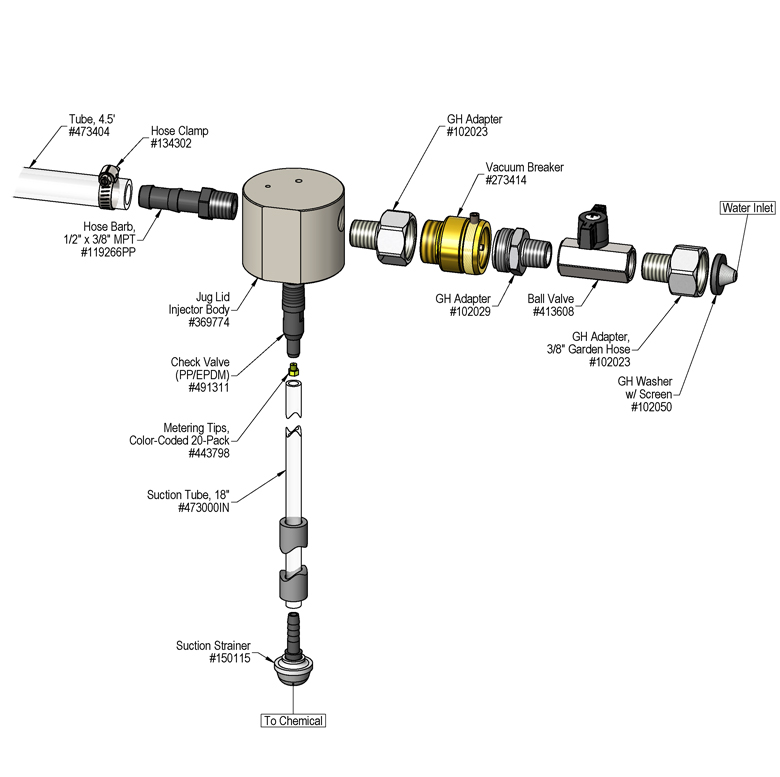

Includes
- Water inlet ball valve
- Integrated brass hose connection vacuum breaker
- Machined polypropylene injector body (high flow)
- 18" chemical suction tube with strainer
- 20 color-coded metering tips for setting dilution ratios
- 4.5' open flow discharge tube
