Gemini™ High Flow Satellite Mixing Station
Chemical Management
Chemical Mixing

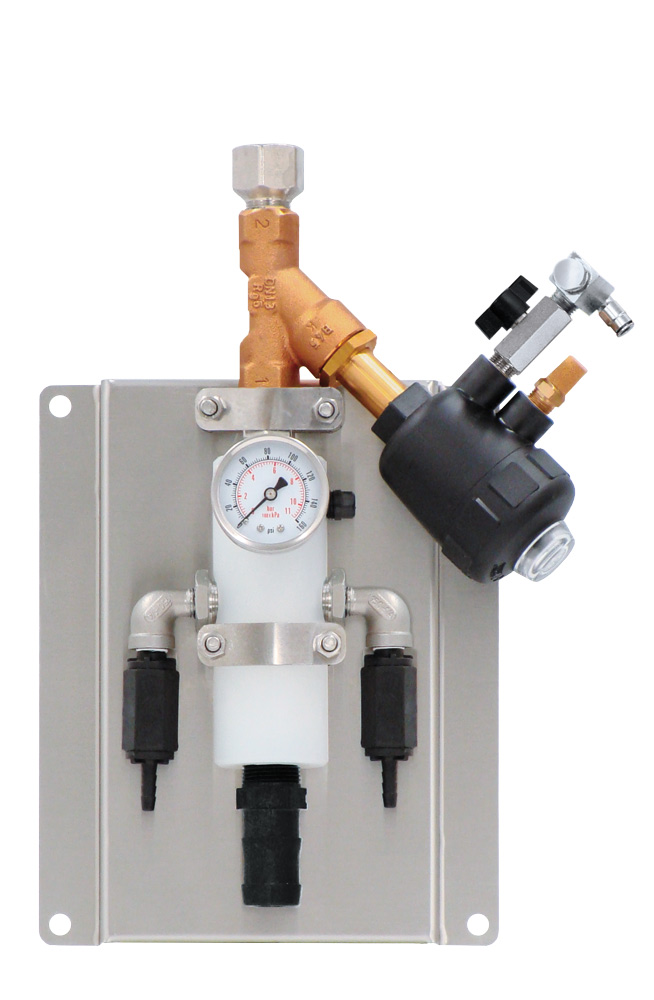

The Gemini™ High Flow Satellite Mixing Station is a 7 GPM @ 40 PSI chemical
proportioner that will simultaneously dilute and blend two chemical concentrates into one accurately diluted solution. When the air-activated water solenoid is opened by an Air Level Master (sold separately) this
venturi injection system uses standard city water pressure (35 -
125 PSI) to draw and blend 2 chemical concentrates into the water stream
independently so that the chemicals never mix until they are diluted. The ready-to-use solution is
quickly dispensed into a paired Air Level Master Tank (sold separately)
or a user-supplied tank. Use multiple Satellite Mixing
Stations to refill the tank faster.
Key Features
- The unique Gemini™ "double venturi" injection system combines two completely separated venturis in one injector body to draw 2 chemical concentrates into the water stream independently so that the chemicals never mix until they are diluted
- Flow rate of 7 GPM @ 40 PSI
- Air-activated water solenoid opens when it receives a pilot signal from an Air Level Master (or other control device)
- Dispenses into a paired Air Level Master tank or any user-supplied tank
- Use multiple Satellite Mixing Stations to refill the tank faster and keep up with demand
- Eliminates manual mixing and optimizes chemical utilization, employee safety and labor efficiency
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Dilution ratios are controlled independently for each chemical using precision metering tips
- Draws chemical concentrate from any sized container
- Available for a single chemical (#985885)
- See other chemical management systems in Catalog 9

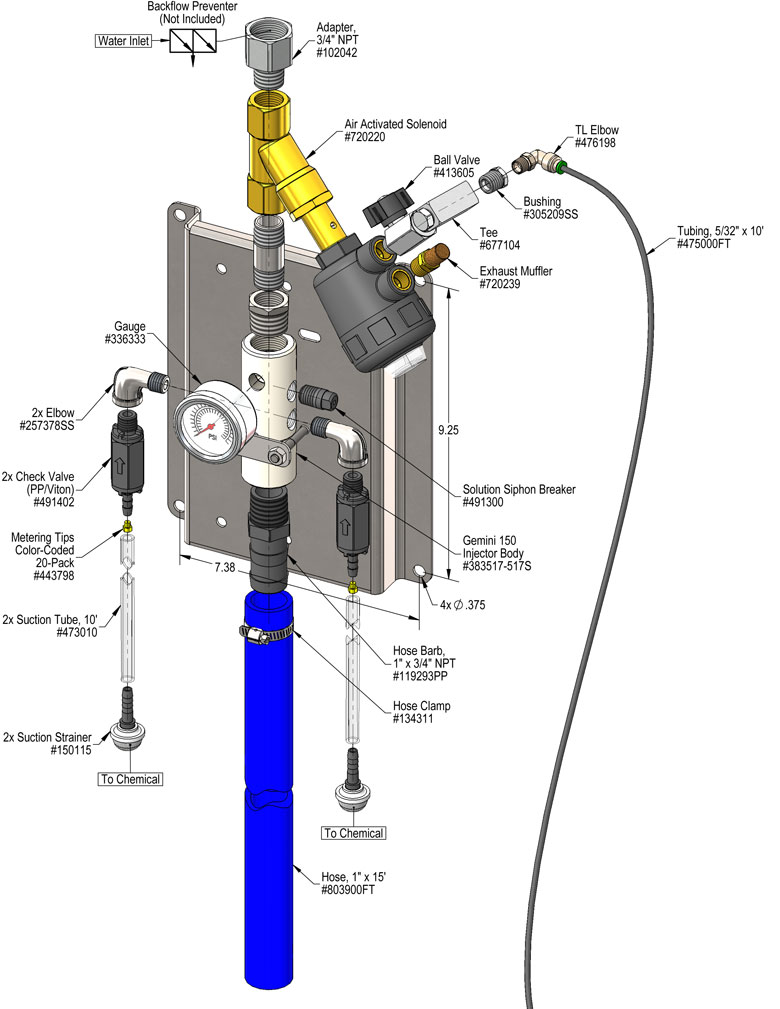

Includes
- Stainless steel mounting plate
- Air-activated water solenoid with 5/32" tube-lock fitting
- 10' of 5/32" airline tubing
- Machined polypropylene Gemini™ injector body
- Water pressure gauge
- 20 color-coded precision metering tips
- 15' open flow discharge hose
