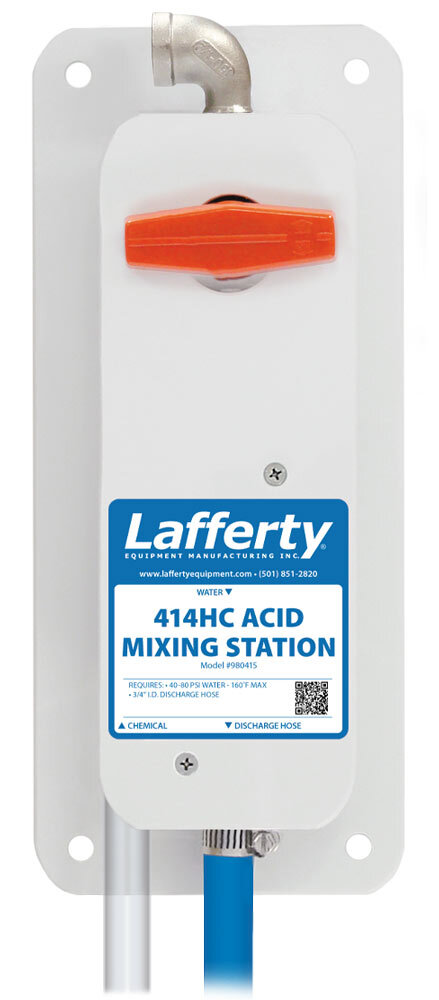

414HC Acid Mixing Station
Acid / Corrosive Systems
Aluminum Brightening
Concrete Removal
HC (High Concentrate)
Medium Volume
Polypropylene Body
Proportion and dispense
Venturi Dilution
Wall Mount / Stationary
The 414HC Acid Mixing Station has a water flow rate of 4 GPM @ 40 PSI and is a "high concentrate" chemical proportioner for diluting highly corrosive chemicals, such as those used to remove concrete and for aluminum brightening. This acid-resistant venturi injection system uses city water pressure (40 - 80 PSI) to draw and blend a high concentration of acid into the water stream to create up to a 1:1 ratio for dispensing into large containers.
Key Features
- Eliminates manual mixing and optimizes chemical utilization, employee safety and labor efficiency
- Achieves strong dilution ratios, up to 1:1 (with water thin chemicals)
- Water flow rate of 4 GPM @ 40 PSI for filling larger sized containers
- Ball valve activation allows for hands-free dispensing
- Corrosion-resistant wetted components ensure years of outstanding performance with minimal maintenance
- Industrial-strength design holds up in tough environments
- Draws chemical concentrate from any sized container
- Weaker ratios are controlled by metering plugs
- See other chemical management systems in Catalog 9

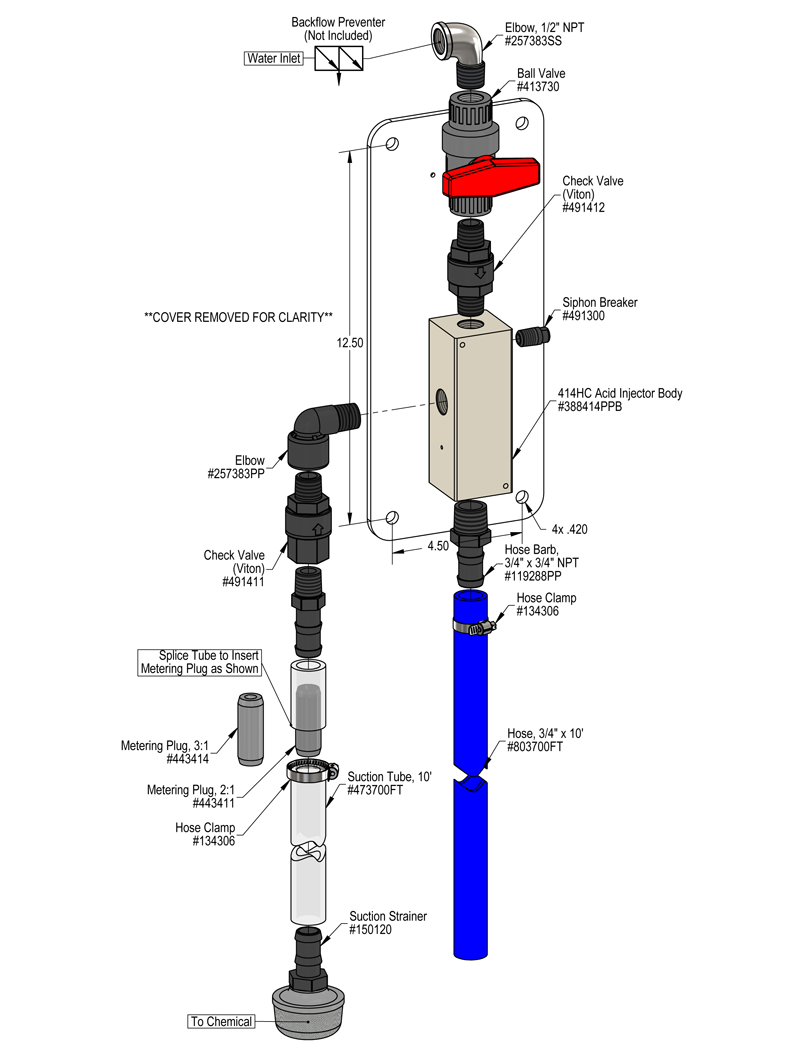

Includes
- Polypropylene mounting bracket and cover
- PVC inlet ball valve
- Machined polypropylene injector body
- 2 metering plugs to set 2:1 & 3:1 dilution ratios
- 10' open flow discharge hose
Loading related posts...
Overview
Key Features
- Eliminates manual mixing and optimizes chemical utilization, employee safety and labor efficiency
- Achieves strong dilution ratios, up to 1:1 (with water thin chemicals)
- Water flow rate of 4 GPM @ 40 PSI for filling larger sized containers
- Ball valve activation allows for hands-free dispensing
- Corrosion-resistant wetted components ensure years of outstanding performance with minimal maintenance
- Industrial-strength design holds up in tough environments
- Draws chemical concentrate from any sized container
- Weaker ratios are controlled by metering plugs
- See other chemical management systems in Catalog 9
Includes
- Polypropylene mounting bracket and cover
- PVC inlet ball valve
- Machined polypropylene injector body
- 2 metering plugs to set 2:1 & 3:1 dilution ratios
- 10' open flow discharge hose
