2-Way 105HC Mixing Station
General Purpose
HC (High Concentrate)
Low Volume
Polypropylene Body
Proportion and dispense
Venturi Dilution
Wall Mount / Stationary

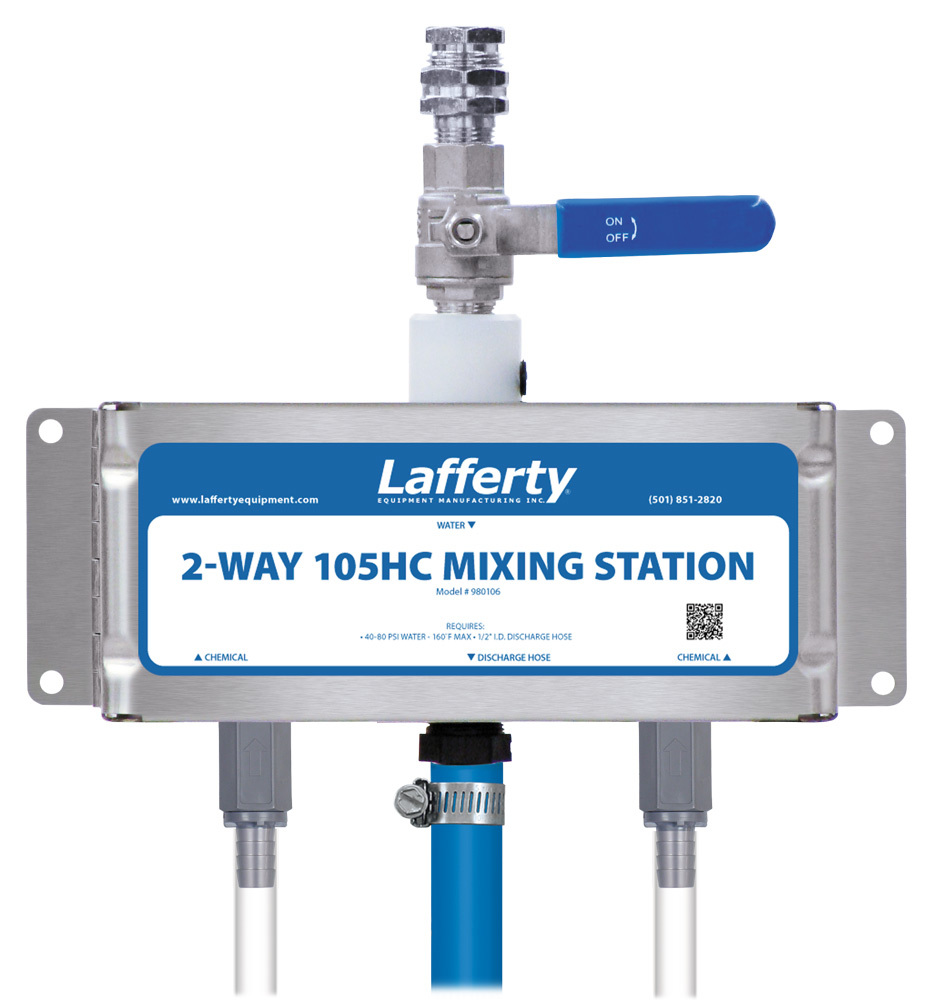

The 2-Way 105HC Mixing Station has a water flow rate of 1 GPM @ 40 PSI and is a "high concentrate" 2-chemical proportioner for filling smaller sized containers with strong solutions. This venturi injection system uses city water pressure (40 - 80 PSI) to draw and blend a high concentration of chemical into the water stream to create up to 1:1 dilution ratios. Use ball valves to switch between chemicals. Ball valve activation allows for hands-free dispensing.
Key Features
- Achieves strong dilution ratios, up to 1:1 (with water thin chemicals)
- Weaker ratios controlled by precision metering tips & plugs
- Designed to blend 2 different chemicals, or 2 different concentrations of the same chemical
- Water flow rate of 1 GPM @ 40 PSI for filling smaller containers and equipment
- Eliminates manual mixing and optimizes chemical utilization, employee safety and labor efficiency
- Ball valve activation allows for hands-free dispensing
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Industrial-strength design holds up in tough environments
- Draws chemical concentrate from any sized container
- Available for just one chemical (#980105)
- See other chemical management systems in Catalog 9

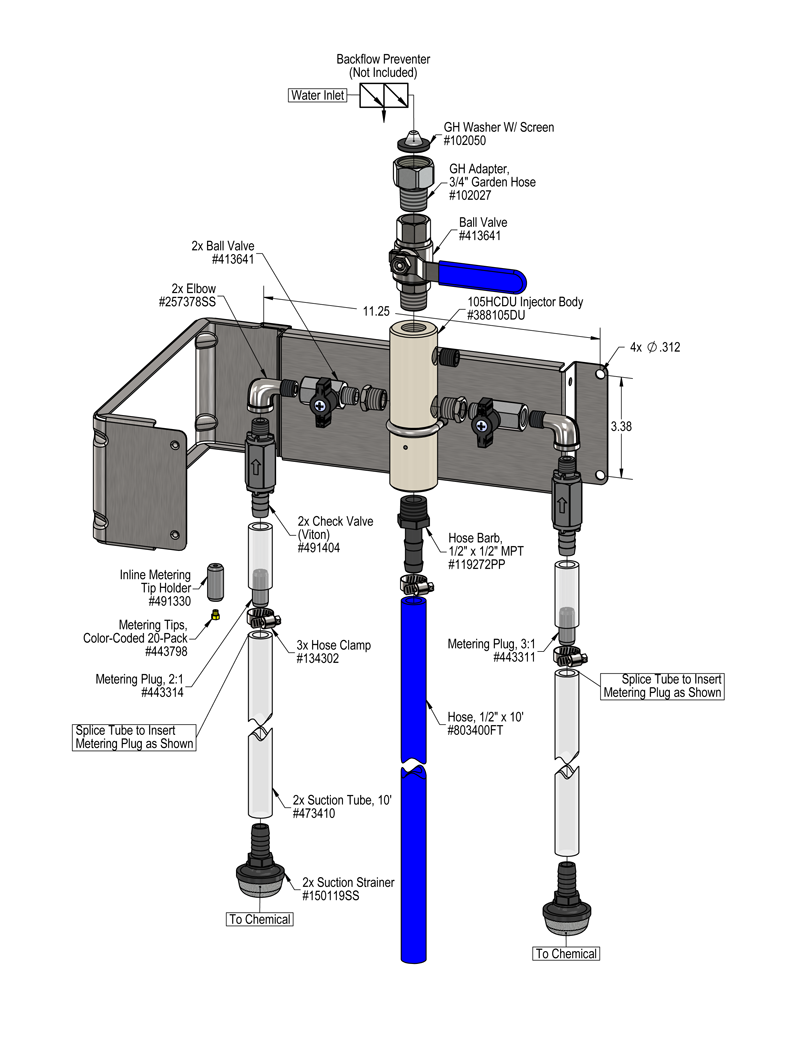

Includes
- Stainless steel mounting bracket
- Stainless steel inlet ball valve
- Chemical ball valves
- Machined polypropylene injector body
- 20 color-coded precision metering tips to set dilution ratios
- Metering plugs to set 2:1 and 3:1 dilution ratios
- 10' open flow discharge hose
Loading related posts...
Overview
Key Features
- Achieves strong dilution ratios, up to 1:1 (with water thin chemicals)
- Weaker ratios controlled by precision metering tips & plugs
- Designed to blend 2 different chemicals, or 2 different concentrations of the same chemical
- Water flow rate of 1 GPM @ 40 PSI for filling smaller containers and equipment
- Eliminates manual mixing and optimizes chemical utilization, employee safety and labor efficiency
- Ball valve activation allows for hands-free dispensing
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Industrial-strength design holds up in tough environments
- Draws chemical concentrate from any sized container
- Available for just one chemical (#980105)
- See other chemical management systems in Catalog 9
Includes
- Stainless steel mounting bracket
- Stainless steel inlet ball valve
- Chemical ball valves
- Machined polypropylene injector body
- 20 color-coded precision metering tips to set dilution ratios
- Metering plugs to set 2:1 and 3:1 dilution ratios
- 10' open flow discharge hose
