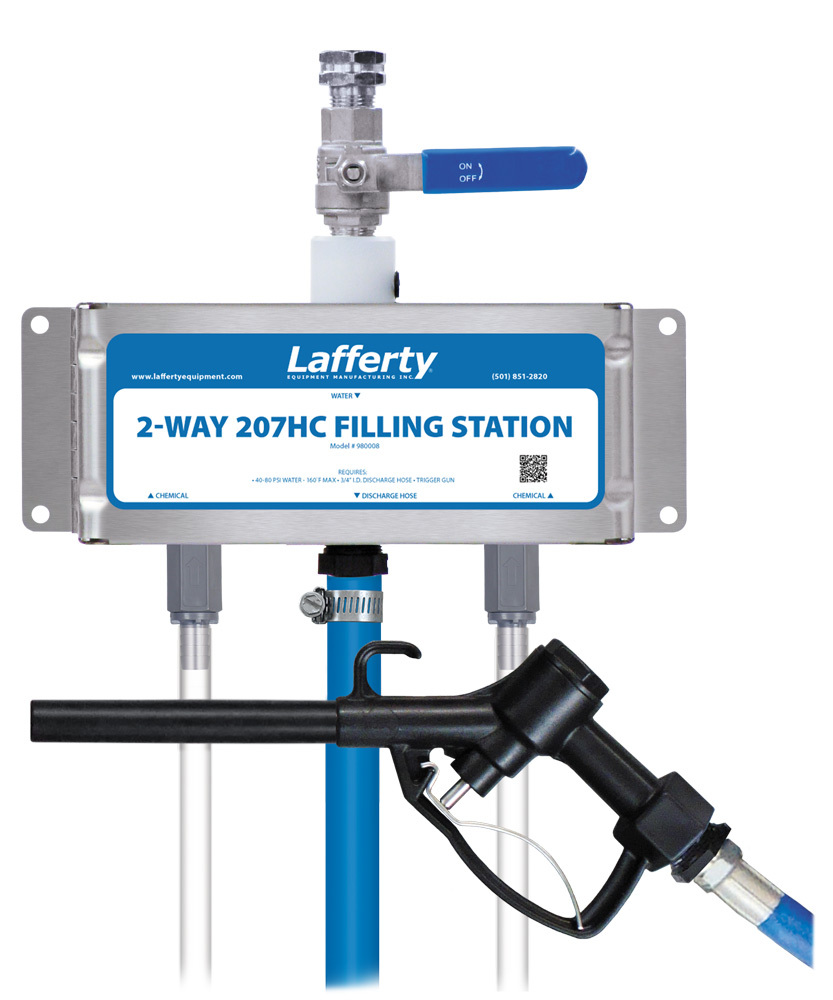

2-Way 207HC Filling Station
General Purpose
HC (High Concentrate)
Medium Volume
Polypropylene Body
Proportion and dispense
Venturi Dilution
Wall Mount / Stationary
The 2-Way 207HC Filling Station has a water flow rate of 2 GPM @ 40 PSI and is a "high concentrate" 2-chemical proportioner for filling any sized containers with strong solutions using a trigger gun. This venturi injection system uses city water pressure (40 - 80 PSI) to draw and blend a high concentration of chemical into the water stream to create up to 1:1 dilution ratios.
Key Features
- Achieves strong dilution ratios, up to 1:1 (with water thin chemicals)
- Weaker ratios are controlled by precision metering tips
- Designed to apply 2 different chemicals or 2 different concentrations on the same chemical
- Water flow rate of 2 GPM @ 40 PSI for filling any sized container or equipment
- Eliminates manual mixing and optimizes chemical utilization, employee safety and labor efficiency
- Dispenses through a trigger gun to prevent the unit from running unattended
- Extended length hose to fill large equipment at a distance
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Industrial-strength design holds up in tough environments
- Draws chemical concentrate from any sized container
- Available with a lower flow rate (#980006)
- See other chemical management systems in Catalog 9

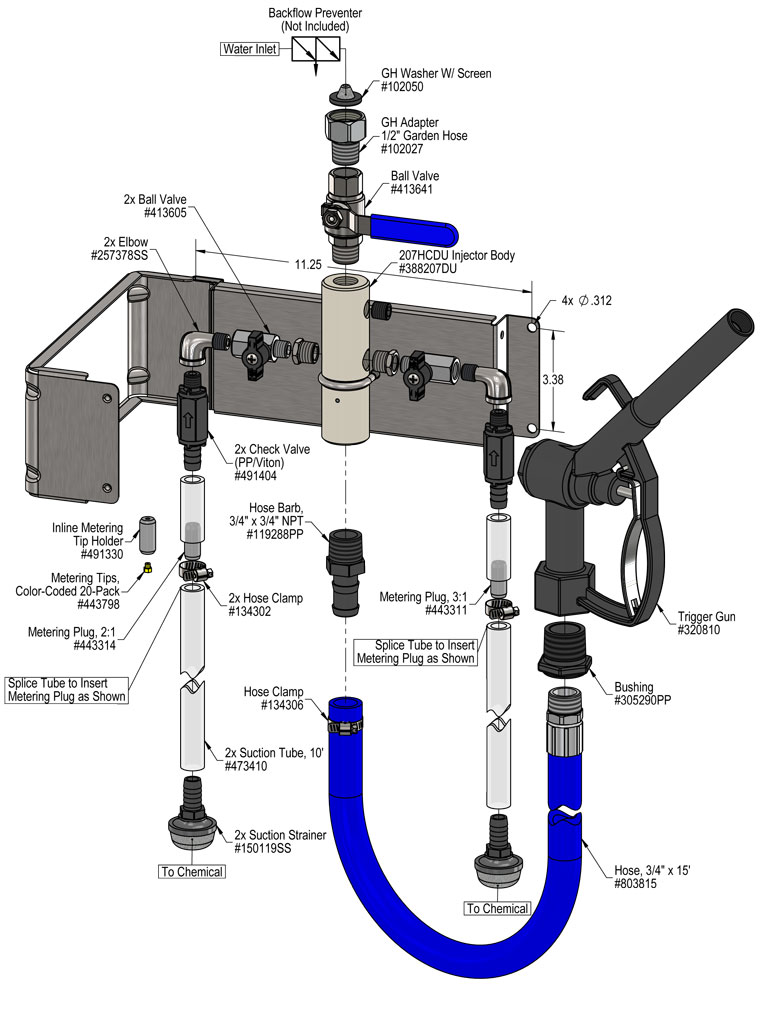

Includes
- Stainless steel mounting bracket
- Stainless steel inlet ball valve
- Machined polypropylene injector body
- Chemical ball valves
- 20 color-coded precision metering tips to set dilution ratios
- 15' discharge hose
- Polypropylene trigger gun with stainless steel and Viton internal components
