DART™ EP-LM Spray System With 20 Gallon Level Master™
Asphalt Release
Drive Through
Drive Through Systems
Electricity (120V)
Low/Fluctuating Water Pressure
Programmable Systems
Push Button
Sanitize / Spray
Wall Mount / Stationary

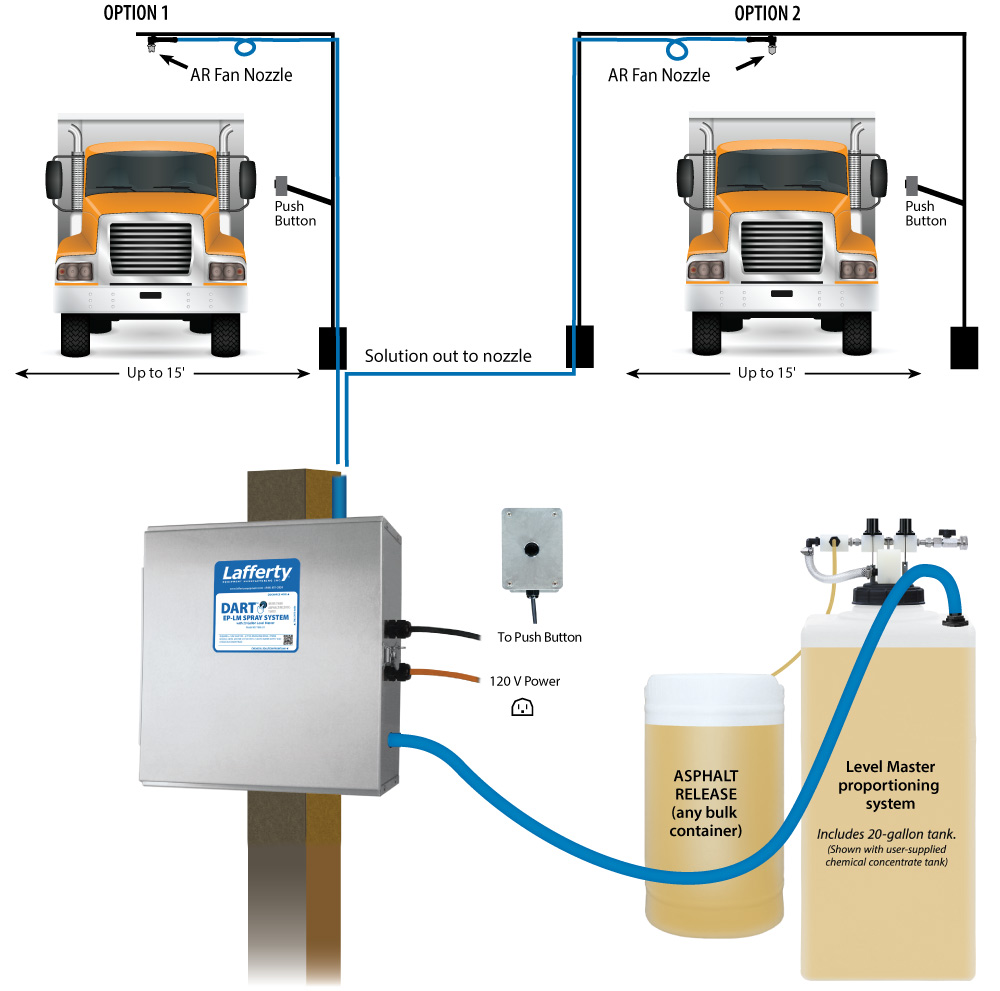

The DART™ EP-LM Spray System is a push button activated, time delayed, asphalt release applicator that mounts to a user-supplied drive-though arch for spraying asphalt release agent onto truck beds. This system uses an electric pump to draw ready-to-use chemical solution from the included 20 Gallon Level Master™ tank, which maintains a constant supply of solution. When the system is activated, a delay timer allows the driver to position the truck under the spray nozzle before applying release agent. When run time expires, the system shuts down and resets.
Key Features
- Designed to spray asphalt release chemicals on to truck beds from a nozzle that attaches to an existing drive-through spray bar
- The electric pump draws ready-to-use chemical solution from the 20 Gallon Level Master™ which automatically maintains a constant supply of solution
- The push button activated, adjustable, single-shot timer will delay for up to 60 seconds, allowing the driver to get in position, and then apply chemical for up to 60 seconds before shutting off
- The driver remains in his cab and avoids the risk of slip-and-fall injury and chemical waste
- Evenly coats the truck bed in just seconds, reducing run-off and chemical waste
- The Level Master™ achieves a wide range of dilution ratios using city water pressure and precision metering tips
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- See other Lafferty asphalt release equipment and industrial chemical applicators in Catalog 8

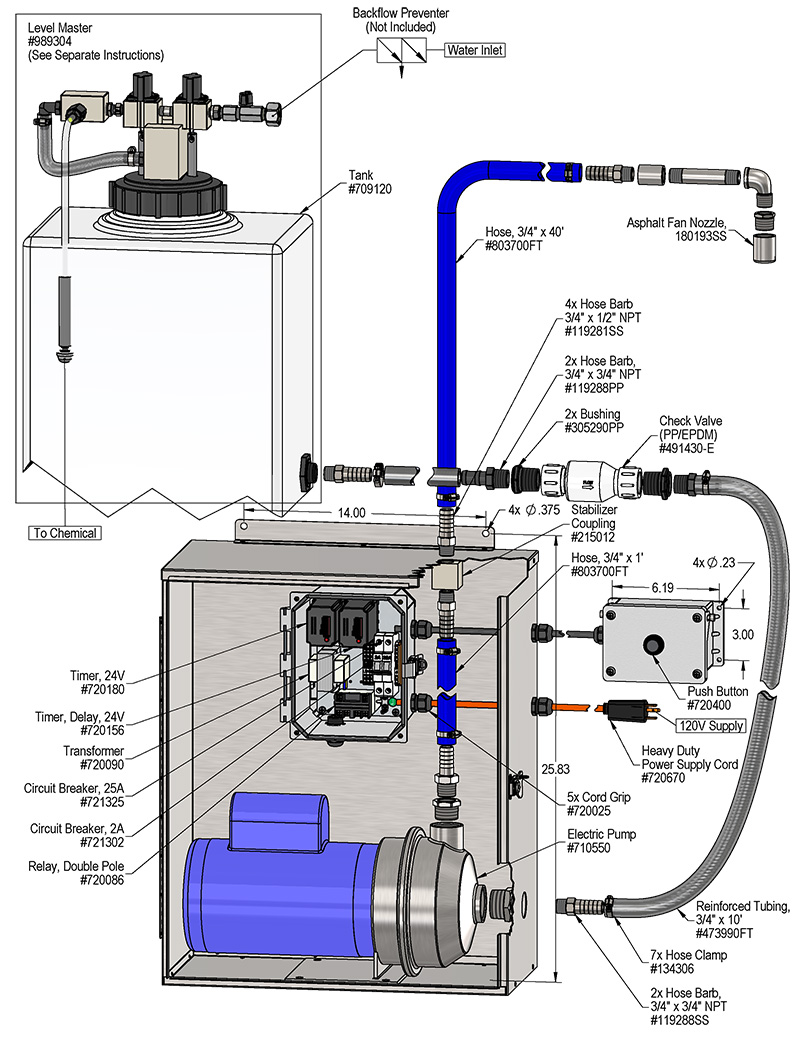

- Lockable, stainless steel pump enclosure
- 110V stainless steel electric pump
- Control box with delay/run timers & remote push button
- 20 Gallon Level Master™ system
- 40' discharge hose with custom fan spray nozzle
