Timed Trench Foam Sanitizer
Air Assisted
City Pressure
Drain / Trench Sanitation
Electricity (120V)
Foam
High Volume
Medium Volume
Polypropylene Body
Programmable Systems
Timed Delay
Venturi Dilution
Wall Mount / Stationary

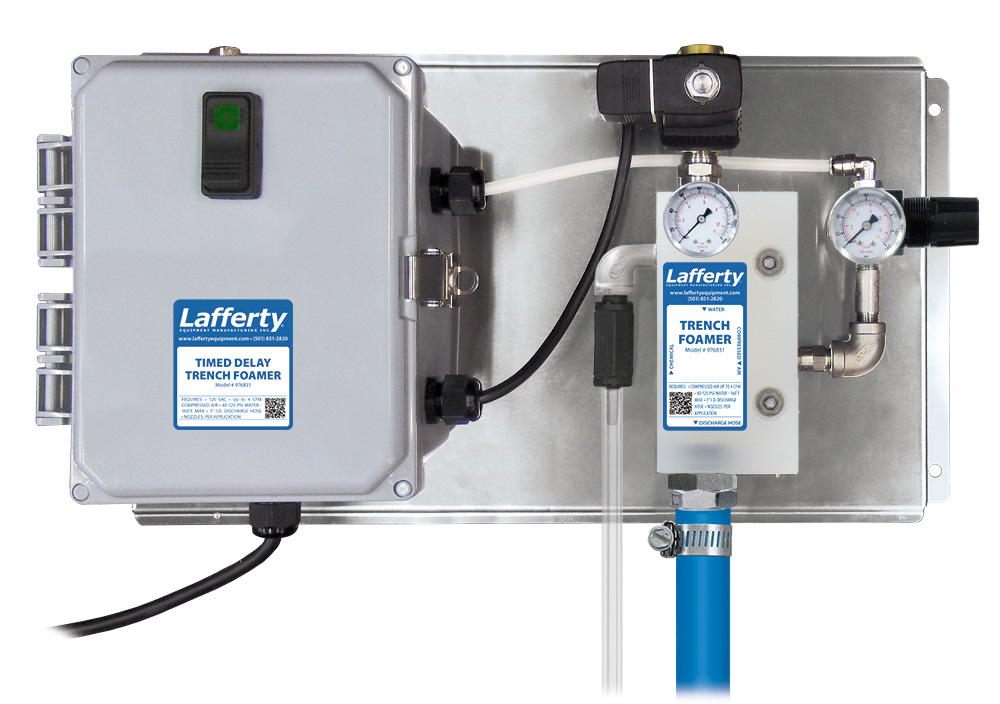

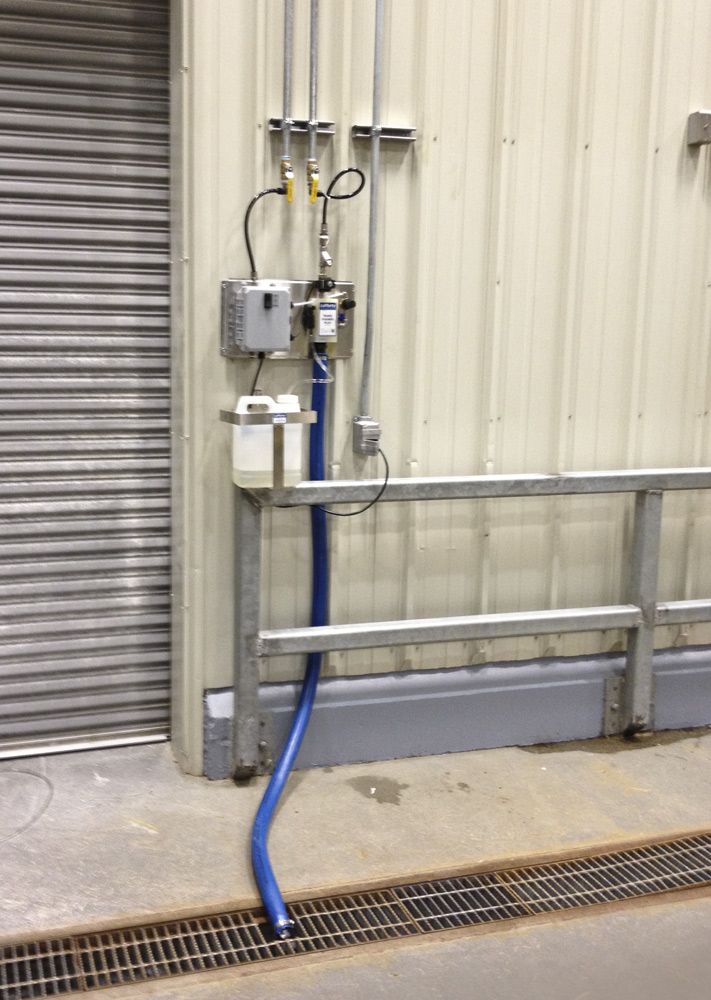

The Timed Trench Foam Sanitizer is an automated system for creating rich, thick foam sanitizer at regular, timed intervals, and feeding it to a foam bar located in the trench drain that needs to be sanitized. This venturi foamer uses city water pressure (35 - 125 PSI) to draw and blend chemical concentrate into the water stream and creates a wide range of dilution ratios. Rich, clinging foam is created by injecting compressed air into the solution to greatly expand volume and coverage ability. The system timer is user-programmable to meet the needs of any facility. Custom foam bars (sold separately) accommodate trench drains from 10' to 48' in length.
.jpg)
.jpg?width=756&height=1000&name=976831__photo__TrenchFoam_(action).jpg)
Key Features

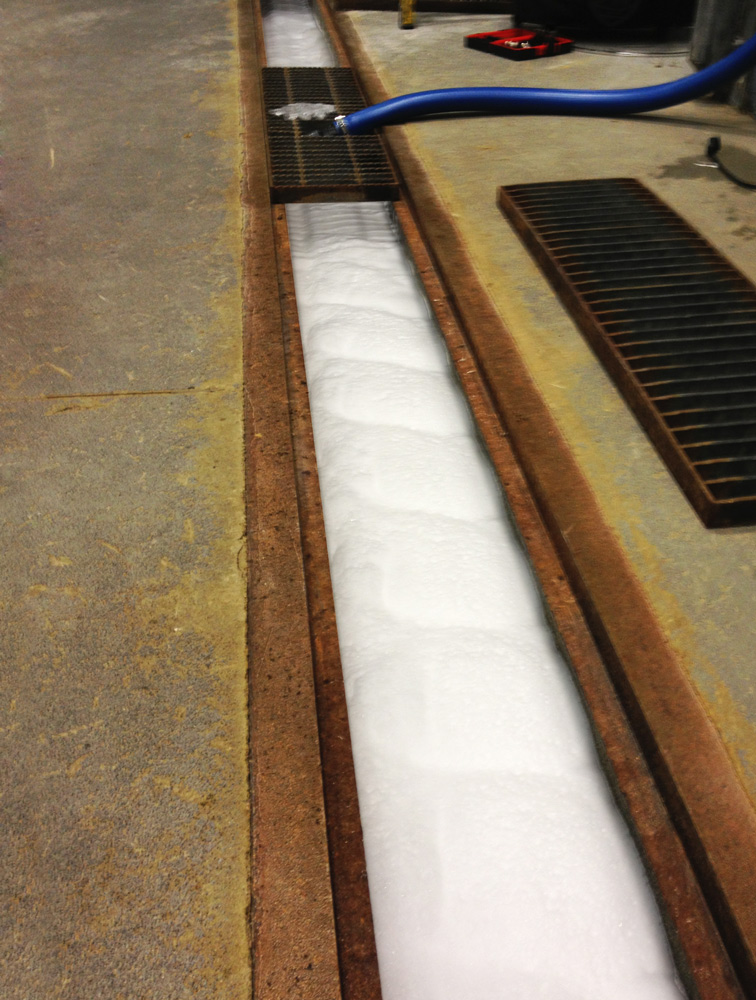

- Fills floor drainage trenches with foam to ensure complete sanitation
- Customized to feed foam bars from 10' - 48' long (specify length at time of order)
- Creates rich, clinging foam which increases chemical contact time and effectiveness
- Adjustable foam consistency (wet/dry)
- Adjustable recycling timer controls the run time and delay time
- Reduces labor costs associated with manually foaming drains
- Chemical resistant wetted components ensure durability and years of reliable performance
- Foam bars and hoses are offered separately "by the foot" (specify length)
- See other cross-contamination control systems in Catalog 6

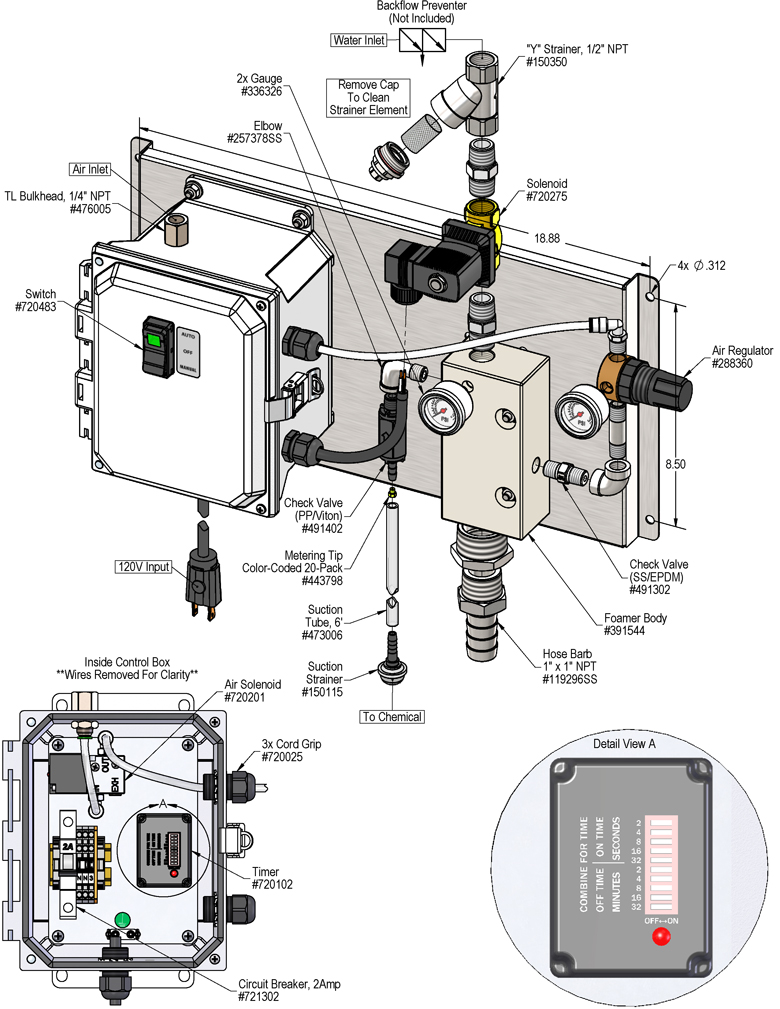

Includes
- Stainless steel mounting plate
- 120VAC timer control box
- Machined polypropylene foamer body
- 20 color-coded precision metering tips to set dilution ratios
- 1" discharge hose barb
