Satellite PF Entryway XV Foam Sanitizer
Air Assisted
Entryway Sanitation
Foam
High Volume
N/A: Pump Fed Central Systems
Polypropylene Body
Pump Fed
Satellite
Wall Mount / Stationary

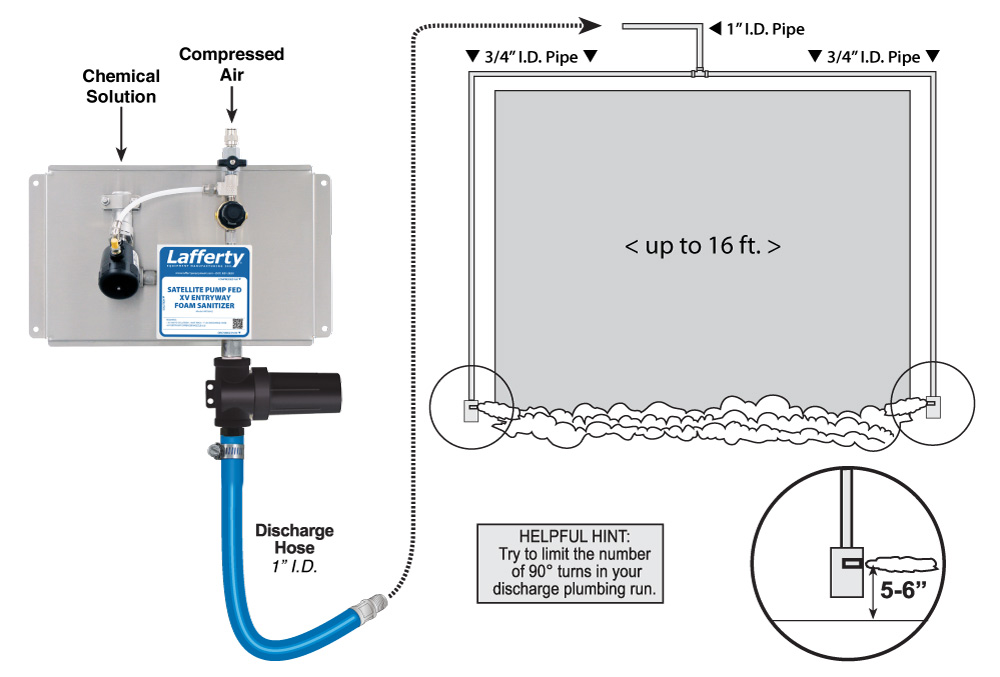

The Pump Fed Satellite Entryway HV Foam Sanitizer is an automated foam applicator for projecting sanitizing chemicals on to floors of 8'-16' wide/overhead doors to prevent cross contamination. When activated, this system is fed with RTU chemical solution from a central chemical feed system. Rich, clinging foam is created by injecting compressed air into the solution to greatly increase volume and coverage ability. Foam is then projected through the two discharge hoses and HV Spreader™ nozzles. Up to 10 Satellite units are activated and operated by compressed air from a timed Entryway Satellite Controller - no electrical connection is required at the entryway location. All units will activate and deactivate at the same time.
Key Features
- Applies a layer of rich, clinging foam to entryway floors to prevent cross-contamination
- Designed for 8'-16' wide/overhead doors
- Fed with ready to use chemical solution from a central chemical pumping system
- The two unique HV Spreader™ nozzles lay a combined foam pattern 8'-16' across and up to 10' wide to ensure all foot traffic and cart wheels are fully exposed to the sanitizer
- Automatic activation and shutoff for use in moderate to high traffic areas
- Activated and operated by compressed air from the Satellite Controller - no electrical connection required at the entryway door.
- Adjustable foam consistency (wet/dry)
- Chemical resistant wetted components ensure durability and years of reliable service with minimal maintenance
- Choice of two Satellite Controllers:
- Timed Entryway Satellite Controller - An adjustable recycle timer applies foam at regular, timed intervals.
- PLC Jazz Entryway Satellite Controller - A pre-programmed PLC Controller allows variable settings for hours of operation and peak traffic demands.
- Available for smaller doors (#976640, 976641)
- See Catalog 6 for other entryway configurations

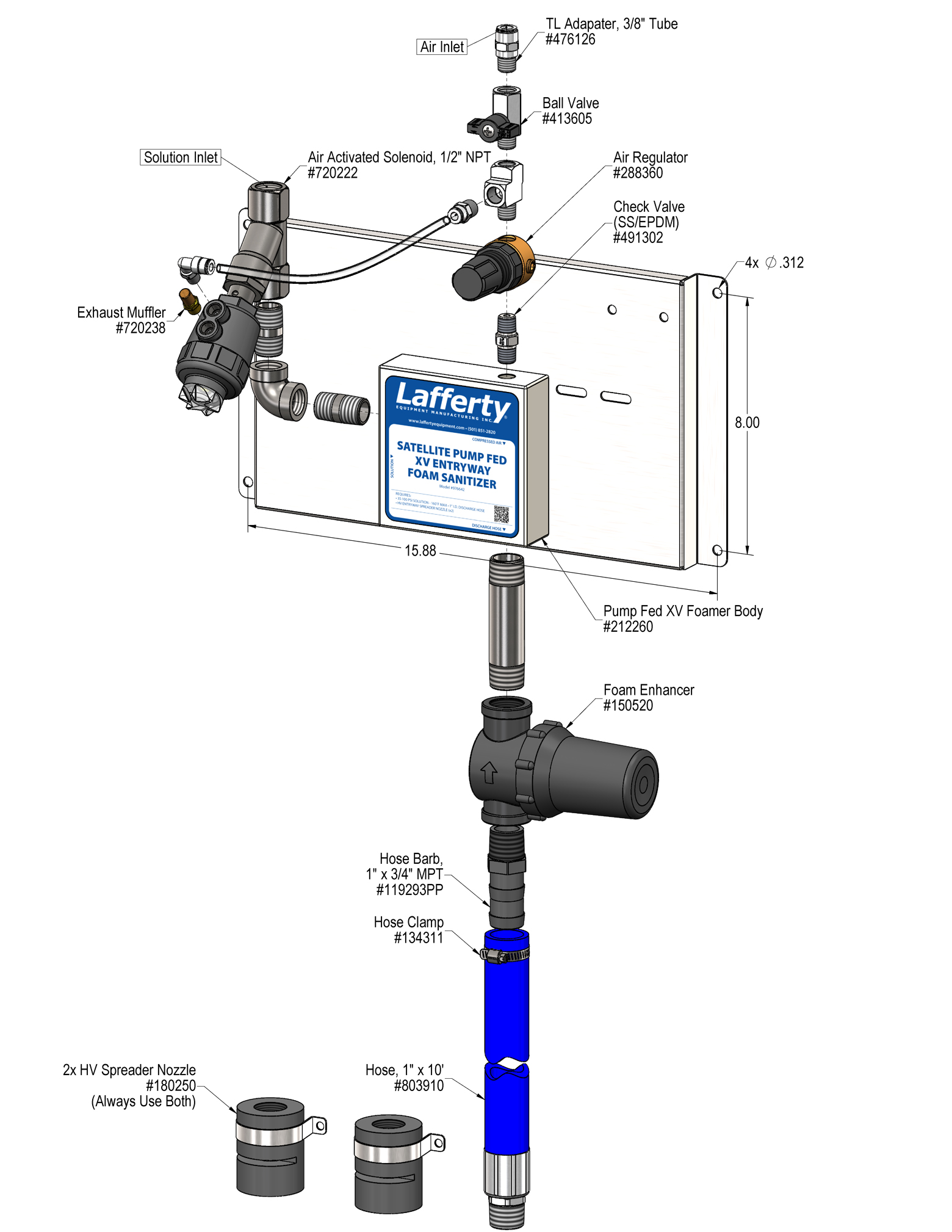

- Stainless steel mounting plate
- Stainless steel solution activation solenoid
- Machined polypropylene foamer body
- Foam enhancer
- 10' discharge hose
- (2) HV Entryway Spreader™ nozzles (must use both)
